Remove/install fan unit - AR20.40-P-5050MM
ENGINES 157, 278 in MODEL 216
ENGINES 157, 276, 278 in MODEL 221

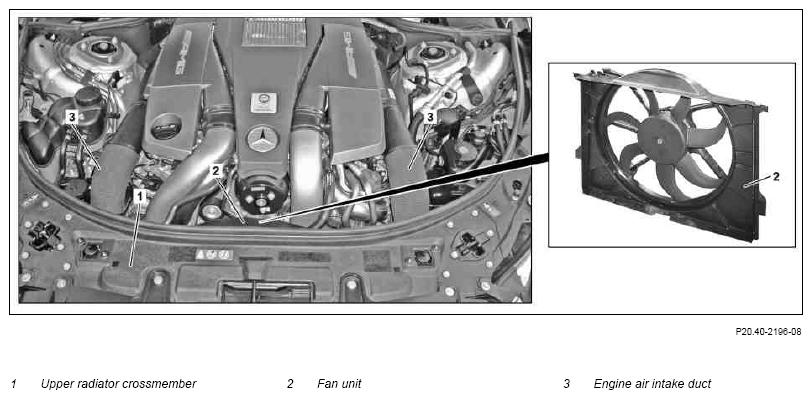

Shown on engine 157
MODIFICATION NOTES
| 1.9.10 | Unclip oil line for P/S on fan unit - added |
| Remove/install | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, liftgates or sliding roof | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Switch off ignition | ||
| 2 | Open engine hood | ||
| 3 | Remove engine air intake duct (3) upstream of air filter | ||
| 4 | Remove upper radiator crossmember (1) | See "Completely replace front end with reinforcement". | AR62.30-P-1570SX |
| 5 | Unclip coolant hose from fan unit (2) | ||
| 6 | Separate electrical connector for electrical suction fan | ||
| 7 | Unclip feed line for electrical radiator fan from fan unit (2) and set aside | ||
| 8 | Unclip oil line for P/S to fan unit (2) | Engine 276 | |
| 9 | Remove clamps on the left and right on fan unit (2) | ||
| 10 | Remove fan unit (2) in the upward direction | ||
| 11 | Install in the reverse order |
