General notes on jointing techniques in bodywork - AH60.00-P-0015-01N

WARNING: This page does not describe the selected car, but rather 202 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

Model 215

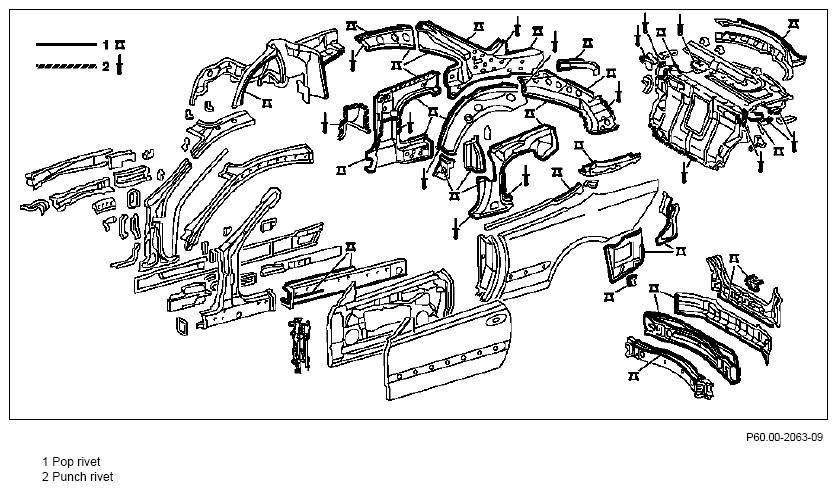

Fig 1: Identifying Body Components Rivet Punch Areas
G10035834Courtesy of MERCEDES-BENZ USA
  1. Pop rivet
  2. Punch rivet

IMPORTANT Illustration shows standard riveted connections.

For repair work, use only specified pop rivets.

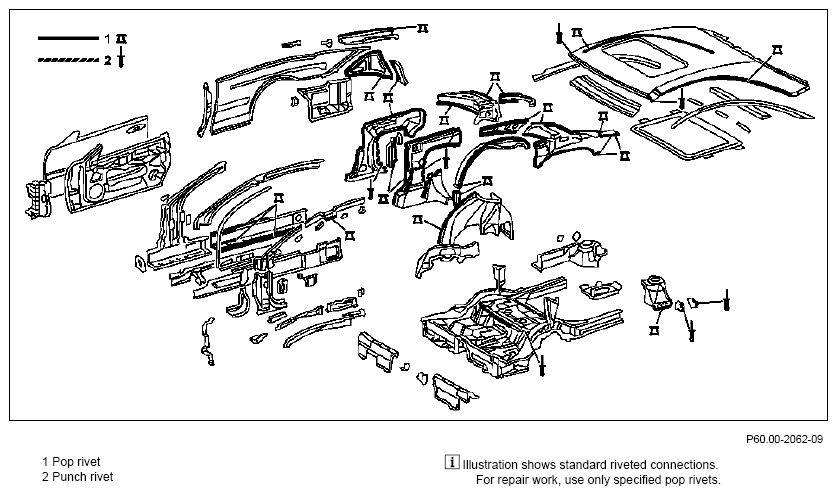

Fig 2: Identifying Body Components Rivet Punch Areas
G10035835Courtesy of MERCEDES-BENZ USA
  1. Pop rivet
  2. Punch rivet

IMPORTANT Illustration shows standard riveted connections.

For repair work, use only specified pop rivets.
