Location of right engine compartment ground points - GF00.19-P-2001-02NAA

MODEL 166

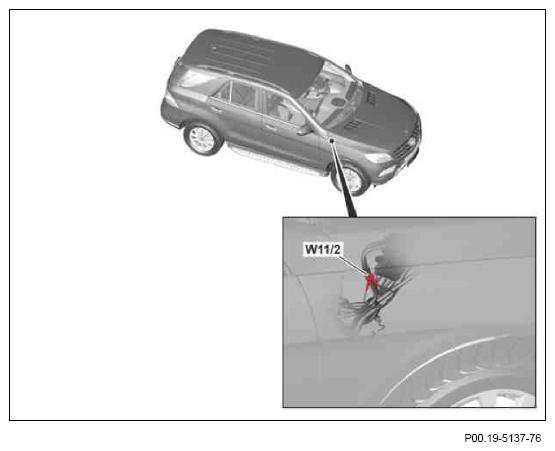

Fig 1: Right Engine Compartment Ground Points Location (1 Of 3)

Courtesy of MERCEDES-BENZ USA

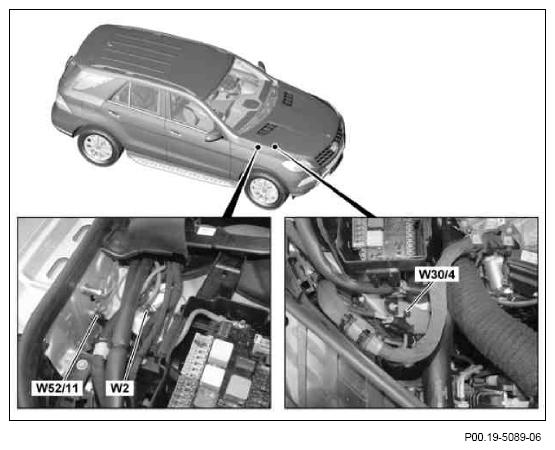

Fig 2: Right Engine Compartment Ground Points Location (2 Of 3)

Courtesy of MERCEDES-BENZ USA

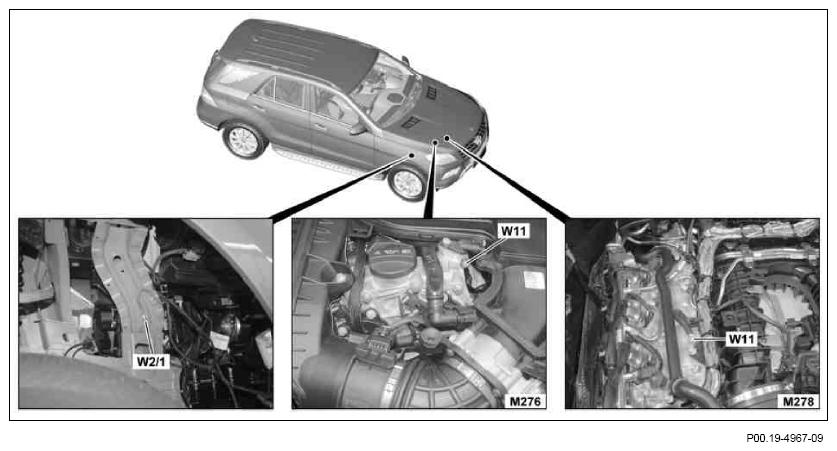

Fig 3: Right Engine Compartment Ground Points Location (3 Of 3)

Courtesy of MERCEDES-BENZ USA
