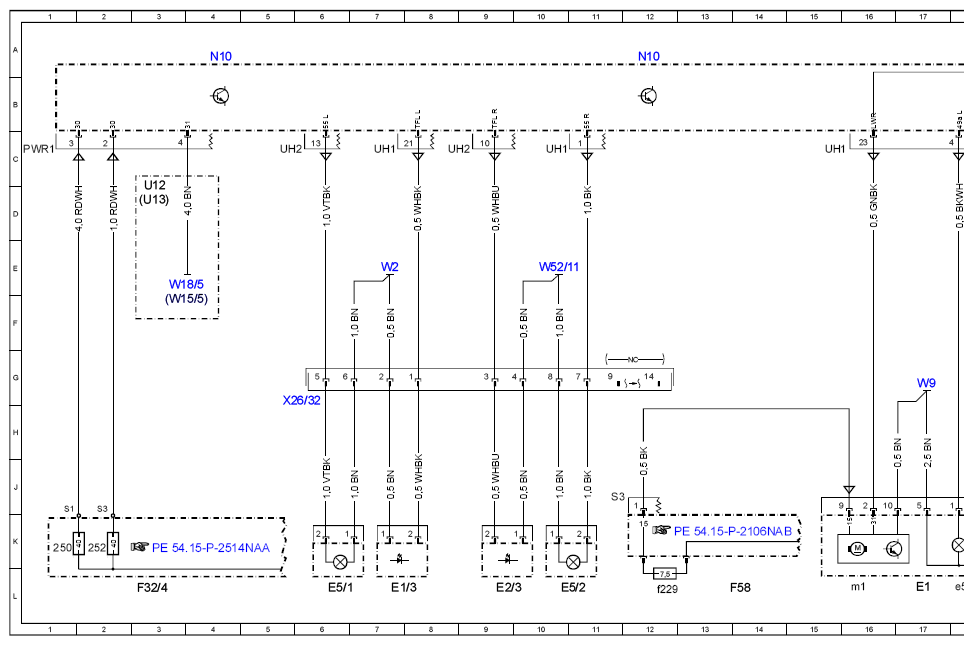

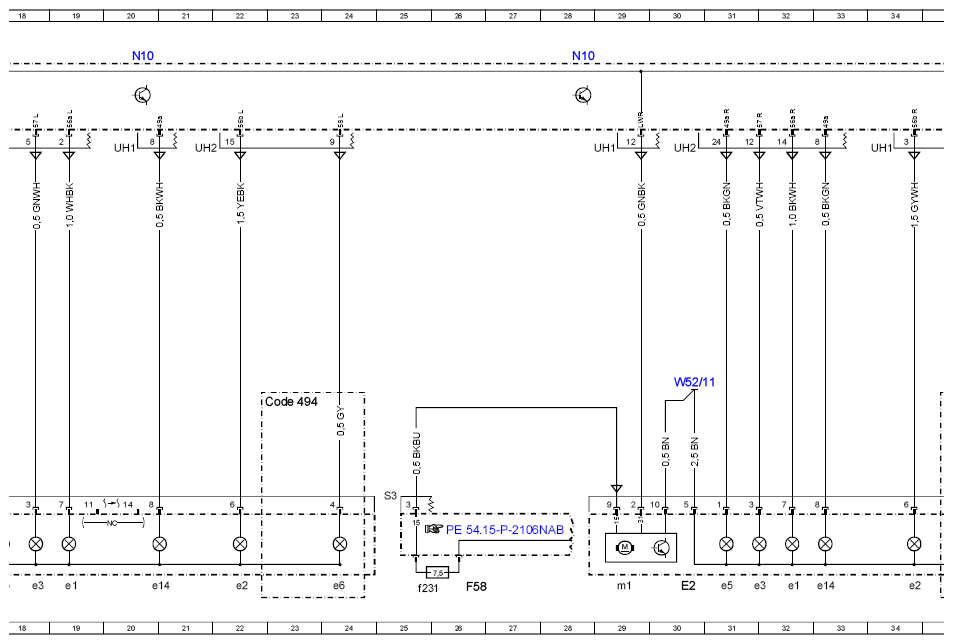

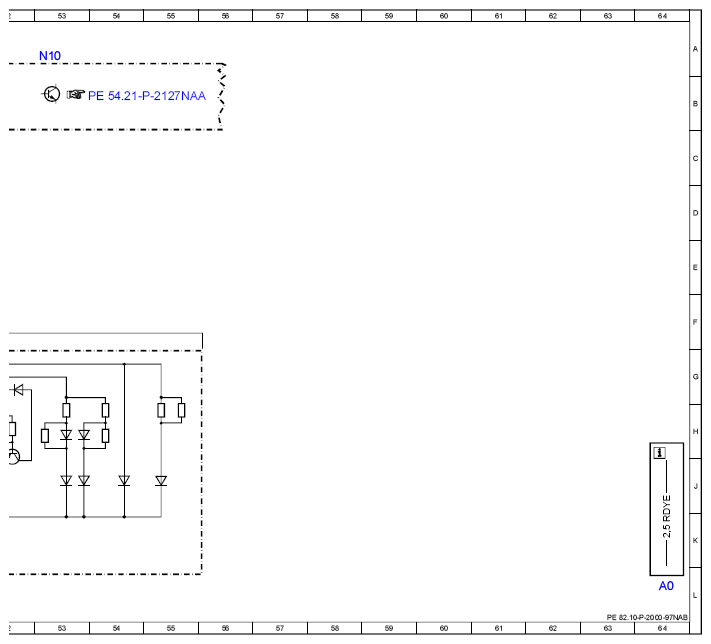

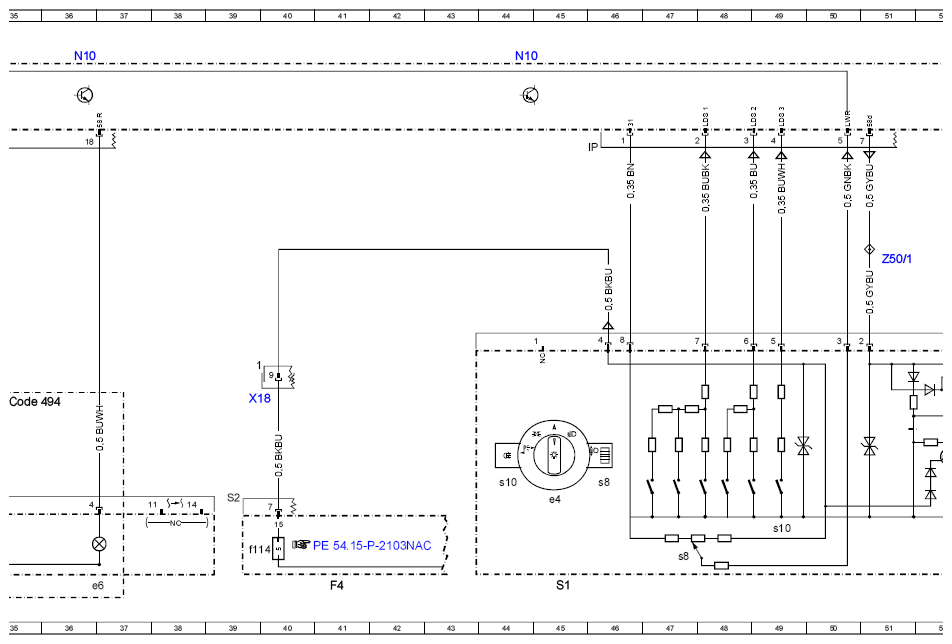

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97NAB
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 without CODE 615 (Bi-xenon headlamp unit with integrated curve illumination) without CODE 621 (Intelligent Light System (left-hand traffic)) without CODE 622 (Intelligent Light System (right-hand traffic))
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| Code | 494 USA version | 22H |
| Code | 494 USA version | 35H |
| E1 | Left front lamp unit | 17L |
| E1/3 | Left daytime running lamps headlamp | 7L |
| E1e1 | Left high beam | 19L |
| E1e14 | Outer left turn signal lamp | 20L |
| E1e2 | Left low beam | 22L |
| E1e3 | Left front standing and parking lamp | 18L |
| E1e5 | Left front turn signal lamp | 18L |
| E1e6 | Left front side-marker lamp | 24L |
| E1m1 | Left headlamp range adjustment actuator motor | 16L |
| E2 | Right front lamp unit | 30L |
| E2/3 | Right daytime running lamps headlamp | 9L |
| E2e1 | Right high beam | 32L |
| E2e14 | Outer right turn signal lamp | 33L |
| E2e2 | Right low beam | 34L |
| E2e3 | Right front standing and parking lamp | 31L |
| E2e5 | Right front turn signal lamp | 31L |
| E2e6 | Right front side-marker lamp | 36L |
| E2m1 | Right headlamp range adjustment actuator motor | 29L |
| E5/1 | Left fog lamp | 6L |
| E5/2 | Right fog lamp | 10L |
| F32/4 | Interior prefuse box | 3L |
| F32/4f250 | Fuse 250 | 1K |
| F32/4f252 | Fuse 252 | 2K |
| F4 | Rear fuse box | 41L |
| F4f114 | Fuse 114 | 39K |
| F58 | Engine compartment fuse and relay module | 14L |
| F58 | Engine compartment fuse and relay module | 26L |
| F58f229 | Fuse 229 | 12L |
| F58f231 | Fuse 231 | 25L |
| N10 | SAM control unit | 4A |
| N10 | SAM control unit | 12A |
| N10 | SAM control unit | 20A |
| N10 | SAM control unit | 28A |
| N10 | SAM control unit | 36A |
| N10 | SAM control unit | 44A |
| N10 | SAM control unit | 53A |
| S1 | Exterior lights switch | 45L |
| S1e4 | Switch illumination | 45J |
| S1s10 | Rear fog light button | 44J |
| S1s10 | Rear fog light button | 49K |
| S1s8 | Headlamp range controller | 46J |
| S1s8 | Headlamp range controller | 47K |
| U12 | Valid for left-hand drive vehicles | 3D |
| U13 | Valid for right-hand drive vehicles | 3D |
| W15/5 | Left front footwell ground point | 3F |
| W18/5 | Roof ground point | 3E |
| W2 | Right front ground point at lamp unit | 7E |
| W52/11 | Upper right front longitudinal member ground point | 10E |
| W52/11 | Upper right front longitudinal member ground point | 30G |
| W9 | Left front ground point (at lamp unit) | 17G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 40G |
| X26/32 | Engine compartment/front bumper electrical connector | 6G |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 51E |
