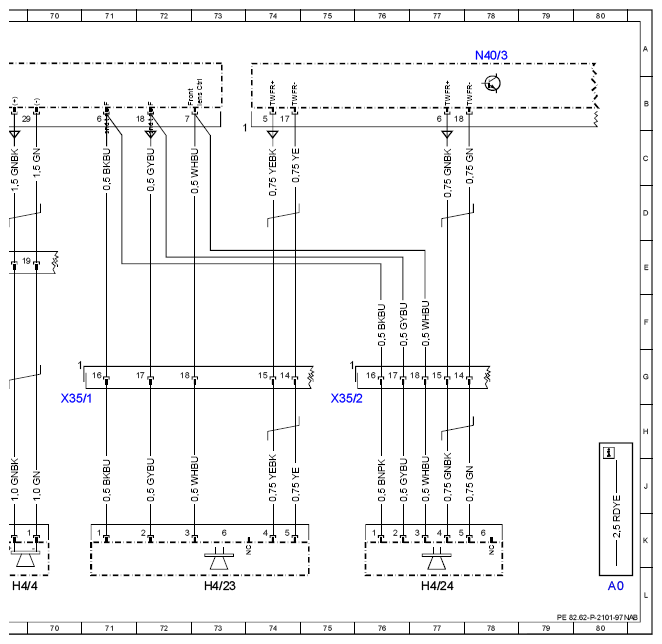

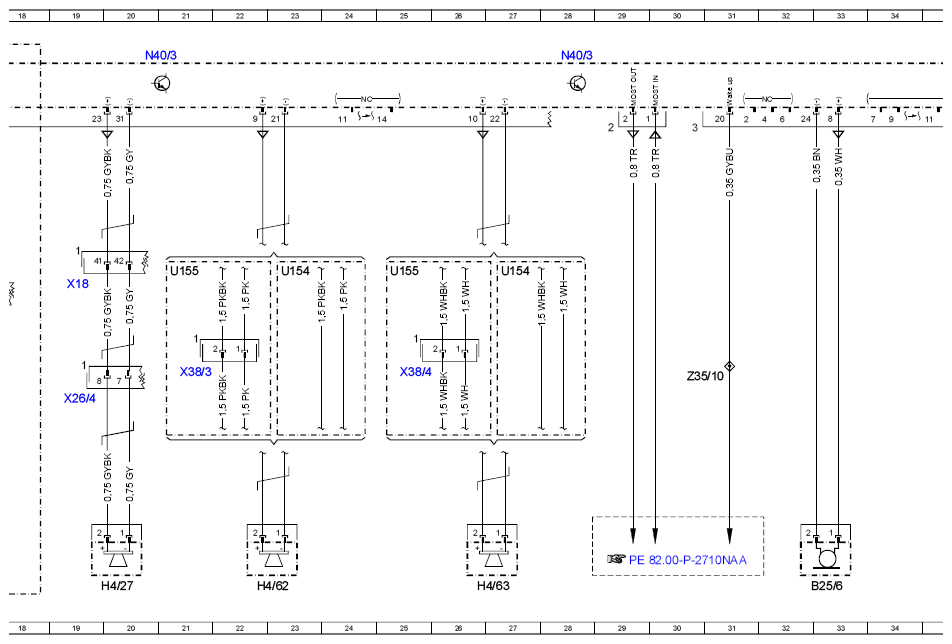

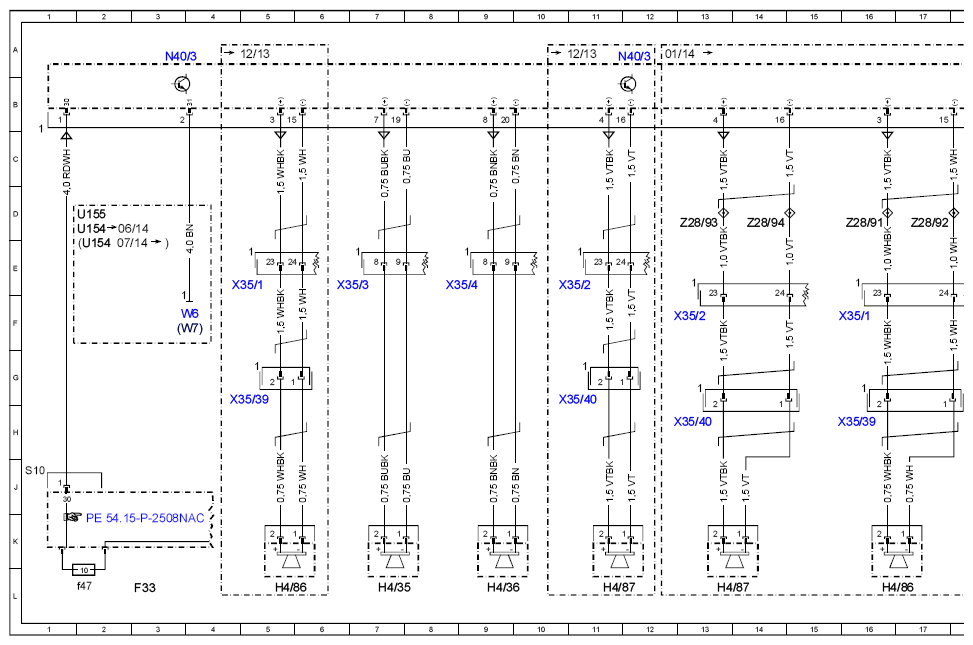

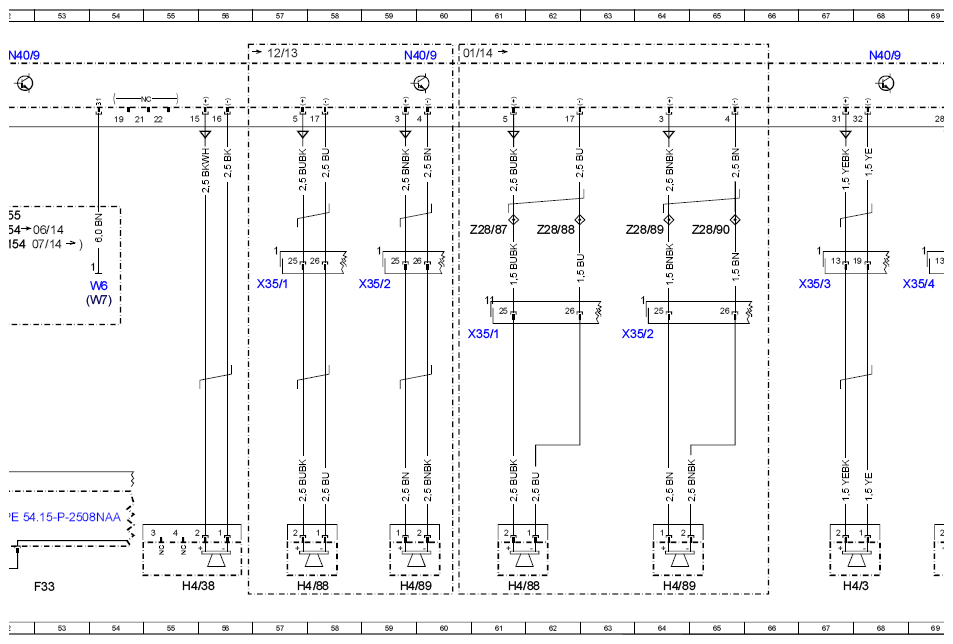

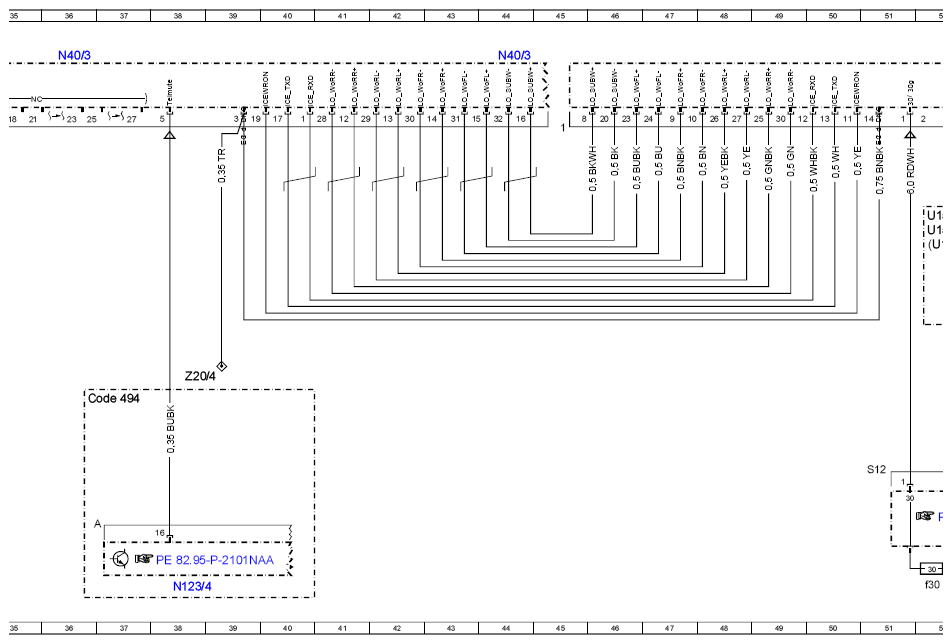

Sound Amplifier Control Unit Wiring Diagram - PE82.62-P-2101-97NAB
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016 with CODE 811 (Advanced sound system) without CODE 810 (Sound system) Control unit N40/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B25/6 | Sound system microphone | 33L |
| Code 494 | USA version | 36G |
| F33 | Battery compartment prefuse box | 3L |
| F33 | Battery compartment prefuse box | 53L |
| F33f30 | Fuse 30 | 52L |
| F33f47 | Fuse 47 | 2L |
| H4/23 | Left front door speaker, mirror triangle | 73L |
| H4/24 | Right front door speaker, mirror triangle | 77L |
| H4/27 | Center instrument panel speaker | 20L |
| H4/3 | Left rear door speaker | 67L |
| H4/35 | Left rear door tweeter | 7L |
| H4/36 | Right rear door tweeter | 9L |
| H4/38 | Rear bass speaker | 55L |
| H4/4 | Right rear door speaker | 69L |
| H4/62 | Left rear surround speaker | 22L |
| H4/63 | Right rear surround speaker | 26L |
| H4/86 | Left front door midrange speaker | 5L |
| H4/86 | Left front door midrange speaker | 16L |
| H4/87 | Right front door midrange speaker | 11L |
| H4/87 | Right front door midrange speaker | 13L |
| H4/88 | Left front door bass speaker | 57L |
| H4/88 | Left front door bass speaker | 61L |
| H4/89 | Right front door bass speaker | 59L |
| H4/89 | Right front door bass speaker | 64L |
| N123/4 | Emergency call system control unit | 38L |
| N40/3 | Sound system amplifier control unit | 3A |
| N40/3 | Sound system amplifier control unit | 12A |
| N40/3 | Sound system amplifier control unit | 28A |
| N40/3 | Sound system amplifier control unit | 44A |
| N40/3 | Sound system amplifier control unit | 78A |
| N40/3 | Sound system amplifier control unit | 36A |
| N40/3 | Sound system amplifier control unit | 20A |
| N40/9 | Bass speaker amplifier | 52A |
| N40/9 | Bass speaker amplifier | 68A |
| N40/9 | Bass speaker amplifier | 59A |
| U154 | Valid for 166.0 | 23E |
| U154 | Valid for 166.0 | 27E |
| U154 | Valid for 166.0 | 2D |
| U154 | Valid for 166.0 | 2E |
| U154 | Valid for 166.0 | 52D |
| U154 | Valid for 166.0 | 52E |
| U155 | Valid for 166.8 | 21E |
| U155 | Valid for 166.8 | 25E |
| U155 | Valid for 166.8 | 2D |
| U155 | Valid for 166.8 | 52D |
| W6 | Inner left D-pillar ground point | 4F |
| W6 | Inner left D-pillar ground point | 54E |
| W7 | Right rear center section ground point | 3F |
| W7 | Right rear center section ground point | 54F |
| X18 | Vehicle interior and harness for taillamp electrical connector | 19E |
| X26/4 | Cockpit adapter wiring harness electrical connector | 19G |
| X35/1 | Left front door electrical connector | 5E |
| X35/1 | Left front door electrical connector | 57E |
| X35/1 | Left front door electrical connector | 70G |
| X35/1 | Left front door electrical connector | 16F |
| X35/1 | Left front door electrical connector | 61F |
| X35/2 | Right front door electrical connector | 11E |
| X35/2 | Right front door electrical connector | 59E |
| X35/2 | Right front door electrical connector | 75G |
| X35/2 | Right front door electrical connector | 13F |
| X35/2 | Right front door electrical connector | 64F |
| X35/3 | Left rear door electrical connector | 67E |
| X35/3 | Left rear door electrical connector | 7E |
| X35/39 | Left front door midrange speaker electrical connector | 5G |
| X35/39 | Left front door midrange speaker electrical connector | 16H |
| X35/4 | Right rear door electrical connector | 9E |
| X35/4 | Right rear door electrical connector | 69E |
| X35/40 | Right front door midrange speaker electrical connector | 11G |
| X35/40 | Right front door midrange speaker electrical connector | 13H |
| X38/3 | Left surround speaker electrical intermediate connector | 21G |
| X38/4 | Right surround speaker electrical intermediate connector | 25G |
| Z20/4 | Sound system amplifier control unit ground line shielding | 38G |
| Z28/87 | Left front door bass speaker connector sleeve (+) | 61D |
| Z28/88 | Left front door bass speaker connector sleeve (-) | 62D |
| Z28/89 | Right front door bass speaker connector sleeve (+) | 64D |
| Z28/90 | Right front door bass speaker connector sleeve (-) | 65D |
| Z28/91 | Left front door midrange speaker connector sleeve (+) | 16D |
| Z28/92 | Left front door midrange speaker connector sleeve (-) | 17D |
| Z28/93 | Right front door midrange speaker connector sleeve (+) | 13D |
| Z28/94 | Right front door midrange speaker connector sleeve (-) | 14D |
| Z35/10 | MOST wake-up signal connector sleeve | 31G |
