Remove/Install Rear Seat Cushion - AR91.12-P-1020GQ
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166
60% rear seat cushion

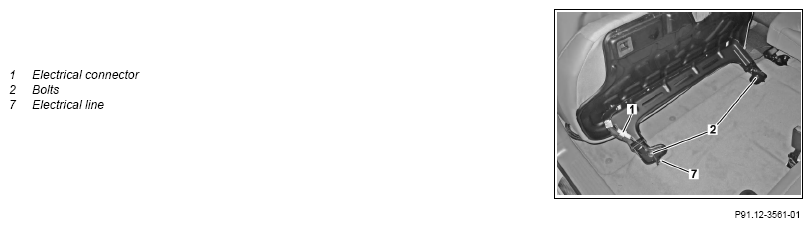

Shows model 166.0

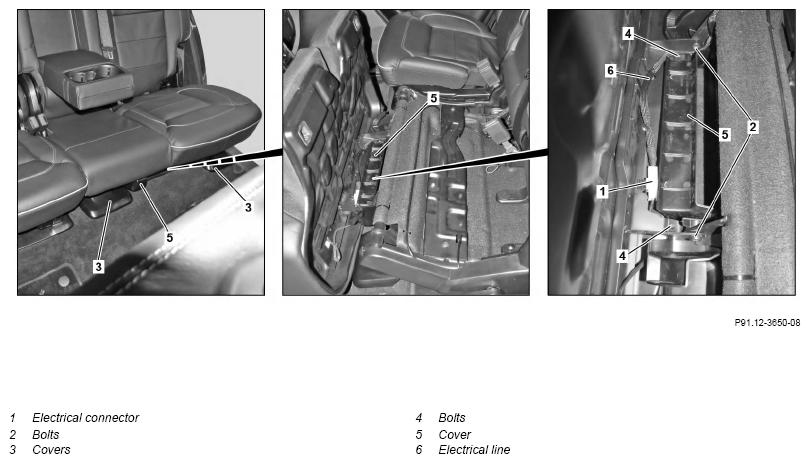

Shown on model 166.8
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Remove/install | |||
| 1 | Remove both covers (3) at vehicle floor | MODEL 166.8 60% rear seat cushion |
|
| 2 | Fold up rear seat cushion | ||
| 3 | Remove screws/bolts (4) and remove cover (5) | MODEL 166.8 60% rear seat cushion |
|
| 4.1 | Disconnect electrical connector (1) | MODEL 166.0 with CODE 872 (Electrically heated left and right rear seats) 60% rear seat cushion |
|
| 4.2 | Disconnect electrical connector (1) and unclip electrical line (6) from rear seat cushion | MODEL 166.8 with CODE 872 (Electrically heated left and right rear seats) 60% rear seat cushion |
|
| 5 | Remove bolts (2) | 60% rear seat cushion Installation: Replace screws/bolts (2). |
|
MODEL 166.8 60% rear seat cushion |
*BA91.12-P-1004-03F | ||
MODEL 166.0 60% rear seat cushion |
*BA91.12-P-1001-03F | ||
| 6 | Remove rear seat cushion | ||
| 7 | Install in the reverse order |
REAR SEATS
| Number | Designation | MODEL 166.8 | |
|---|---|---|---|
| BA91.12-P-1004-03F | Bolt, rear seat cushion to rear seat console | Nm | 25 |
REAR SEATS
| Number | Designation | MODEL 166.0 | |
|---|---|---|---|
| BA91.12-P-1001-03F | Bolt, rear seat console to vehicle floor | Nm | 50 |
