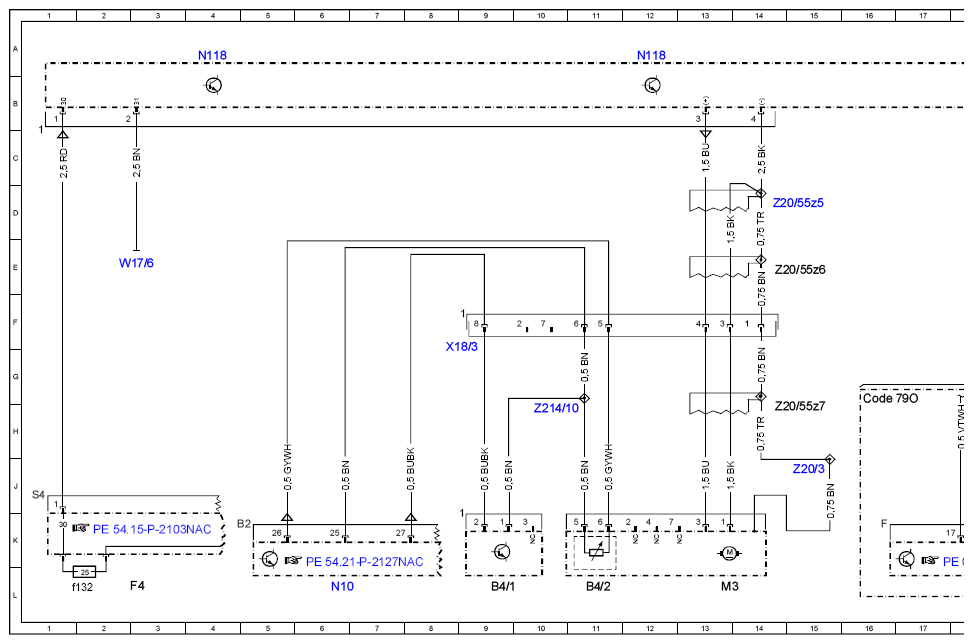

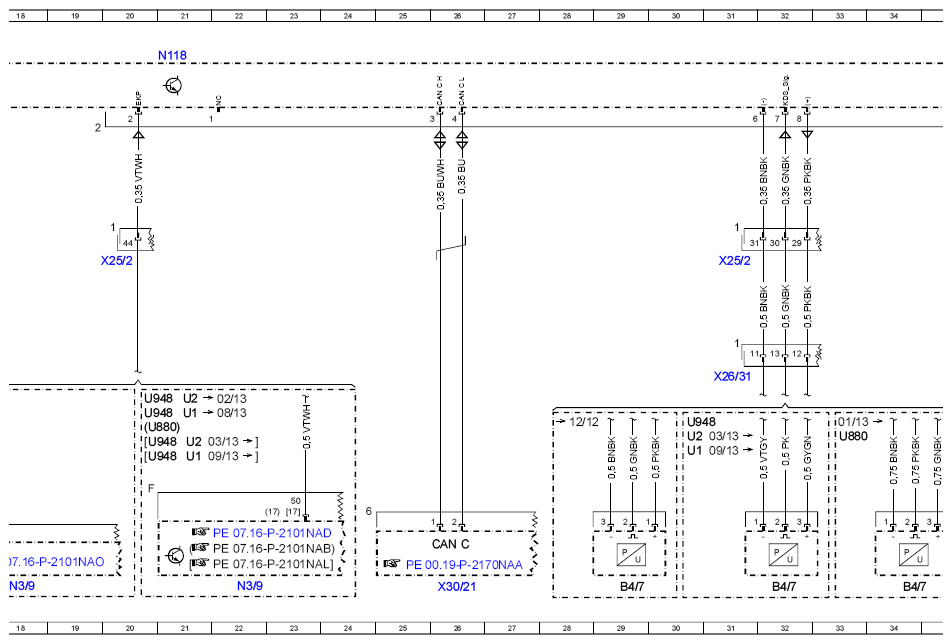

Wiring Diagram For Fuel Pump Control Unit - PE47.40-P-2101-97NAB
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 642.8, 651.9 in MODEL 166 up to model year 2016 Control unit N118
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 40L |
| B4/1 | Fuel tank fuel level indicator fill level sensor, left | 9L |
| B4/2 | Fuel tank fuel level indicator fill level sensor, right | 11L |
| B4/7 | Fuel pressure sensor | 29L |
| B4/7 | Fuel pressure sensor | 34L |
| B4/7 | Fuel pressure sensor | 32L |
| CAN C | Drive train CAN | 26K |
| Code 79O | 16G | |
| F4 | Rear fuse box | 3L |
| F4 | Rear fuse box | 37L |
| F4f112 | Fuse 112 | 36L |
| F4f132 | Fuse 132 | 2L |
| M3 | Fuel pump (FP) | 13L |
| N10 | SAM control unit | 6L |
| N118 | Fuel pump control unit | 4A |
| N118 | Fuel pump control unit | 12A |
| N118 | Fuel pump control unit | 21A |
| N118 | Fuel pump control unit | 35A |
| N3/9 | CDI control unit | 22L |
| N3/9 | CDI control unit | 18L |
| U1 | Valid for USA | 21J |
| U1 | Valid for USA | 21H |
| U1 | Valid for USA | 30H |
| U2 | Valid for all except USA | 21H |
| U2 | Valid for all except USA | 21G |
| U2 | Valid for all except USA | 30H |
| U880 | Valid for engine 642 | 20H |
| U880 | Valid for engine 642 | 33H |
| U948 | Valid for diesel engine 651 | 20J |
| U948 | Valid for diesel engine 651 | 20H |
| U948 | Valid for diesel engine 651 | 20G |
| U948 | Valid for diesel engine 651 | 20H |
| U948 | Valid for diesel engine 651 | 30H |
| W17/6 | Rear seat crossmember ground point | 2E |
| X18/3 | Vehicle interior/fuel tank electrical connector | 9G |
| X25/2 | Engine compartment/vehicle interior electrical connector | 20E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 31E |
| X26/31 | Engine/engine compartment electrical connector | 31G |
| X30/21 | Drive train CAN voltage distributor electrical connector | 26L |
| Z20/3 | Fuel pump ground line connector sleeve | 15J |
| Z20/55z5 | Fuel pump actuation shielding connector sleeve | 15D |
| Z20/55z6 | Fuel pump actuation shielding connector sleeve | 15E |
| Z20/55z7 | Fuel pump actuation shielding connector sleeve | 15H |
| Z214/10 | Fill level sensor ground line connector sleeve | 10H |
