Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210SX
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 216
MODEL 221.0/1
Vehicles without Active Body Control (ABC), code 487
Vehicles with Active Body Control (ABC), code 487
| Checking | |||
| Risk of fire and explosion caused by igniting windshield cleaning agent and antifreeze and their vapors. Risk of poisoning caused by swallowing windshield cleaning agent and antifreeze and inhaling their vapors. Risk of injury caused by irritation in the event of contact of windshield cleaning agents and antifreezes with eyes, mucous membrane and skin | Wear protective clothing and tight-fitting safety glasses. Keep away from open flames, fire and ignition sources. Avoid contact with eyes, mucous membrane and skin. Do not eat, drink or smoke when dealing with windshield cleaning agents and antifreezes. Do not inhale vapors, ensure adequate ventilation. Only store windshield cleaning agents and antifreezes in tightly sealed original containers and which are inaccessible to children. | AS82.35-Z-0001-01A | |
| 1 | Open engine hood and raise to vertical position | ||

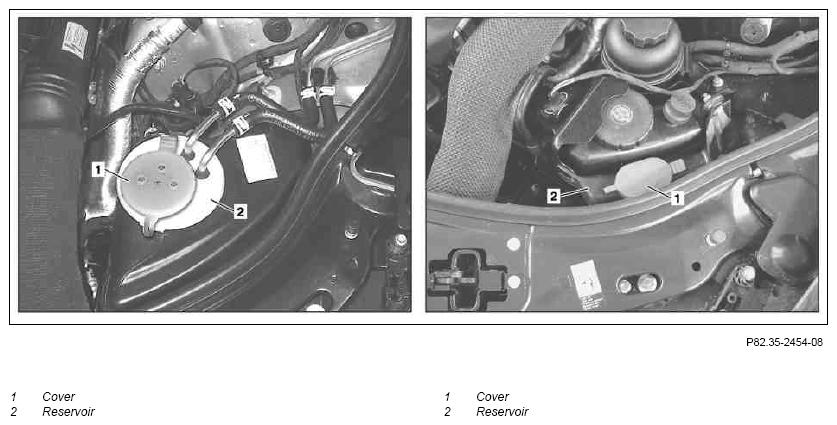

| 2 | Open hood (1) and fill reservoir (2) of windshield washer system with windshield washer fluid | ||
| *BF82.35-P-1001-01F | |||
| Windshield washer fluid concentrate | Specification 371.0 | Windshield washer fluid concentrate. MB 371.0. | |
| 3 | Seal reservoir (2) of windshield washer system with cap (1) | ||
| 4 | Close engine hood |
WINDSHIELD WASHER SYSTEM FILLING CAPACITY
| Number | Designation | Model 216 | Model 221 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01F | Windshield washer fluid | Filling capacity | Liters | 6, 4 | 6, 4 |
