Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210RT
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 251
| Fill | |||
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight fitting safety glasses. No fire, open light or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of childrens' reach only. | AS82.35-Z-0001-01A | |

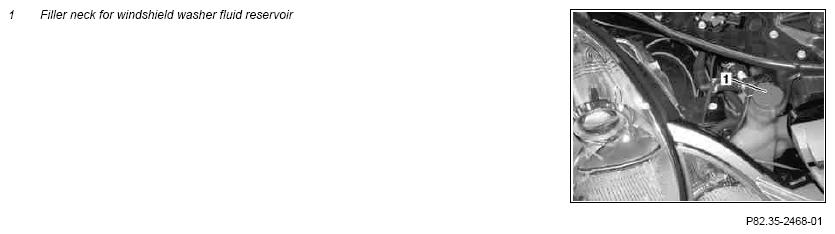

| 1 | Remove cap on filler neck (1) and fill reservoir of windshield washer system with windshield cleaning fluid | ||
| *BF82.35-P-1001-01F | |||
| Windshield washer fluid concentrate | Specification 371.0 | Windshield washer fluid concentrate. MB 371.0. | |
| 2 | Close filler neck (1) with cap |
WINDSHIELD WASHER SYSTEM FILLING CAPACITY
| Number | Designation | Model 251 | ||
|---|---|---|---|---|
| BF82.35-P-1001-01F | Windshield washer fluid | Filling capacity | Liters | 8.0 |
