Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210AK
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 117, 156, 169, 176, 242, 245, 246
MODIFICATION NOTES
| 17.9.13 | Windshield washer fluid | Model 246 except code 600 | BF82.35-P-1001-01E |
| 17.9.13 | Windshield washer fluid | Model 242 except code 460/494/600 | BF82.35-P-1001-01E |

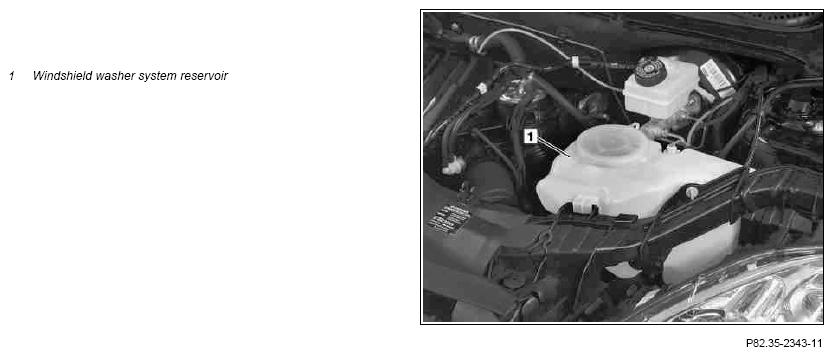

Shows model 169

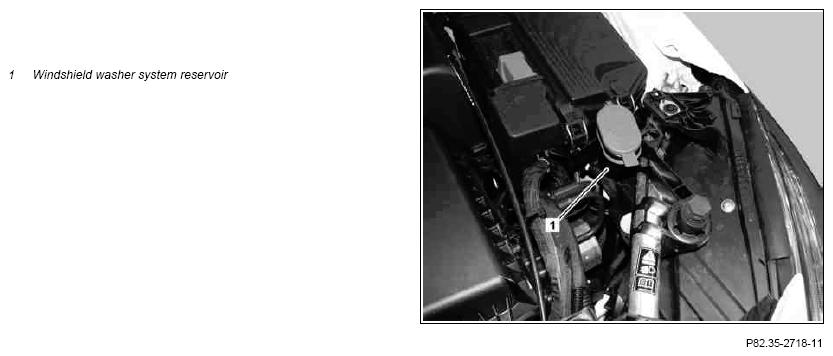

Illustrated: model 176
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No fire, naked flames or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Check | |||
| 1 | Open engine hood | ||
| 2 | Check and correct fluid level in windshield washer system reservoir (1) | ||
| Windshield washer fluid concentrate | Windshield washer fluid concentrate. MB 371.0. | ||
| *BF82.35-P-1001-01A | |||
| *BF82.35-P-1001-01E | |||
| 3 | Close engine hood |
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 117.3 except code 460/494/600 | Model 117.3 with code 600 except code 460/494 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01A | Windshield washer fluid | Filling capacity | Liter | 3, 0 | 6, 0 |
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 117.3 with code 460/494 | MODEL 169 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01A | Windshield washer fluid | Filling capacity | Liter | 5, 0 | 4, 7 |
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 176 except code 460/494/600 | Model 176 with code 600 except code 460/494 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01A | Windshield washer fluid | Filling capacity | Liter | 3, 0 | 6, 0 |
FILLING CAPACITY - WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 176 with code 460/494 | ||
|---|---|---|---|---|
| BF82.35-P-1001-01A | Windshield washer fluid | Filling capacity | Liter | 5, 0 |
FILLING CAPACITY OF WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 156 except code 460/494/600 | Model 156 with code 600 except code 460/494 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01E | Windshield washer fluid | Filling capacity | Liter | 3, 0 | 6, 0 |
FILLING CAPACITY OF WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 156 with code 460/494 | Model 242 except code 460/494/600 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01E | Windshield washer fluid | Filling capacity | Liter | 5, 0 | 3, 0 |
FILLING CAPACITY OF WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 242 with code 600 except code 460/494 | Model 242 with code 460/494 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01E | Windshield washer fluid | Filling capacity | Liter | 6, 0 | 5, 0 |
FILLING CAPACITY OF WINDSHIELD WASHER SYSTEM
| Number | Designation | MODEL 245 | Model 246 except code 600 | ||
|---|---|---|---|---|---|
| BF82.35-P-1001-01E | Windshield washer fluid | Filling capacity | Liter | 6, 0 | 3, 0 |
FILLING CAPACITY OF WINDSHIELD WASHER SYSTEM
| Number | Designation | Model 246 with code 600 | ||
|---|---|---|---|---|
| BF82.35-P-1001-01E | Windshield washer fluid | Filling capacity | Liter | 6, 0 |
