Windshield washer system - inspect fluid level, adjust to correct level - AP82.35-P-8210A
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 190
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Preparatory activity | |||
| 1 | Open engine hood | ||
| AR88.40-P-1000RG | |||
| Check/correct | |||

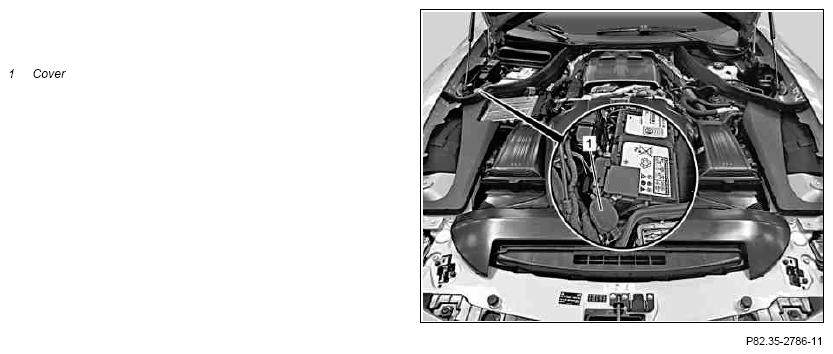

| 2 | Remove cover (1) and check fluid level in washer fluid reservoir; correct if necessary | ||
| Windshield washer fluid concentrate | Windshield washer fluid concentrate. MB 371.0. | ||
Observe mixing ratio as per the table on the packaging of the windshield washer fluid and antifreeze. |
|||
| 3 | Seal washer fluid reservoir with cover (1) | ||
| Finishing activity | |||
| 4 | Close engine hood | ||
| AR88.40-P-1000RG |
