Wiring diagram for media interface control unit - PE82.60-P-2105-97NAA

Code:	Designation:	Position:
A0	Color code key	48L
A40/3	COMAND control unit	39A
Code 494	USA version	36A
Code 498	Japan version	36B
F33	Battery compartment prefuse box	3L
F33MF2	Multiple fuse 2	2K
N125/1	Media interface control unit	4A
N125/1	Media interface control unit	20A
N125/1	Media interface control unit	12A
N125/1	Media interface control unit	29A
U20	Valid for all (except {{USA}} {{Japan}})	36A
W12	Ground point (center console)	3G
X18/70	Media interface electrical connector	12L
X18/70	Media interface electrical connector	20L
X18/70	Media interface electrical connector	26L
X18/70	Media interface electrical connector	34L
X18/70	Media interface electrical connector	38L
X29/6	Center console electrical connector	37E
Z35/10	MOST wake-up signal connector sleeve	6G
Z6/30	ME-SFI [ME] diagnosis connector sleeve	16H
Z6/30	ME-SFI [ME] diagnosis connector sleeve	22H

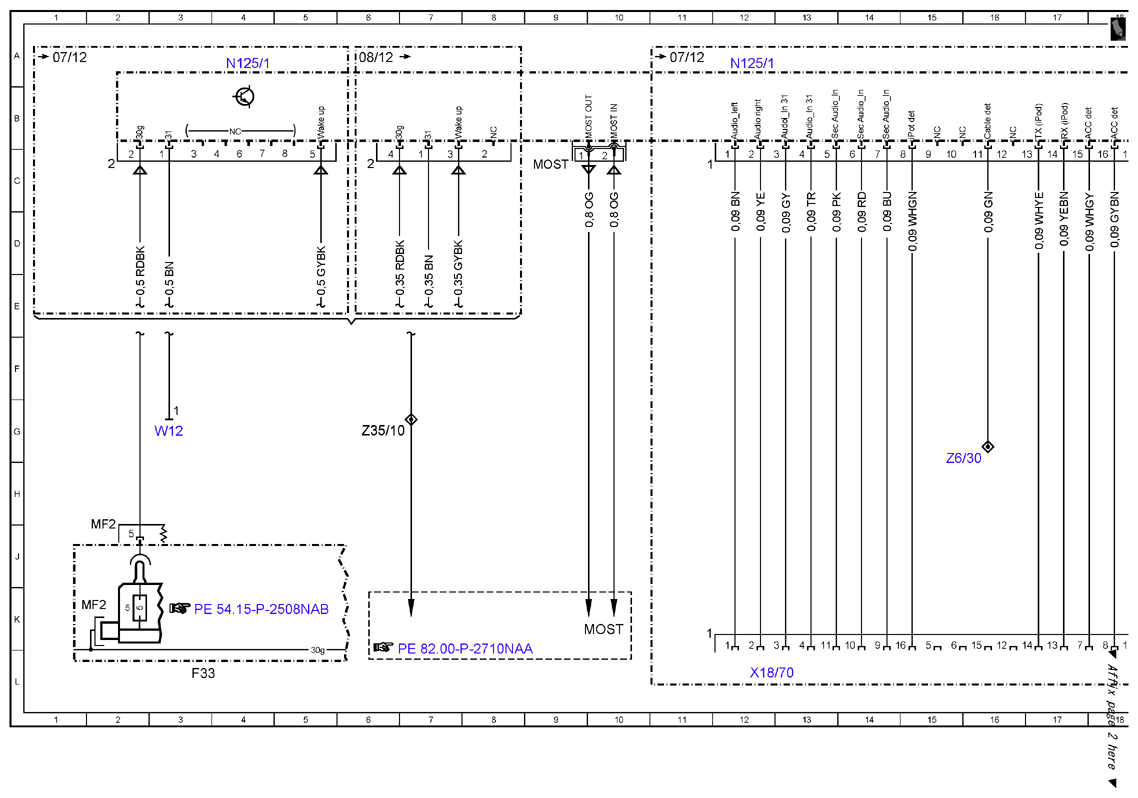

Fig 1: Media Interface Control Unit - Wiring Diagram (1 Of 3)

Courtesy of MERCEDES-BENZ USA

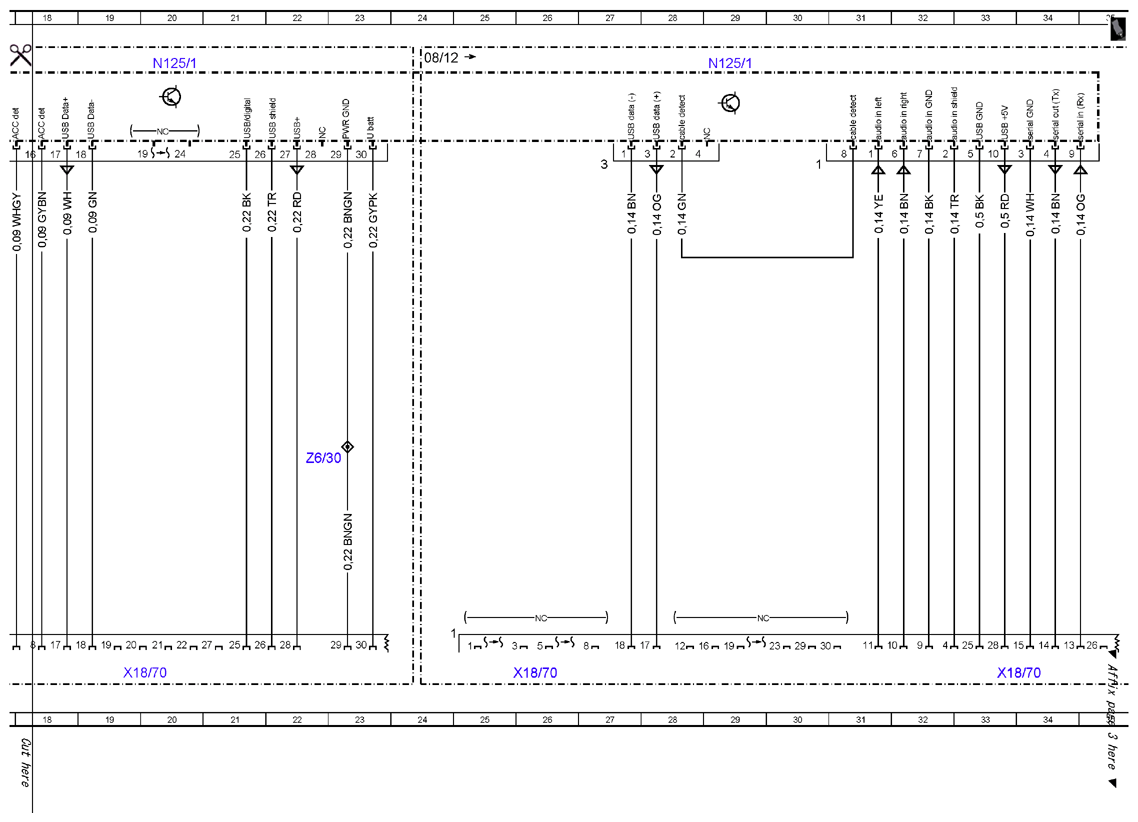

Fig 2: Media Interface Control Unit - Wiring Diagram (2 Of 3)

Courtesy of MERCEDES-BENZ USA

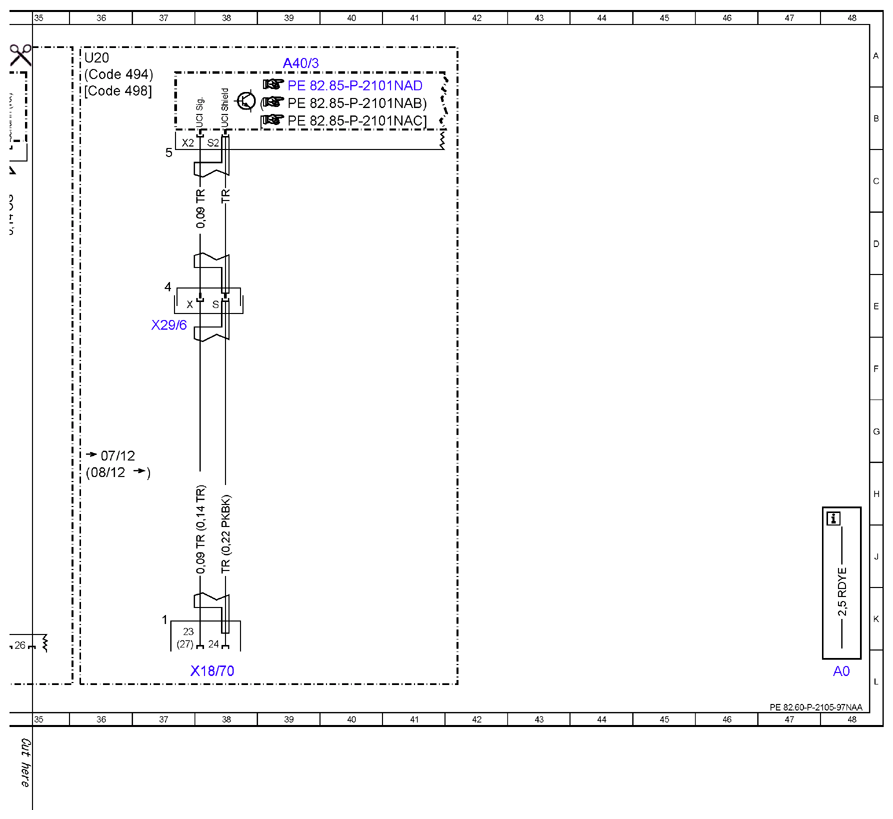

Fig 3: Media Interface Control Unit - Wiring Diagram (3 Of 3)

Courtesy of MERCEDES-BENZ USA
