Remove/install E-net compensator - AR82.70-P-0010GQ

MODEL 166

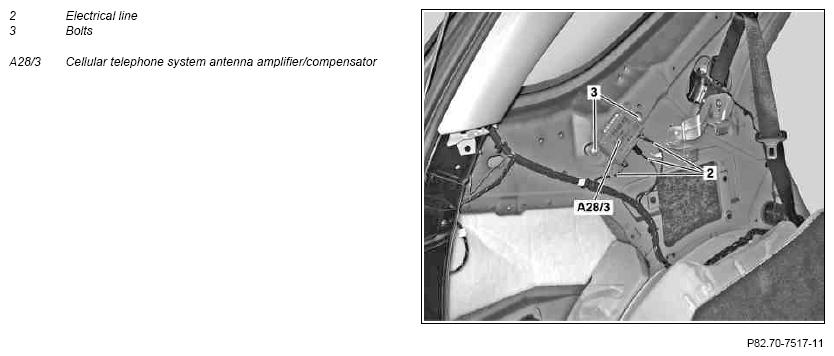

Fig 1: Identifying E-Net Compensator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
1	Remove paneling from left C-pillar		AR68.30-P-4490GQ
2	Disconnect electrical lines (2) from antenna amplifier/cellular telephone system compensator (A28/3)
3	Remove bolt (3)
4	Remove antenna amplifier/cellular telephone system compensator (A28/3)
5	Install in the reverse order
