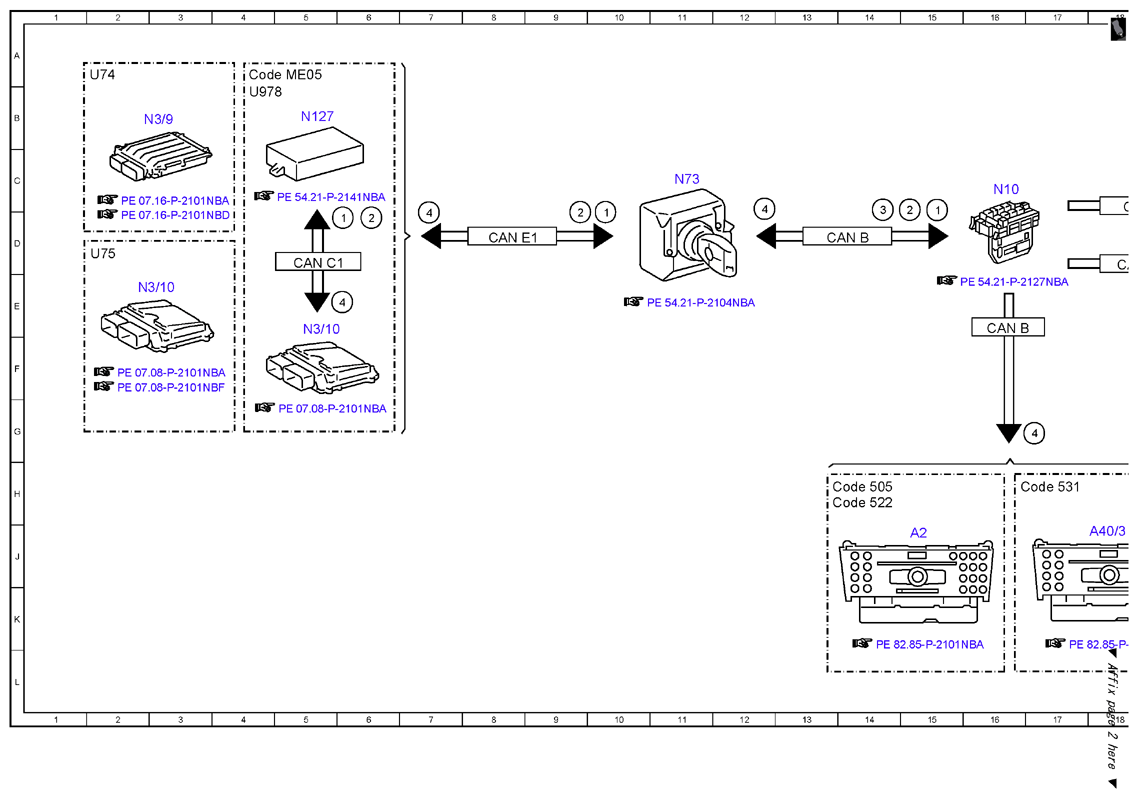

| 1 |
Engine running, signal |
6D |
| 1 |
Engine running, signal |
15D |
| 1 |
Engine running, signal |
10D |
| 2 |
Drivetrain operational, signal |
6D |
| 2 |
Drivetrain operational, signal |
15D |
| 2 |
Drivetrain operational, signal |
9D |
| 3 |
Circuit 15, status |
14D |
| 4 |
Consumer shutoff, request |
6E |
| 4 |
Consumer shutoff, request |
7D |
| 4 |
Consumer shutoff, request |
12D |
| 4 |
Consumer shutoff, request |
20C |
| 4 |
Consumer shutoff, request |
20F |
| 4 |
Consumer shutoff, request |
17G |
| A2 |
Radio |
15J |
| A40/3 |
COMAND control unit |
18J |
| CAN B |
Interior CAN |
14D |
| CAN B |
Interior CAN |
18D |
| CAN B |
Interior CAN |
18D |
| CAN B |
Interior CAN |
16E |
| CAN C1 |
Engine CAN |
5D |
| CAN E1 |
Chassis CAN 1 |
8D |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
13H |
| Code 522 |
Audio 20 radio |
13H |
| Code 531 |
COMAND APS |
16H |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
4A |
| N10 |
SAM control unit |
16C |
| N127 |
Drivetrain control unit |
5B |
| N22/7 |
Automatic air conditioning control and operating unit |
21F |
| N3/10 |
ME-SFI [ME] control unit |
5E |
| N3/10 |
ME-SFI [ME] control unit |
2E |
| N3/9 |
CDI control unit |
3B |

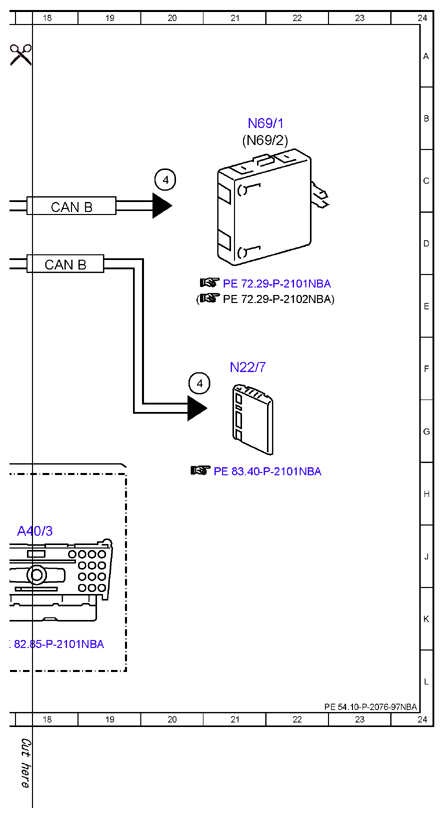

| N69/1 |
Left front door control unit |
21B |
| N69/2 |
Right front door control unit |
21B |
| N73 |
Electronic ignition switch control unit |
11C |
| U74 |
Valid for diesel engines |
2A |
| U75 |
Valid for gasoline engines |
2D |
| U978 |
Valid for hybrid drive |
4B |
