| 1 |
Circuit 15, status |
17F |
| 2 |
Alternator, signal |
4G |
| 3 |
Engine running, signal |
11F |
| 3 |
Engine running, signal |
17F |
| 4 |
Drivetrain operational, signal |
11F |
| 4 |
Drivetrain operational, signal |
17F |
| 5 |
Alternator operating rate, signal |
10F |
| 5 |
Alternator operating rate, signal |
16F |
| 6 |
Battery sensor, signal |
18D |
| 7 |
Consumer shutoff, request |
13H |
| 7 |
Consumer shutoff, request |
14F |
| 7 |
Consumer shutoff, request |
37G |
| 7 |
Consumer shutoff, request |
25E |
| 7 |
Consumer shutoff, request |
34H |
| 7 |
Consumer shutoff, request |
30G |
| 7 |
Consumer shutoff, request |
25G |
| 7 |
Consumer shutoff, request |
17H |
| 7 |
Consumer shutoff, request |
34E |

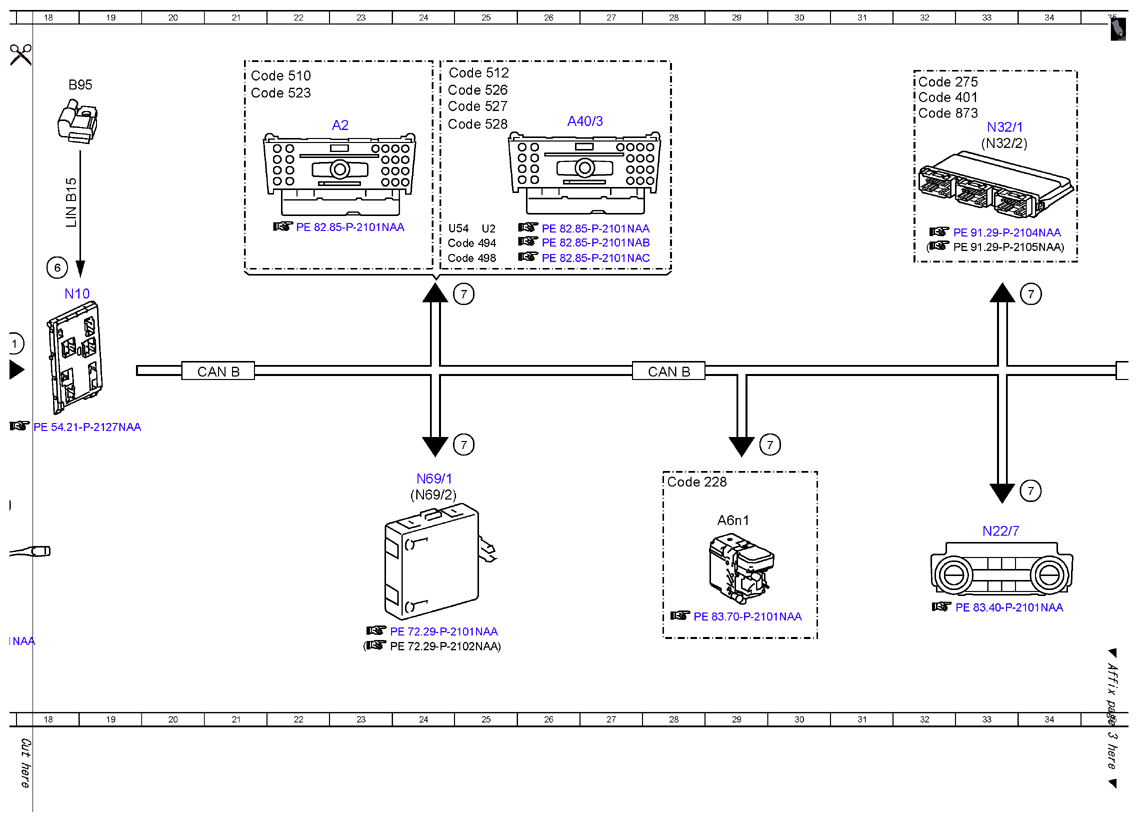

| A2 |
Radio |
23B |
| A40/3 |
COMAND control unit |
26B |
| A6n1 |
Stationary heater control unit |
29J |
| B95 |
Battery sensor |
18B |
| CAN B |
Interior CAN |
15F |
| CAN B |
Interior CAN |
21F |
| CAN B |
Interior CAN |
28F |
| CAN B |
Interior CAN |
36F |
| CAN E1 |
Chassis CAN 1 |
12H |
| CAN E1 |
Chassis CAN 1 |
7F |
| CAN E1 |
Chassis CAN 1 |
15G |
| Code 228 |
Stationary heater |
28H |
| Code 275 |
Front passenger seat memory package / electrically adjustable driver seat |
32B |
| Code 401 |
Front comfort seats, incl. seat heating and seat ventilation |
32B |
| Code 489 |
AIRMATIC (air suspension with level adjustment and adaptive damping system ADS) |
11J |
| Code 494 |
USA version |
4H |
| Code 494 |
USA version |
24D |
| Code 498 |
Japan version |
24D |
| Code 510 |
Audio 20 with CD changer |
21A |
| Code 512 |
COMAND APS with DVD changer |
24A |
| Code 523 |
Audio 20 radio |
21B |
| Code 526 |
COMAND with single DVD drive (without navigation) |
24B |
| Code 527 |
COMAND APS (with navigation) |
24B |
| Code 528 |
COMAND with DVD changer |
24B |
| Code 873 |
Heated seats for driver and front passenger seat |
32B |

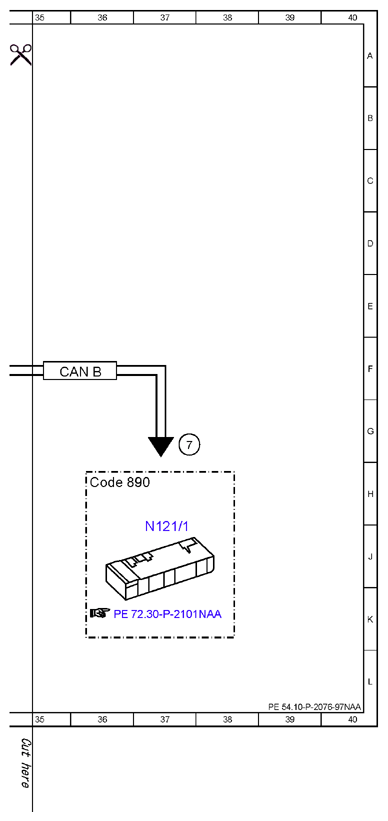

| Code 890 |
Tailgate control |
36H |

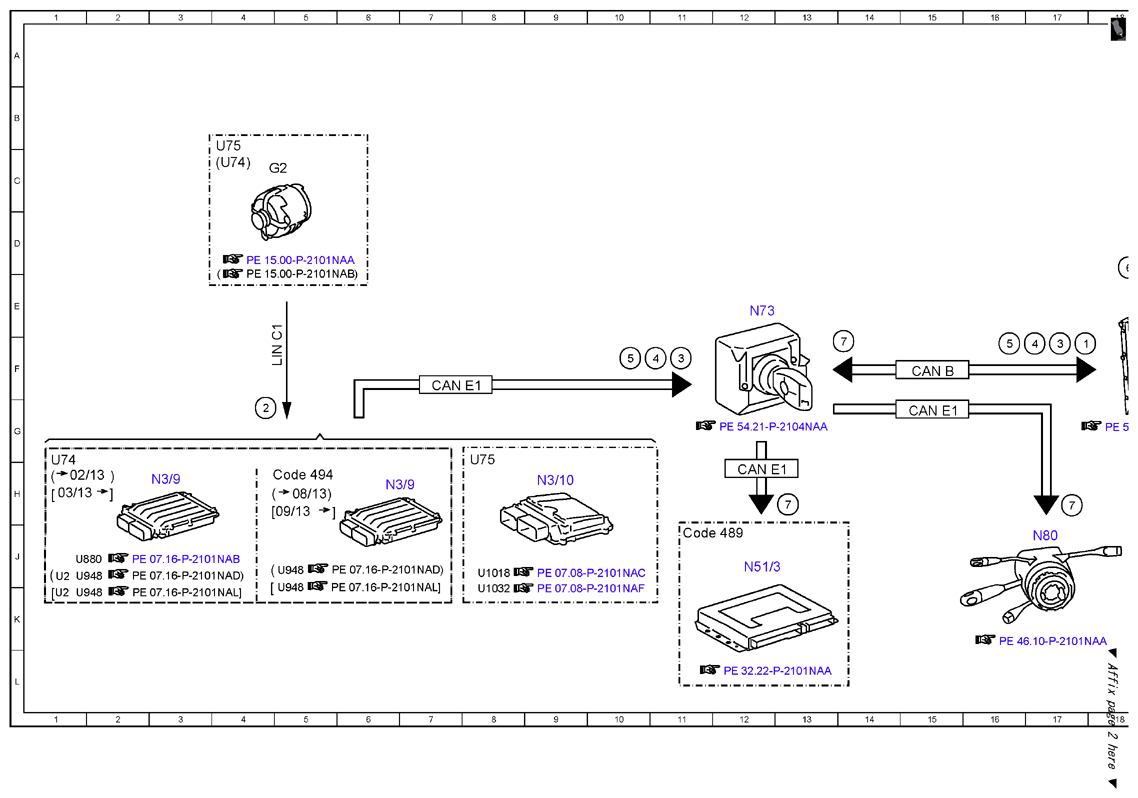

| G2 |
Alternator |
5C |
| LIN B15 |
Battery sensor LIN |
18C |
| LIN C1 |
Drive train LIN |
4F |
| N10 |
SAM control unit |
18E |
| N121/1 |
Tailgate control control unit |
37J |
| N22/7 |
Automatic air conditioning control and operating unit |
33J |
| N3/10 |
ME-SFI [ME] control unit |
9H |
| N3/9 |
CDI control unit |
6H |
| N3/9 |
CDI control unit |
3H |
| N32/1 |
Driver seat control unit |
33B |
| N32/2 |
Front passenger seat control unit |
33B |
| N51/3 |
AIRMATIC control unit |
12J |
| N69/1 |
Left front door control unit |
24H |
| N69/2 |
Right front door control unit |
24H |
| N73 |
Electronic ignition switch control unit |
12E |
| N80 |
Steering column module control unit |
17J |
| U1018 |
Valid for gasoline engine 276 |
8J |
| U1032 |
Valid for engine 278 and 157 |
8K |
| U2 |
Valid for all except USA |
1J |
| U2 |
Valid for all except USA |
25D |
| U2 |
Valid for all except USA |
25C |
| U54 |
Valid for all except Japan |
24D |
| U74 |
Valid for diesel engines |
4C |
| U74 |
Valid for diesel engines |
1H |
| U75 |
Valid for gasoline engines |
4C |
| U75 |
Valid for gasoline engines |
8H |
| U880 |
Valid for engine 642 |
1J |
| U948 |
Valid for diesel engine 651 |
1J |
| U948 |
Valid for diesel engine 651 |
1K |
| U948 |
Valid for diesel engine 651 |
5K |
| U948 |
Valid for diesel engine 651 |
5J |
