| A0 |
Color code key |
32L |
| CAN C |
Drive train CAN |
14K |
| Code 4U7 |
Start/stop voltage dip protection |
8K |
| Code B03 |
ECO start/stop function |
7K |
| Code B03 |
ECO start/stop function |
7K |
| F32/3 |
Engine compartment prefuse box |
8L |
| F32/3f2 |
Fuse 2 |
6K |
| M42 |
Electric auxiliary oil pump |
4A |
| M42 |
Electric auxiliary oil pump |
2A |
| N73 |
Electronic ignition switch control unit |
18L |
| U1045 |
Not valid for diesel engine 642 |
12A |
| U154 |
Valid for 166.0 |
1A |
| U155 |
Valid for 166.8 |
1A |
| U215 |
Valid for model series 292 |
3A |
| U240 |
Valid for all except ECO start/stop function |
7K |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
8K |
| U880 |
Valid for engine 642 |
12A |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
18G |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
5H |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
14E |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
16G |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
14L |

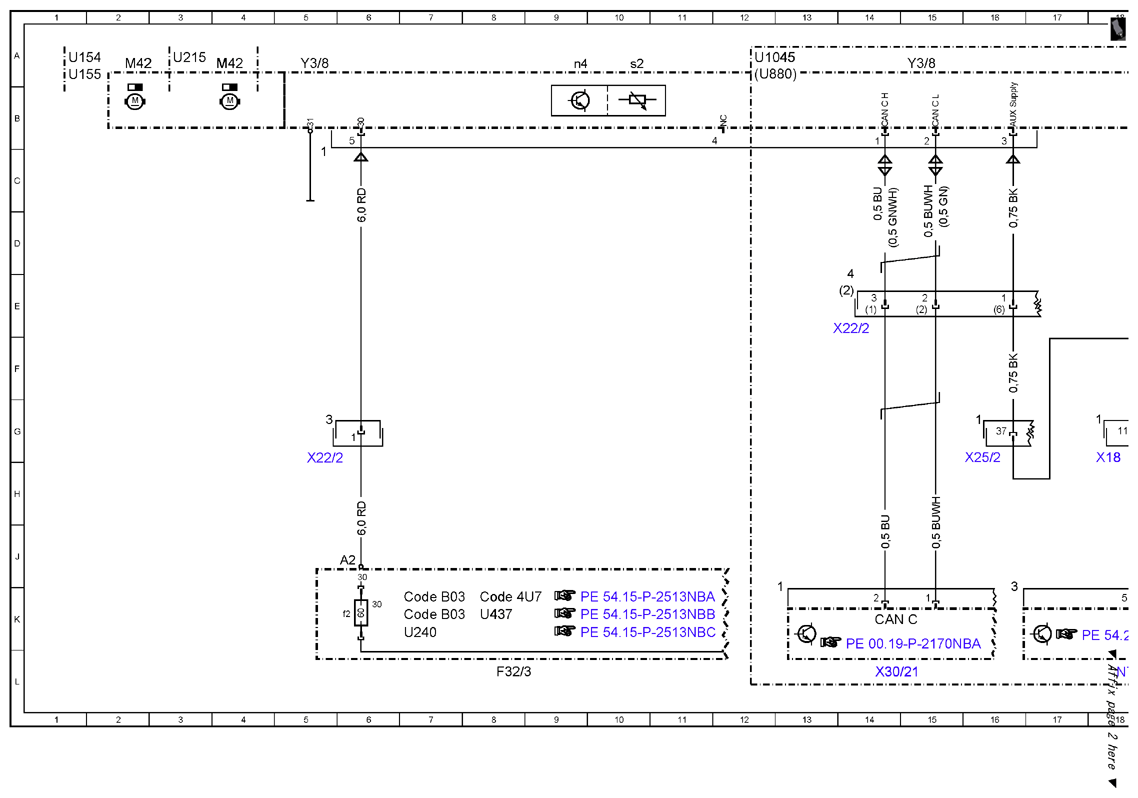

| Y3/8 |
Fully integrated transmission control unit |
5A |
| Y3/8 |
Fully integrated transmission control unit |
15A |

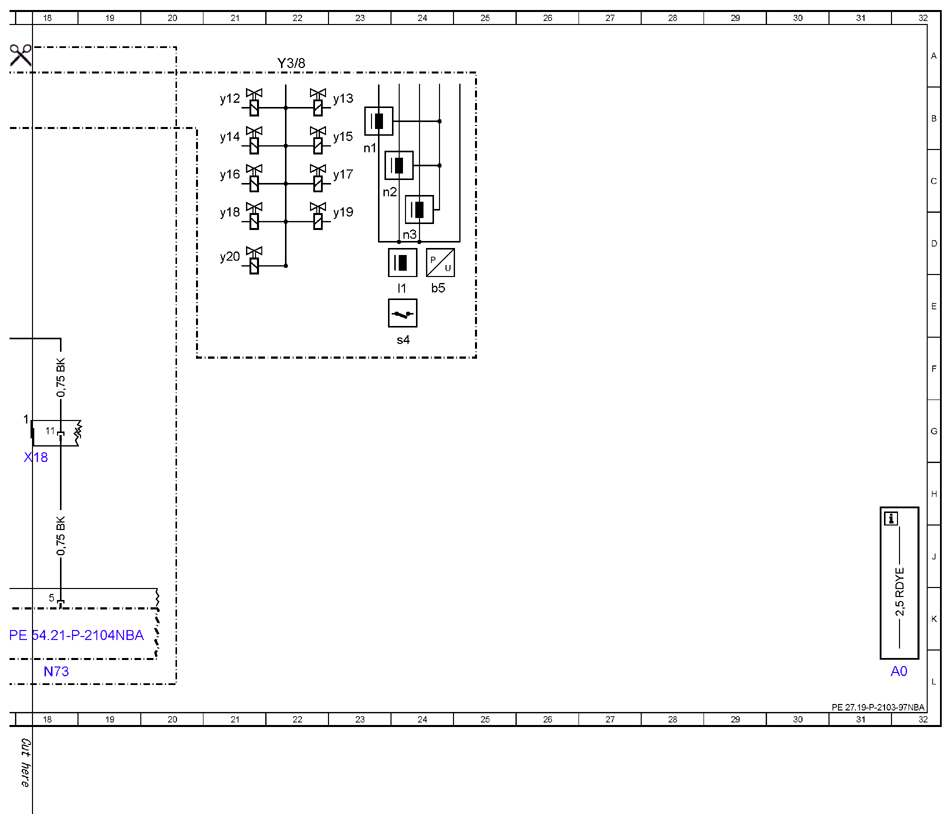

| Y3/8 |
Fully integrated transmission control unit |
22A |
| Y3/8b5 |
Pressure sensor |
24E |
| Y3/8l1 |
Park pawl lift solenoid |
24E |
| Y3/8n1 |
Turbine wheel rpm sensor |
23C |
| Y3/8n2 |
Internal input speed rpm sensor |
23C |
| Y3/8n3 |
Output shaft rpm sensor |
24D |
| Y3/8n4 |
Fully integrated transmission control unit |
9A |
| Y3/8s2 |
Transmission oil temperature sensor |
10A |
| Y3/8s4 |
Park pawl position sensor |
24F |
| Y3/8y12 |
Lubricating pressure solenoid |
21B |
| Y3/8y13 |
K81 clutch control solenoid |
23B |
| Y3/8y14 |
K38 clutch control solenoid |
21B |
| Y3/8y15 |
K27 clutch control solenoid |
23B |
| Y3/8y16 |
B08 multidisk brake control solenoid |
21C |
| Y3/8y17 |
B05 multidisk brake control solenoid |
23C |
| Y3/8y18 |
B06 multidisk brake control solenoid |
21D |
| Y3/8y19 |
Working pressure solenoid |
23D |
| Y3/8y20 |
Torque converter lockup clutch solenoid |
21D |
