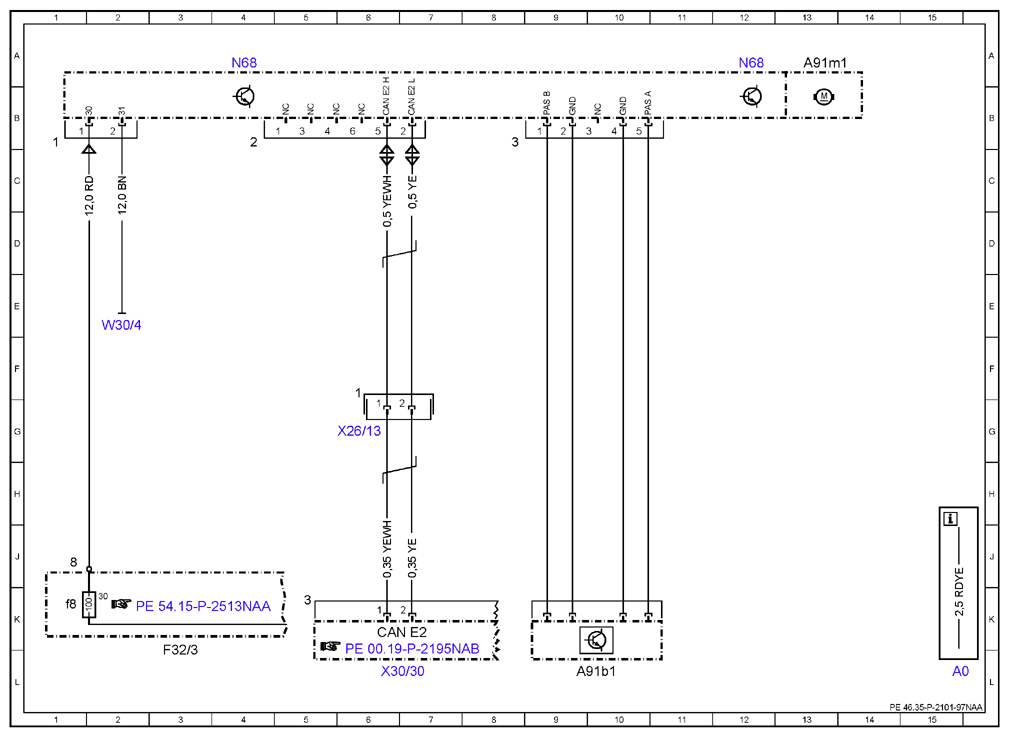

Wiring diagram for electric power steering control unit - PE46.35-P-2101-97NAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A91b1 | Electric power steering torque sensor | 9L |
| A91m1 | Electric power steering actuator motor | 13A |
| CAN E2 | Chassis CAN 2 | 6K |
| F32/3 | Engine compartment prefuse box | 3L |
| F32/3f8 | Fuse 8 | 1K |
| N68 | Electrical power steering control unit | 4A |
| N68 | Electrical power steering control unit | 12A |
| W30/4 | Power steering pump ground point | 2E |
| X26/13 | Electric steering electrical connector | 6G |
| X30/30 | Vehicle floor chassis CAN E2 potential distributor electrical connector | 6L |
