| A0 |
Color code key |
48L |
| Code 494 |
USA version |
18D |
| F32/3 |
Engine compartment prefuse box |
15L |
| F32/3f88 |
Pyrofuse |
14K |
| F4 |
Rear fuse box |
10L |
| F4f136 |
Fuse 136 |
9L |

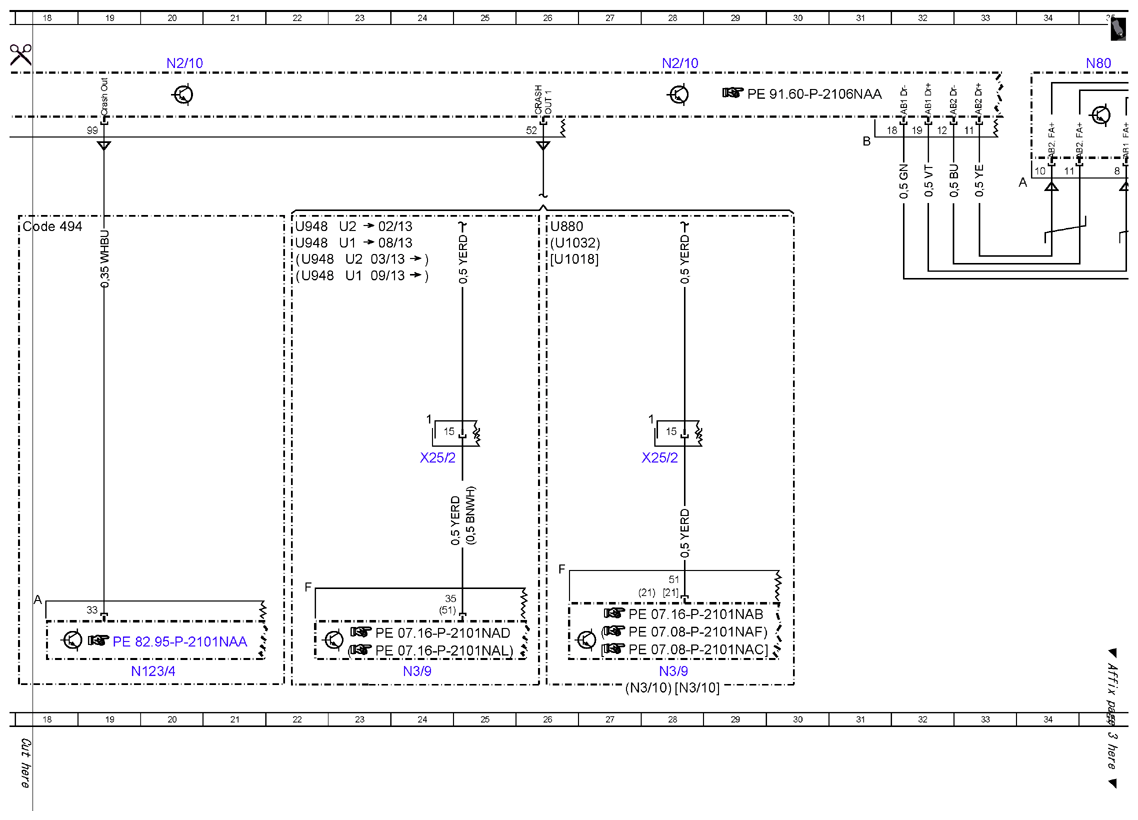

| N123/4 |
Emergency call system control unit |
20L |

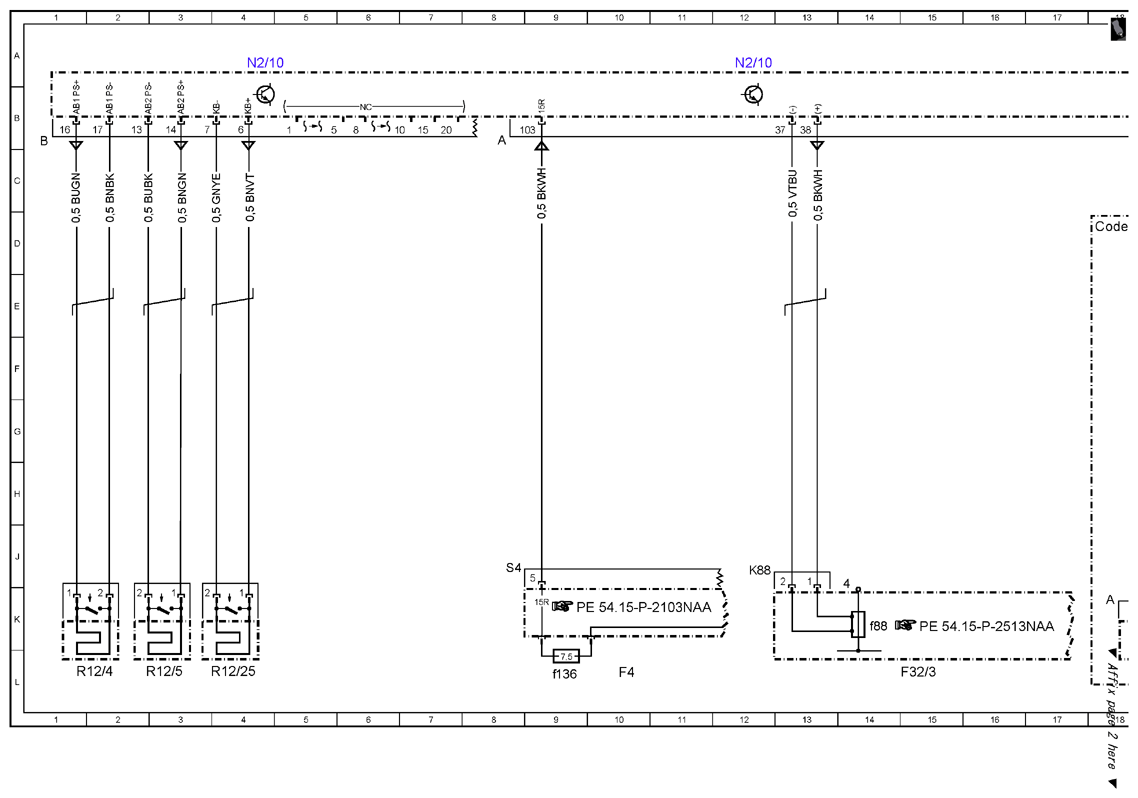

| N2/10 |
Supplemental restraint system control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
12A |
| N2/10 |
Supplemental restraint system control unit |
20A |
| N2/10 |
Supplemental restraint system control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
28L |
| N3/10 |
ME-SFI [ME] control unit |
27L |
| N3/9 |
CDI control unit |
24L |
| N3/9 |
CDI control unit |
28L |

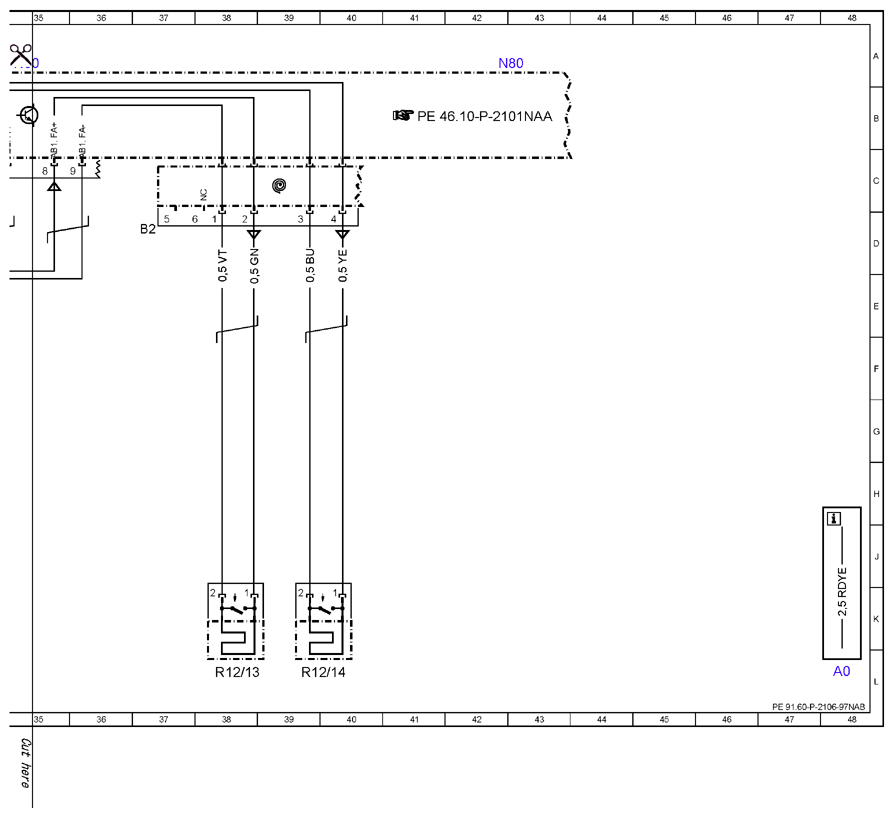

| N80 |
Steering column module control unit |
35A |
| N80 |
Steering column module control unit |
42A |
| R12/13 |
Driver airbag squib 1 |
38L |
| R12/14 |
Driver airbag squib 2 |
39L |
| R12/25 |
Driver knee bag squib |
4L |
| R12/4 |
Front passenger airbag squib 1 |
1L |
| R12/5 |
Front passenger airbag squib 2 |
3L |
| U1 |
Valid for USA |
23E |
| U1 |
Valid for USA |
23D |
| U1018 |
Valid for gasoline engine 276 |
26D |
| U1032 |
Valid for engine 278 and 157 |
26D |
| U2 |
Valid for all except USA |
23D |
| U2 |
Valid for all except USA |
23D |
| U880 |
Valid for engine 642 |
26D |
| U948 |
Valid for diesel engine 651 |
22D |
| U948 |
Valid for diesel engine 651 |
22E |
| U948 |
Valid for diesel engine 651 |
22D |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
24H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
28H |
