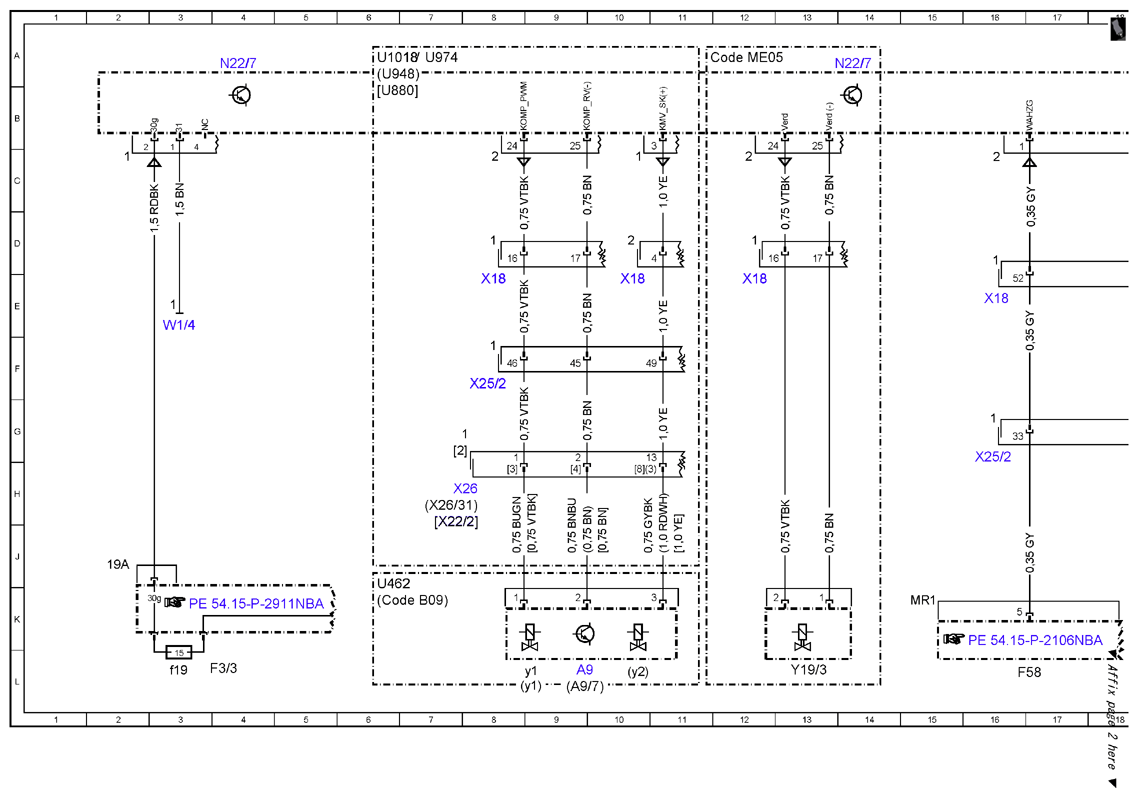

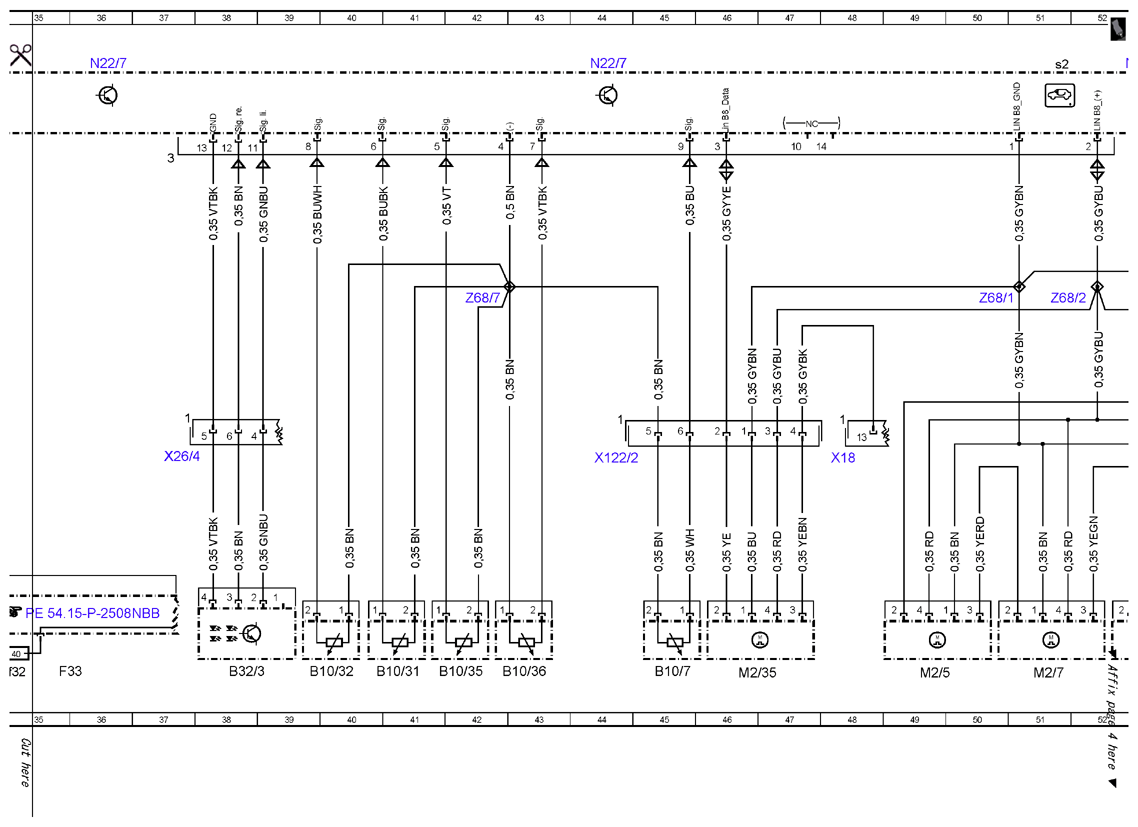

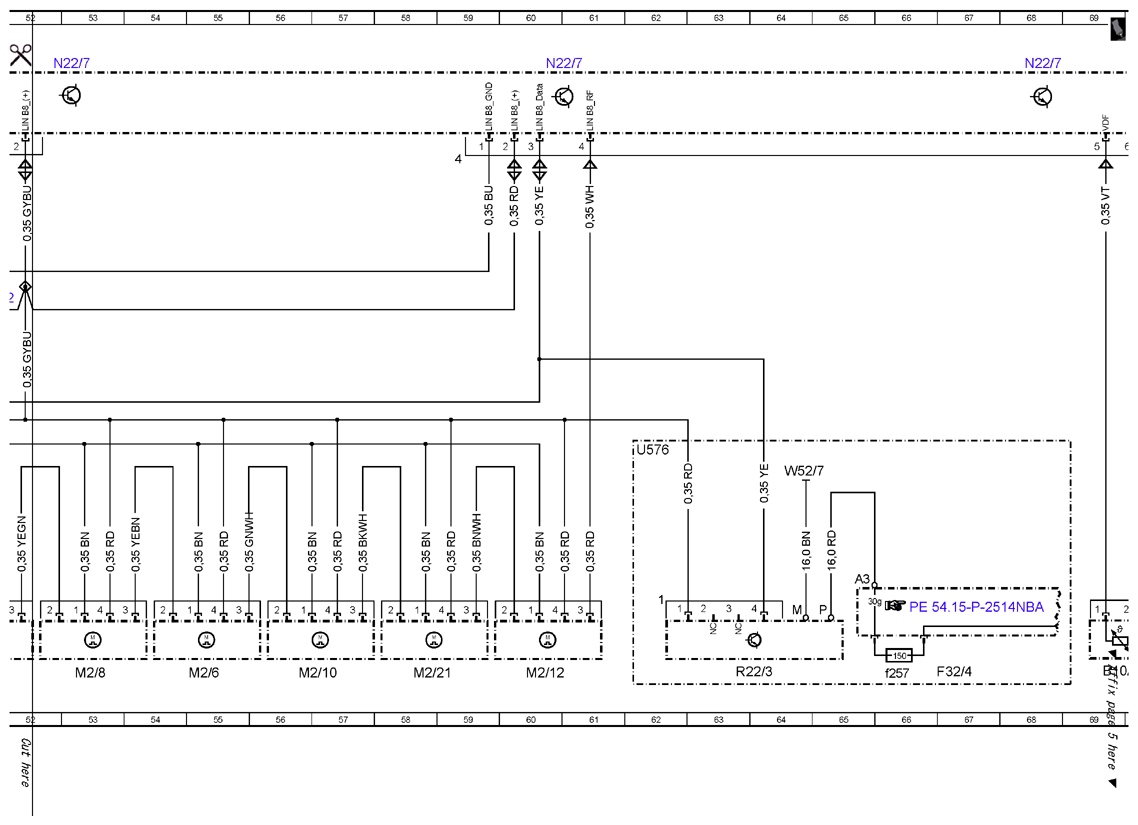

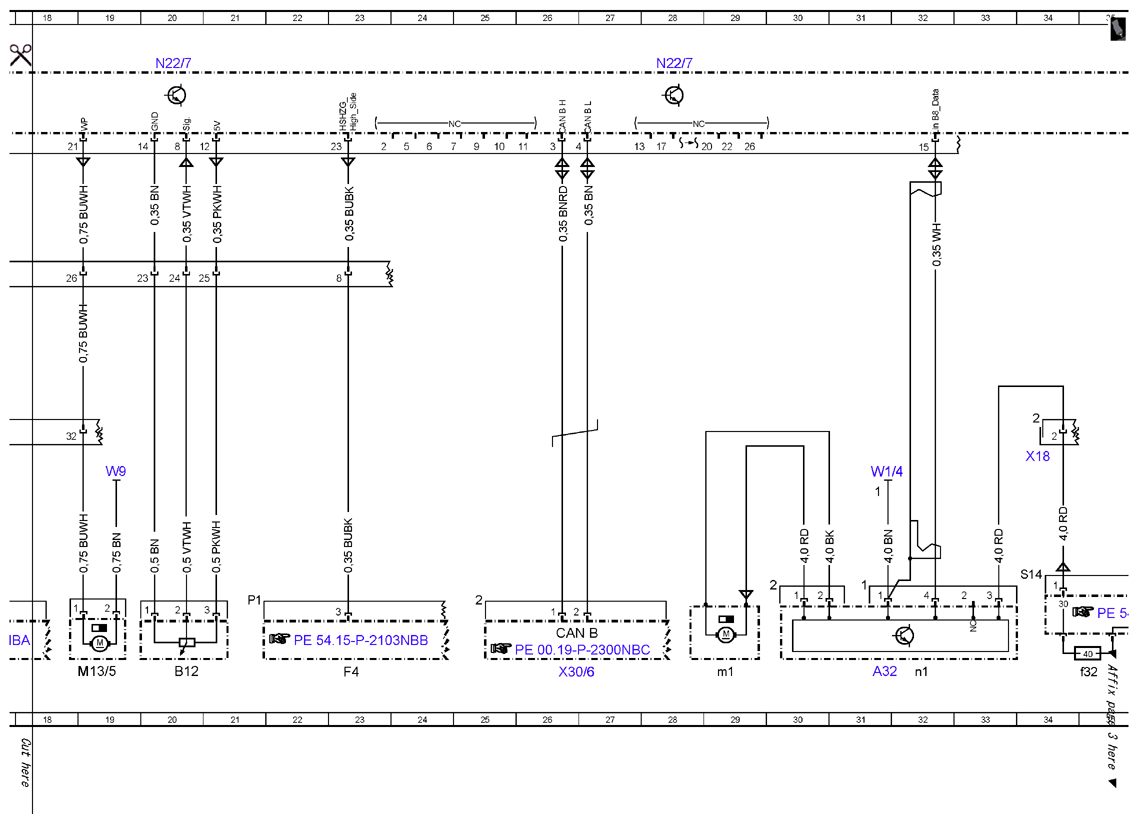

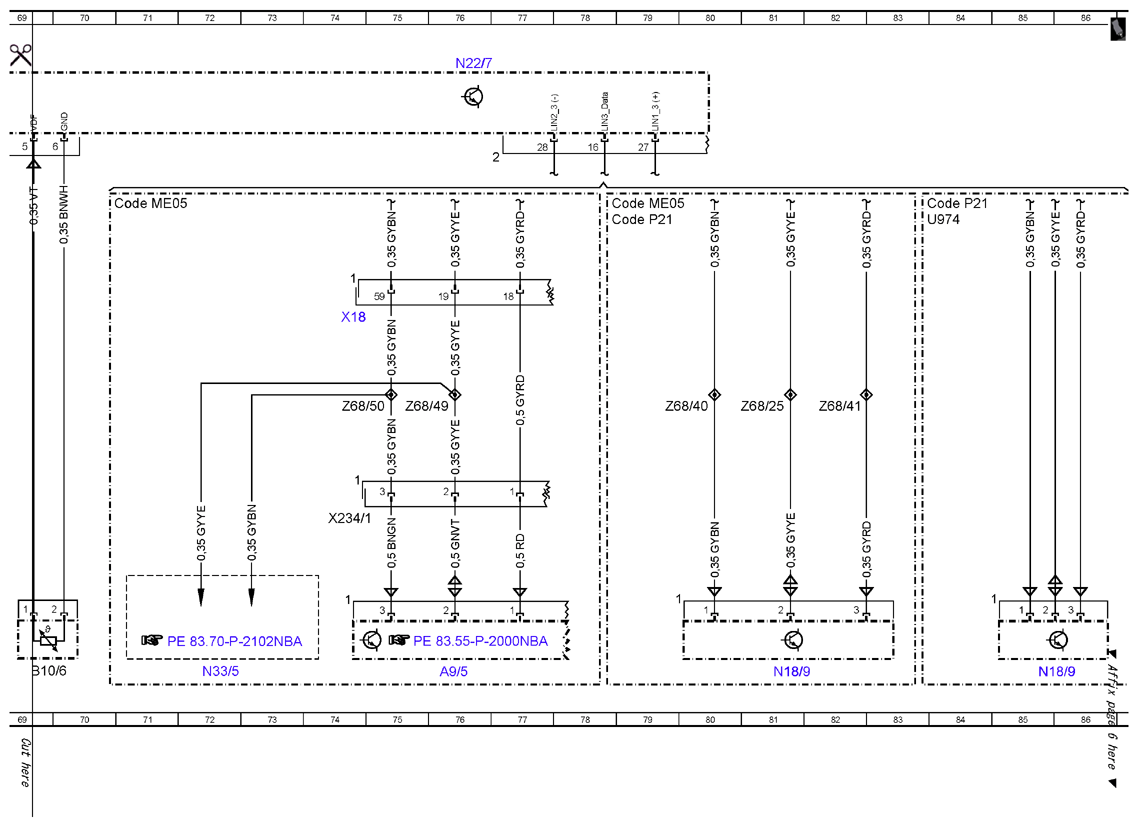

| A0 |
Color code key |
88L |
| A32 |
AC housing |
31L |
| A32m1 |
Blower motor |
29L |
| A32n1 |
Blower regulator |
32L |
| A9 |
Refrigerant compressor |
9L |
| A9/5 |
Electric refrigerant compressor |
76L |
| A9/7 |
Refrigerant compressor with magnetic clutch |
9L |
| A9/7y1 |
Refrigerant compressor regulation valve |
8L |
| A9/7y2 |
Refrigerant compressor magnetic clutch |
10L |
| A9y1 |
Refrigerant compressor regulation valve |
9L |
| B10/31 |
Left side air outlet temperature sensor |
41L |
| B10/32 |
Right side air outlet temperature sensor |
40L |
| B10/35 |
Left footwell air outlet temperature sensor |
42L |
| B10/36 |
Right footwell air outlet temperature sensor |
43L |
| B10/6 |
Evaporator temperature sensor |
69L |
| B10/7 |
Rear air duct air outlet temperature sensor |
45L |
| B12 |
Refrigerant pressure sensor |
20L |
| B32/3 |
Sun sensor |
38L |
| CAN B |
Interior CAN |
26K |
| Code B09 |
Refrigerant compressor with magnetic clutch |
6K |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) |
11A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) |
70C |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUG-IN) |
78C |
| Code P21 |
AIR-BALANCE package |
78D |
| Code P21 |
AIR-BALANCE package |
83C |
| F3/3 |
Cockpit circuit 30g fuse box |
4L |
| F3/3f19 |
Fuse 19 |
3L |
| F32/4 |
Interior prefuse box |
67L |
| F32/4f257 |
Fuse 257 |
66L |
| F33 |
Battery compartment prefuse box |
35L |
| F33f32 |
Fuse 32 |
35L |
| F4 |
Rear fuse box |
23L |
| F58 |
Engine compartment fuse and relay module |
16L |
| M13/5 |
Coolant circulation pump |
19L |
| M2/10 |
Left footwell flap actuator motor |
56L |
| M2/12 |
Left center air outlet flap actuator motor |
60L |
| M2/21 |
Rear actuator motor blend air flap with cut off function |
58L |
| M2/35 |
Rear air distribution flap actuator motor |
46L |
| M2/5 |
Fresh air/air recirculation flap actuator motor |
49L |
| M2/6 |
Left blending air flap actuator |
55L |
| M2/7 |
Right blending air flap actuator |
51L |
| M2/8 |
Left defroster vent flap actuator motor |
53L |
| N18/9 |
Driver side air vent ionizer |
81L |
| N18/9 |
Driver side air vent ionizer |
85L |
| N22/7 |
Automatic air conditioning control and operating unit |
28A |
| N22/7 |
Automatic air conditioning control and operating unit |
36A |
| N22/7 |
Automatic air conditioning control and operating unit |
44A |
| N22/7 |
Automatic air conditioning control and operating unit |
53A |
| N22/7 |
Automatic air conditioning control and operating unit |
60A |
| N22/7 |
Automatic air conditioning control and operating unit |
20A |
| N22/7 |
Automatic air conditioning control and operating unit |
68A |
| N22/7 |
Automatic air conditioning control and operating unit |
14A |
| N22/7 |
Automatic air conditioning control and operating unit |
4A |
| N22/7 |
Automatic air conditioning control and operating unit |
76A |
| N22/7s2 |
Air recirculation mode button |
51A |
| N33/5 |
High-voltage PTC heater |
72L |
| R22/3 |
PTC heater booster |
63L |
| U1018 |
Valid for gasoline engine 276 |
6A |
| U462 |
Valid without code B09 Refrigerant compressor with magnetic clutch |
6K |
| U576 |
Valid for heater booster |
62G |
| U880 |
Valid for engine 642 |
6B |
| U948 |
Valid for diesel engine 651 |
6A |
| U974 |
Not valid for hybrid drive |
7A |
| U974 |
Not valid for hybrid drive |
83D |
| W1/4 |
Cockpit ground point |
31H |
| W1/4 |
Cockpit ground point |
3E |
| W52/7 |
PTC heater booster ground connection |
64H |
| W9 |
Left front ground point (at lamp unit) |
19H |
| X122/2 |
Rear air conditioning electrical connector |
44H |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
16E |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
34G |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
48H |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
8E |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
12E |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
10E |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
74E |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
7J |
| X234/1 |
Refrigerant compressor electrical connector |
74H |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
16G |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
8F |
| X26 |
Interior and engine wiring harness electrical connector |
8H |
| X26/31 |
Engine/engine compartment electrical connector |
7H |
| X26/4 |
Cockpit adapter wiring harness electrical connector |
37G |
| X30/6 |
Cockpit potential distributor electrical connector (CAN) |
26L |
| Y19/3 |
Front evaporator shutoff valve |
13L |
| Z68/1 |
Instrument panel circuit 31 A/C operation LIN connector sleeve |
50E |
| Z68/2 |
Instrument panel A/C operation LIN positive line connector sleeve |
51E |
| Z68/25 |
Local Interconnect Network 3 (A/C) data connector sleeve |
81G |
| Z68/40 |
LIN2 and LIN3 connector sleeve (ground connection) |
80G |
| Z68/41 |
LIN2 and LIN3 connector sleeve (terminal 30) |
82G |
| Z68/49 |
Vehicle interior A/C LIN 3 data line connector sleeve |
75G |
| Z68/50 |
Vehicle interior LIN 2 and LIN 3 ground line connector sleeve |
74G |
| Z68/7 |
Cockpit air conditioning ground connection connector sleeve |
42E |
