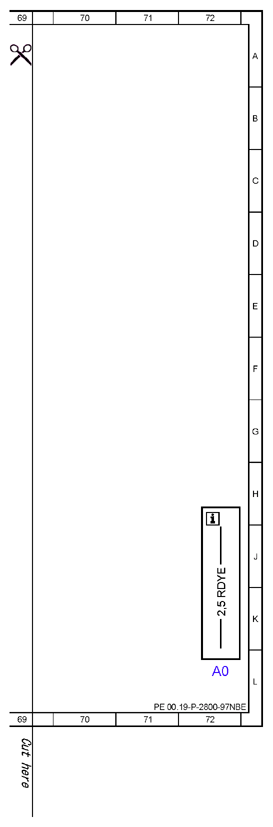

| A0 |
Color code key |
72L |
| A76/1 |
Right front reversible emergency tensioning retractor |
44L |
| A93/1 |
Left 3rd seat row backrest release unit |
40A |
| A93/4 |
Right 2nd seat row release unit |
55A |
| B39/4 |
Rear window glass breakage sensor |
25A |
| B84/3 |
Backup camera |
21A |
| Code 218 |
Backup camera |
18A |
| Code 218 |
Backup camera |
12H |
| Code 293 |
Left and right rear sidebag |
46G |
| Code 501 |
360 degree camera |
12G |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
23A |
| Code 811 |
Extended sound system |
49G |
| Code 843 |
Electric EASY-ENTRY |
51A |
| Code 847 |
3rd seat row |
39A |
| Code 890 |
Tailgate control |
13A |
| Code 920 |
Gasoline direct injection with stratified charge |
5H |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
8H |
| Code U42 |
BlueTEC® diesel exhaust treatment |
5H |
| E19/3 |
Left liftgate license plate lamp |
25L |
| E19/4 |
Right liftgate license plate lamp |
27L |
| E21 |
Center stop lamp |
61L |
| E3/1 |
Inner left rear lamp unit |
18L |
| E4/1 |
Inner right rear lamp unit |
20L |
| E40 |
Tailgate ambient lamp |
17L |
| F4 |
Rear fuse box |
30L |
| M14/7 |
Tailgate central locking motor |
23L |
| M35/2 |
Rear camera cover motor |
14L |
| M53/14 |
Right 2nd seat row head restraint motor |
54A |
| M6/4 |
Tailgate wiper motor |
21L |
| N10 |
SAM control unit |
3L |
| N10/8 |
Rear control unit |
37L |
| N10/8 |
Rear control unit |
46A |
| N121/1 |
Tailgate control unit |
16A |
| N128 |
Electric parking brake control unit |
33L |
| N24/3 |
DC/AC converter control unit |
55L |
| N40/3 |
Sound system amplifier control unit |
50L |
| N69/4 |
Right rear door control unit |
35A |
| R12/12 |
Right rear sidebag squib |
47L |
| S158/10 |
Right 3rd seat row folding backrest switch (right 2nd seat row) |
43A |
| S158/7 |
Left 3rd seat row folding backrest switch (right 2nd seat row) |
42A |
| S159/1 |
Right 2nd seat row easy entry/exit switch |
60A |
| S159/1 |
Right 2nd seat row easy entry/exit switch |
58A |
| S159/1x1 |
Right 2nd seat row easy entry/exit switch electrical connector |
57C |
| S159/1x1 |
Right 2nd seat row easy entry/exit switch electrical connector |
60C |
| S162/2 |
Right 2nd seat row folding backrest switch |
52A |
| S68/6 |
Right rear seat belt buckle switch |
49A |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
49C |
| S88/8 |
Tailgate external operation switch |
27A |
| U12 |
Valid for left-hand drive vehicles |
19G |
| U13 |
Valid for right-hand drive vehicles |
1A |
| U13 |
Valid for right-hand drive vehicles |
19H |
| U154 |
Valid for 166.0 |
18B |
| U154 |
Valid for 166.0 |
26A |
| U154 |
Valid for 166.0 |
38A |
| U154 |
Valid for 166.0 |
49H |
| U154 |
Valid for 166.0 |
24G |
| U154 |
Valid for 166.0 |
62B |
| U155 |
Valid for 166.8 |
26A |
| U155 |
Valid for 166.8 |
18B |
| U155 |
Valid for 166.8 |
28A |
| U155 |
Valid for 166.8 |
38A |
| U155 |
Valid for 166.8 |
48A |
| U155 |
Valid for 166.8 |
46H |
| U155 |
Valid for 166.8 |
24G |
| U155 |
Valid for 166.8 |
62B |
| U215 |
Valid for model series 292 |
18A |
| U215 |
Valid for model series 292 |
13A |
| U215 |
Valid for model series 292 |
23A |
| U215 |
Valid for model series 292 |
28B |
| U215 |
Valid for model series 292 |
33B |
| U215 |
Valid for model series 292 |
49H |
| U215 |
Valid for model series 292 |
62B |
| U481 |
Valid for rear seat belt status indication |
48A |
| U481 |
Valid for rear seat belt status indication |
56A |
| W15/5 |
Left front footwell ground point |
6G |
| W17 |
Right rear seat ground point |
41G |
| W29/3 |
Left C-pillar ground point |
64C |
| W29/4 |
Ground point / right C-pillar |
63C |
| W29/8 |
Left D-pillar ground point |
64C |
| W29/9 |
Right D-pillar ground point |
63C |
| W8 |
Liftgate ground point |
22G |
| W8/1 |
Left tailgate ground point |
63J |
| W8/2 |
Right tailgate ground point |
64J |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
3A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
6A |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
10A |
| X30/38 |
Potential distributor electrical connector (CAN I) |
7L |
| X30/4 |
Right potential distributor electrical connector (CAN) |
40L |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
31A |
| X30/55 |
Front hybrid CAN (CAN L) potential distributor electrical connector |
10L |
| X35/4 |
Right rear door electrical connector |
34D |
| X55/21 |
Left 3rd seat row connector block |
39D |
| X55/6 |
Right rear seat adjustment connector block |
47J |
| X55/6 |
Right rear seat adjustment connector block |
58H |
| Z61/12 |
Left circuit 31 2nd seat row connector sleeve |
54F |
