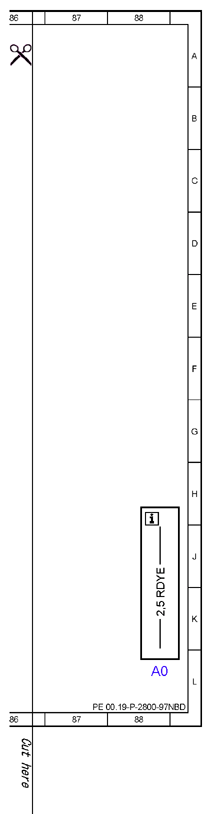

| A0 |
Color code key |
88L |
| A40/13 |
Stereo multifunction camera |
35A |
| A40/5 |
Left rear display |
32A |
| A90 |
COLLISION PREVENTION ASSIST controller unit |
7L |
| A90/4 |
Tuner unit |
27L |
| B48 |
Front passenger seat occupied recognition and ACSR |
65A |
| B51/5 |
Left pop-out window anti-pinch protection contact strip |
73A |
| B51/5x1 |
Left pop-out window anti-pinch protection contact strip electrical connector |
72D |
| B92/1 |
Center rear bumper radar sensor |
71L |
| B92/10 |
Left outer rear bumper radar sensor |
72L |
| B92/11 |
Left outer rear bumper integrated radar sensor |
75L |
| B92/6 |
Right outer rear bumper integrated radar sensor |
77L |
| B92/7 |
Right outer rear bumper radar sensor |
74L |
| Code 23P |
Driver assistance package |
6A |
| Code 23P |
Driver assistance package |
33A |
| Code 23P |
Driver assistance package |
68G |
| Code 258 |
Collision Prevention Assist PLUS (CPA+) |
5G |
| Code 468 |
ACTIVE CURVE SYSTEM |
9G |
| Code 489 |
AIRMATIC |
10A |
| Code 494 |
USA version |
13G |
| Code 501 |
360 degree camera |
21G |
| Code 536 |
SIRIUS satellite radio |
25G |
| Code 537 |
Digital radio |
25H |
| Code 550 |
Trailer hitch |
13H |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
44G |
| Code 582 |
Air conditioning in rear |
78A |
| Code 810 |
Sound system |
17G |
| Code 811 |
Extended sound system |
75A |
| Code 846 |
Running boards |
34G |
| Code 864 |
Rear compartment entertainment |
30A |
| Code 865 |
TV tuner |
25H |
| Code 876 |
Interior lights package |
15G |
| Code B63 |
AMG eSound |
1A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
42A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
47G |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
51A |
| Code ME05 |
HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) |
82A |
| Code U10 |
Front passenger seat with weight detection |
59A |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
64A |
| E17/47 |
Left front illuminated door sill molding |
16L |
| E17/47x1 |
Left front illuminated door sill molding electrical connector |
16J |
| E17/53 |
Left running board courtesy light |
37L |
| E17/53e1 |
Left rear running board courtesy light |
38L |
| E17/53e2 |
Left front running board courtesy light |
36L |
| E18/1 |
Load compartment lamp |
74A |
| E19/1 |
Left license plate lamp |
79L |
| E19/2 |
Right license plate lamp |
80L |
| E3 |
Left rear lamp unit |
65L |
| F58 |
Engine compartment fuse and relay module |
48A |
| H3/1 |
Alarm siren |
45L |
| H4/16 |
Sound generator |
49L |
| M55 |
Intake port shutoff actuator motor |
57A |
| M6/1 |
Wiper motor |
39A |
| N110 |
Weight Sensing System (WSS) control unit |
61A |
| N148 |
360° camera control unit |
23L |
| N2/10 |
Supplemental restraint system control unit |
61L |
| N29/2 |
Rear air conditioning electronic blower controller |
80A |
| N3/10 |
ME-SFI [ME] control unit |
53L |
| N3/10 |
ME-SFI [ME] control unit |
53L |
| N3/9 |
CDI control unit |
58L |
| N32/1 |
Driver seat control unit |
21A |
| N32/2 |
Front passenger seat control unit |
28A |
| N40/1 |
Engine sound control unit |
4A |
| N40/3 |
Sound system amplifier control unit |
19L |
| N40/3 |
Sound system amplifier control unit |
77A |
| N51/3 |
AIRMATIC control unit |
12A |
| N51/3 |
AIRMATIC control unit |
69A |
| N51/6 |
Active roll stabilization control unit |
11L |
| N62/1 |
Radar sensors control unit |
8A |
| N69/1 |
Left front door control unit |
32L |
| N82/2 |
Battery management system control unit |
84A |
| N93/7 |
Chassis gateway control unit |
16A |
| R12/10 |
Front passenger sidebag squib |
24A |
| R12/9 |
Driver sidebag squib |
25A |
| S10/2 |
Right front brake wear sensor |
41L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
40J |
| S88/8 |
Tailgate external operation switch |
81L |
| U1018 |
Valid for gasoline engine 276 |
51G |
| U1032 |
Valid for engine 278 and 157 |
51H |
| U1032 |
Valid for engine 278 and 157 |
51B |
| U1045 |
Not valid for diesel engine 642 |
49A |
| U1073 |
Valid for gasoline engine 276.9 |
51A |
| U12 |
Valid for left-hand drive vehicles |
1A |
| U12 |
Valid for left-hand drive vehicles |
6A |
| U12 |
Valid for left-hand drive vehicles |
14A |
| U12 |
Valid for left-hand drive vehicles |
19A |
| U13 |
Valid for right-hand drive vehicles |
5H |
| U13 |
Valid for right-hand drive vehicles |
23A |
| U13 |
Valid for right-hand drive vehicles |
37A |
| U154 |
Valid for 166.0 |
25J |
| U154 |
Valid for 166.0 |
68H |
| U154 |
Valid for 166.0 |
66A |
| U155 |
Valid for 166.8 |
26J |
| U155 |
Valid for 166.8 |
68H |
| U155 |
Valid for 166.8 |
66G |
| U155 |
Valid for 166.8 |
66B |
| U155 |
Valid for 166.8 |
71A |
| U155 |
Valid for 166.8 |
75A |
| U215 |
Valid for model series 292 |
25J |
| U215 |
Valid for model series 292 |
68J |
| U215 |
Valid for model series 292 |
66G |
| U215 |
Valid for model series 292 |
78G |
| U259 |
Valid for ADS+ |
66A |
| U391 |
Valid for gasoline engine 276.8 |
51B |
| U63 |
Valid for seat adjustment without memory function |
27E |
| U880 |
Valid for engine 642 |
56G |
| U880 |
Valid for engine 642 |
56A |
| U948 |
Valid for diesel engine 651 |
56H |
| W15/2 |
Left footwell ground point |
21G |
| W2 |
Right front ground point at lamp unit |
50G |
| W26 |
SRS control unit ground point |
62G |
| W6 |
Inner left D-pillar ground point |
74F |
| X122/3 |
Rear air conditioning electrical connector |
79C |
| X157/24 |
Left running board courtesy light electrical connector |
35J |
| X174/1 |
Vehicle interior/front bumper electrical connector |
7J |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
44E |
| X26 |
Interior and engine wiring harness electrical connector |
53D |
| X26/31 |
Engine/engine compartment electrical connector |
54D |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
69J |
| X26/40 |
Rear frame floor assembly/bumper electrical connector |
83J |
| X35/1 |
Left front door electrical connector |
32J |
| X35/29 |
Rear bumper interior Blind Spot Monitoring electrical connector |
69H |
| X55/3 |
Driver seat connector block |
25D |
| X55/4 |
Front passenger seat connector block |
23D |
| X55/4 |
Front passenger seat connector block |
60C |
| X55/4 |
Front passenger seat connector block |
64C |
| X55/50 |
Left rear display electrical connector |
31D |
| X58/28 |
Electric-Brake-Control electrical connector |
14L |
| X58/4 |
Load compartment socket |
67L |
| X62/36 |
BWI [BBV]/rpm right front axle electrical connector |
42J |
| Y3/8 |
Fully integrated transmission control unit |
44A |
| Y77/1 |
Boost pressure control pressure transducer |
58A |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
73H |
| Z6 |
Circuit 31 connector sleeve |
57F |
| Z6z1 |
Circuit 31 connector sleeve |
53B |
| Z6z2 |
Circuit 31 connector sleeve |
53B |
| Z75/1z1 |
License plate lamp connector sleeve |
81H |
| Z97 |
Left running board courtesy light circuit 31 connector sleeve |
37J |
