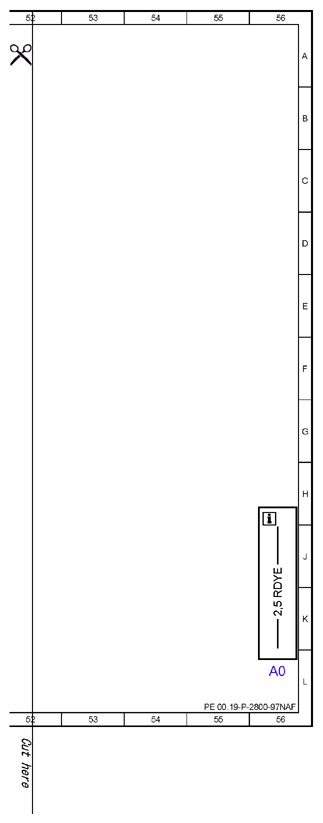

| A0 |
Color code key |
56L |
| A76/1 |
Right front reversible emergency tensioning retractor |
35L |
| A93/1 |
Left 3rd seat row backrest release unit |
37A |
| B39/4 |
Rear window glass breakage sensor |
20A |
| B84/3 |
Backup camera |
14A |
| B84/3x1 |
Backup camera electrical connector |
13D |
| Code 218 |
Backup camera |
12A |
| Code 293 |
Left and right rear sidebag |
37G |
| Code 550 |
Trailer hitch |
17A |
| Code 843 |
Electric EASY-ENTRY |
47B |
| Code 847 |
3rd seat row |
36A |
| Code 882 |
Interior protection (only with ATA [EDW]) |
19A |
| Code 920 |
Gasoline direct injection with stratified charge |
6H |
| Code U42 |
BlueTEC® diesel exhaust treatment |
6H |
| E19/3 |
Left liftgate license plate lamp |
20L |
| E19/4 |
Right liftgate license plate lamp |
21L |
| E3/1 |
Inner left rear lamp unit |
17L |
| E4/1 |
Inner right rear lamp unit |
19L |
| E40 |
Tailgate ambient lamp |
16L |
| F4 |
Rear fuse box |
26A |
| M14/7 |
Tailgate central locking motor |
24L |
| M35/2 |
Rear camera cover motor |
13L |
| M6/4 |
Tailgate wiper motor |
23L |
| N10 |
SAM control unit |
3L |
| N10/8 |
Rear control unit |
31L |
| N10/8 |
Rear control unit |
42A |
| N128 |
Electric parking brake control unit |
28L |
| N69/4 |
Right rear door control unit |
33A |
| R12/11 |
Left rear sidebag squib |
39L |
| R12/12 |
Right rear sidebag squib |
40L |
| S158/10 |
Right 3rd seat row folding backrest switch (right 2nd seat row) |
40A |
| S158/7 |
Left 3rd seat row folding backrest switch (right 2nd seat row) |
38A |
| S159/1 |
Right 2nd seat row easy entry/exit switch |
44L |
| S159/1 |
Right 2nd seat row easy entry/exit switch |
49A |
| S159/1x1 |
Right 2nd seat row easy entry/exit switch electrical connector |
44J |
| S159/1x1 |
Right 2nd seat row easy entry/exit switch electrical connector |
48C |
| S62/24 |
Trailer hitch release switch |
18A |
| S68/6 |
Right rear seat belt buckle switch |
46A |
| S68/6x1 |
Right rear seat belt buckle switch electrical connector |
45C |
| S88/8 |
Tailgate external operation switch |
23A |
| U13 |
Valid for right-hand drive vehicles |
1A |
| U154 |
Valid for 166.0 |
35A |
| U155 |
Valid for 166.8 |
22A |
| U155 |
Valid for 166.8 |
41G |
| U155 |
Valid for 166.8 |
35A |
| U155 |
Valid for 166.8 |
45A |
| U2 |
Valid for all except USA |
17A |
| U3 |
Valid for all except Japan |
12A |
| U480 |
Not valid for rear seat belt status indication |
41H |
| U481 |
Valid for rear seat belt status indication |
47C |
| U482 |
Not valid for code 843 Electrical EASY-ENTRY |
41H |
| W15/5 |
Left front footwell ground point |
6G |
| W17 |
Right rear seat ground point |
34G |
| W8 |
Liftgate ground point |
18G |
| X30/19 |
Vehicle floor chassis CAN E1 potential distributor electrical connector |
3A |
| X30/21 |
Drive train CAN voltage distributor electrical connector |
6A |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
9A |
| X30/38 |
Potential distributor electrical connector (CAN I) |
7L |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
30A |
| X35/4 |
Right rear door electrical connector |
31D |
| X55/21 |
Left 3rd seat row connector block |
36D |
| X55/5 |
Left rear seat adjustment connector block |
38J |
| X55/6 |
Right rear seat adjustment connector block |
43K |
| X55/6 |
Right rear seat adjustment connector block |
39J |
| X55/6 |
Right rear seat adjustment connector block |
50D |
| Z61/13 |
Right circuit 31 2nd seat row connector sleeve |
48E |
