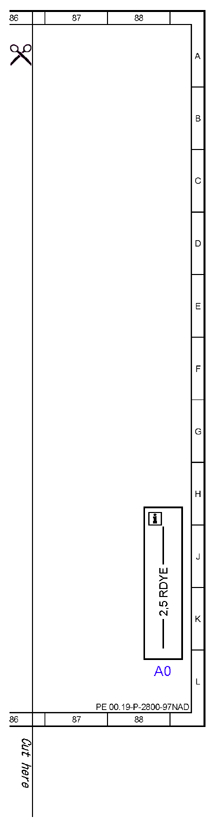

| A0 |
Color code key |
88L |

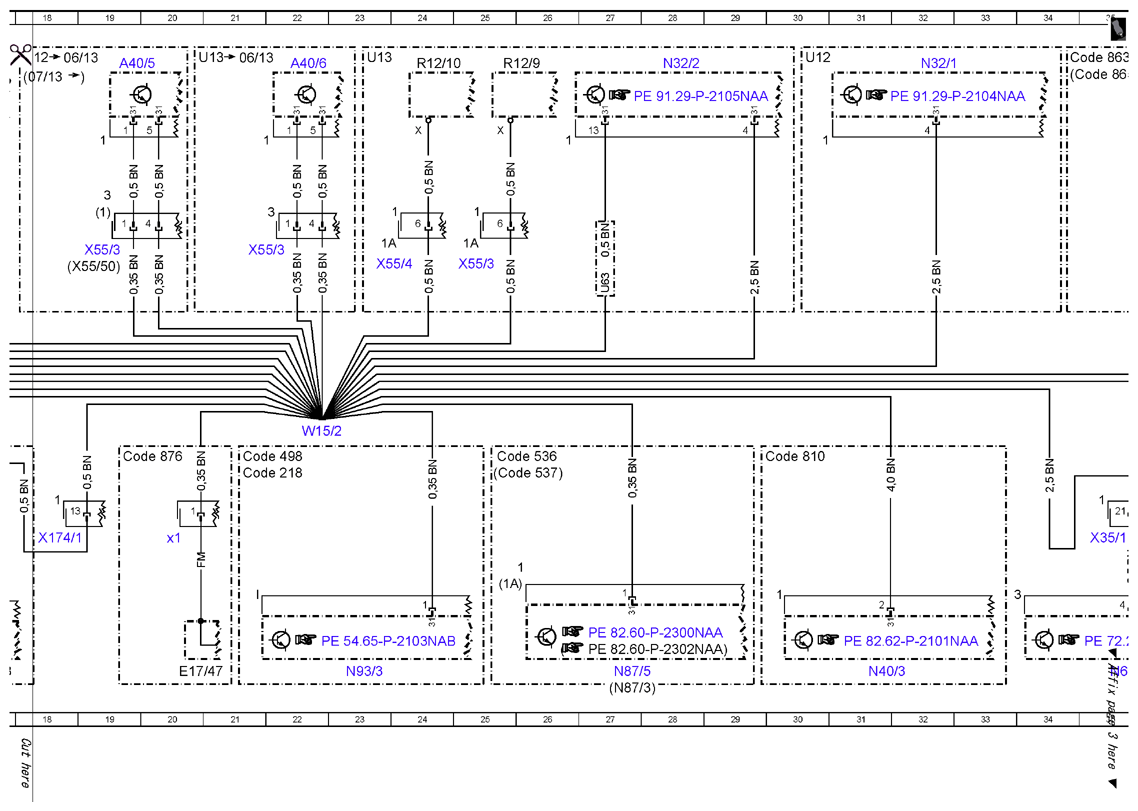

| A40/5 |
Left rear display |
19A |
| A40/6 |
Right rear display |
22A |

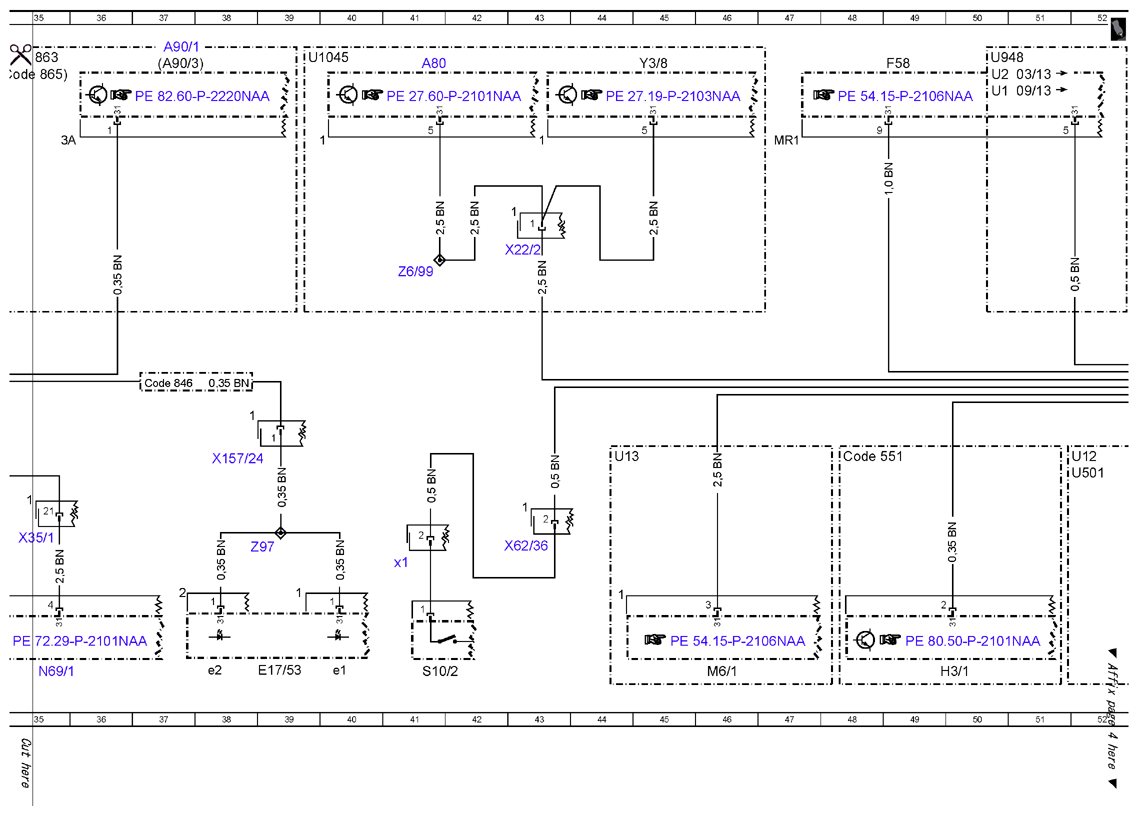

| A80 |
Intelligent servo module for DIRECT SELECT |
41A |
| A90 |
COLLISION PREVENTION ASSIST controller unit |
7L |
| A90/1 |
TV tuner (analog/digital) |
37A |
| A90/3 |
TV digital tuner |
37A |
| B29/2 |
DISTRONIC sensor (DTR) / left front bumper |
16L |
| B29/3 |
DISTRONIC sensor (DTR) / right front bumper |
17L |
| B29/4 |
Left rear bumper intelligent radar sensor |
75L |
| B29/5 |
Right rear bumper intelligent radar sensor |
77L |
| B29/6 |
Left rear bumper radar sensor |
75L |
| B29/7 |
Right rear bumper radar sensor |
77L |
| B48 |
Front passenger seat occupied recognition and ACSR |
72A |
| B51/5 |
Left pop-out window anti-pinch protection contact strip |
74A |
| B51/5x1 |
Left pop-out window anti-pinch protection contact strip electrical connector |
74C |
| B96 |
Intake port shutoff Hall sensor |
60A |
| Code 218 |
Backup camera |
21H |
| Code 234 |
Blind spot assist |
73H |
| Code 237 |
Active Blind Spot Assist |
73G |
| Code 252 |
COLLISION PREVENTION ASSIST |
5H |
| Code 399 |
Front multicontour seats with massage function |
75F |
| Code 468 |
Active roll stabilization |
9G |
| Code 489 |
AIRMATIC |
10A |
| Code 494 |
USA version |
13G |
| Code 498 |
Japan version |
21G |
| Code 501 |
360 degree camera |
1A |
| Code 536 |
SIRIUS satellite radio |
25G |
| Code 537 |
Digital radio |
25H |
| Code 550 |
Trailer hitch |
13H |
| Code 551 |
Anti-theft alarm system (ATA [EDW]) |
48G |
| Code 582 |
Air conditioning in rear |
78G |
| Code 610 |
Night View Assist |
1H |
| Code 810 |
Sound system |
29G |
| Code 811 |
Extended sound system |
77A |
| Code 846 |
Running boards |
37F |
| Code 863 |
Digital/analog TV tuner |
34A |
| Code 865 |
TV tuner |
34A |
| Code 876 |
Interior lights package |
19G |
| Code U10 |
Front passenger seat with weight detection |
66A |
| Code U18 |
Automatic child seat recognition (ACSR[AKSE]) |
71A |
| E17/47 |
Left front illuminated door sill molding |
20L |
| E17/47x1 |
Left front illuminated door sill molding electrical connector |
20J |
| E17/53 |
Left running board courtesy light |
39L |
| E17/53e1 |
Left rear running board courtesy light |
40L |
| E17/53e2 |
Left front running board courtesy light |
38L |
| E18/1 |
Load compartment lamp |
76A |
| E3 |
Left rear lamp unit |
71L |
| F58 |
Engine compartment fuse and relay module |
49A |
| H3/1 |
Alarm siren |
50L |
| M40 |
Multicontour seat pneumatic pump |
75A |
| M6/1 |
Wiper motor |
46L |
| N101 |
Night View Assist control unit |
3L |
| N110 |
Weight Sensing System (WSS) control unit |
68A |

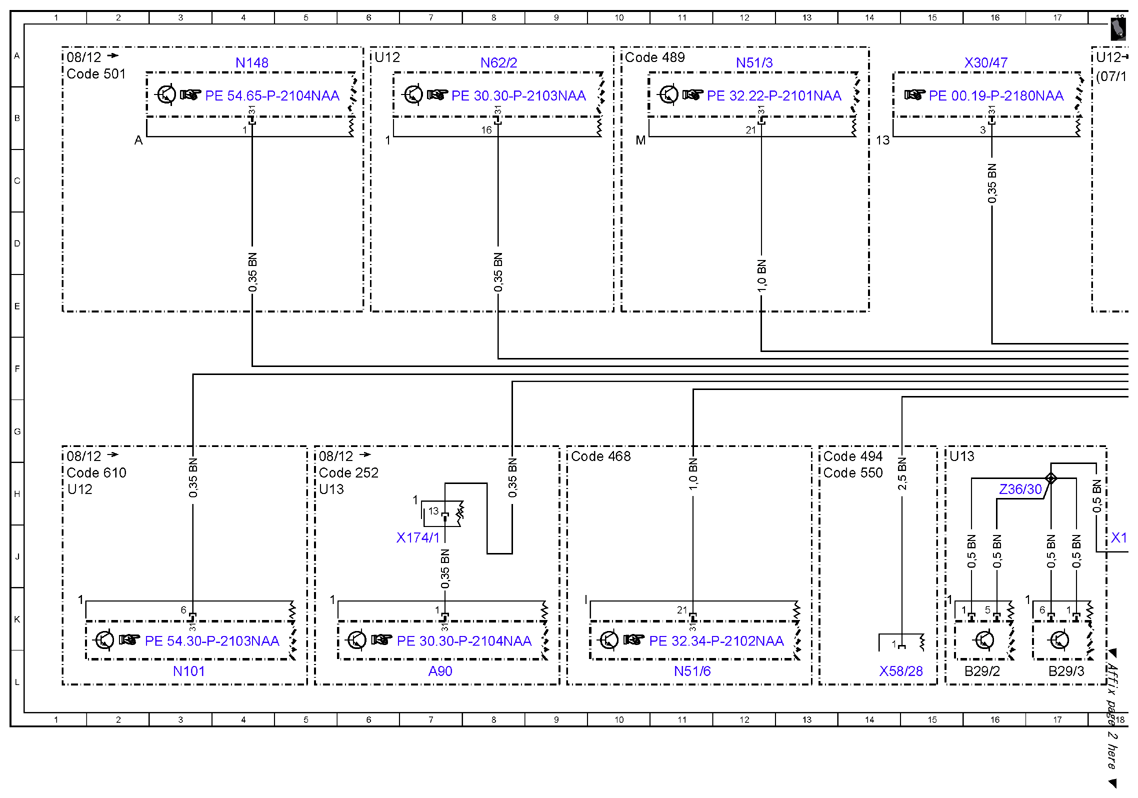

| N148 |
360° camera control unit |
4A |
| N2/10 |
Supplemental restraint system control unit |
68L |
| N29/2 |
Rear air conditioning electronic blower controller |
79L |
| N3/10 |
ME-SFI [ME] control unit |
59L |
| N3/10 |
ME-SFI [ME] control unit |
58L |
| N3/9 |
CDI control unit |
64L |
| N32/1 |
Driver seat control unit |
32A |
| N32/2 |
Front passenger seat control unit |
28A |
| N40/3 |
Sound system amplifier control unit |
31L |
| N40/3 |
Sound system amplifier control unit |
79A |
| N40/9 |
Bass speaker amplifier |
81A |
| N51/3 |
AIRMATIC control unit |
12A |
| N51/6 |
Active roll stabilization control unit |
11L |
| N62/2 |
Video and radar sensor system control unit |
8A |
| N69/1 |
Left front door control unit |
35L |
| N71/1 |
Headlamp control unit |
54L |
| N87/3 |
Digital Audio Broadcasting control unit |
27L |
| N87/5 |
Satellite digital audio radio (SDAR) control unit |
27L |
| N93/3 |
Reversing camera electronics |
23L |
| R12/10 |
Front passenger sidebag squib |
24A |
| R12/9 |
Driver sidebag squib |
25A |
| S10/2 |
Right front brake wear sensor |
41L |
| S10/2x1 |
Right front brake wear sensor electrical connector |
41J |
| U1 |
Valid for USA |
62H |
| U1 |
Valid for USA |
62J |
| U1 |
Valid for USA |
50B |
| U1 |
Valid for USA |
53B |
| U1 |
Valid for USA |
63A |
| U1018 |
Valid for gasoline engine 276 |
56G |
| U1018 |
Valid for gasoline engine 276 |
56A |
| U1032 |
Valid for engine 278 and 157 |
56H |
| U1032 |
Valid for engine 278 and 157 |
56A |
| U1045 |
Not valid for diesel engine 642 |
39A |
| U12 |
Valid for left-hand drive vehicles |
1H |
| U12 |
Valid for left-hand drive vehicles |
6A |
| U12 |
Valid for left-hand drive vehicles |
18A |
| U12 |
Valid for left-hand drive vehicles |
30A |
| U12 |
Valid for left-hand drive vehicles |
52G |
| U13 |
Valid for right-hand drive vehicles |
5H |
| U13 |
Valid for right-hand drive vehicles |
15G |
| U13 |
Valid for right-hand drive vehicles |
20A |
| U13 |
Valid for right-hand drive vehicles |
23A |
| U13 |
Valid for right-hand drive vehicles |
44G |
| U154 |
Valid for 166.0 |
77B |
| U155 |
Valid for 166.8 |
72G |
| U155 |
Valid for 166.8 |
77B |
| U155 |
Valid for 166.8 |
73A |
| U2 |
Valid for all except USA |
62H |
| U2 |
Valid for all except USA |
62H |
| U2 |
Valid for all except USA |
53A |
| U2 |
Valid for all except USA |
50A |
| U2 |
Valid for all except USA |
63A |
| U501 |
Valid for xenon headlamps |
52H |
| U63 |
Valid for seat adjustment without memory function |
27E |
| U880 |
Valid for engine 642 |
61G |
| U880 |
Valid for engine 642 |
59A |
| U948 |
Valid for diesel engine 651 |
61H |
| U948 |
Valid for diesel engine 651 |
61J |
| U948 |
Valid for diesel engine 651 |
61H |
| U948 |
Valid for diesel engine 651 |
61H |
| U948 |
Valid for diesel engine 651 |
50A |
| U948 |
Valid for diesel engine 651 |
53A |
| U948 |
Valid for diesel engine 651 |
62A |
| U964 |
Valid for all except piezo fuel injector |
62B |
| W15/2 |
Left footwell ground point |
22G |

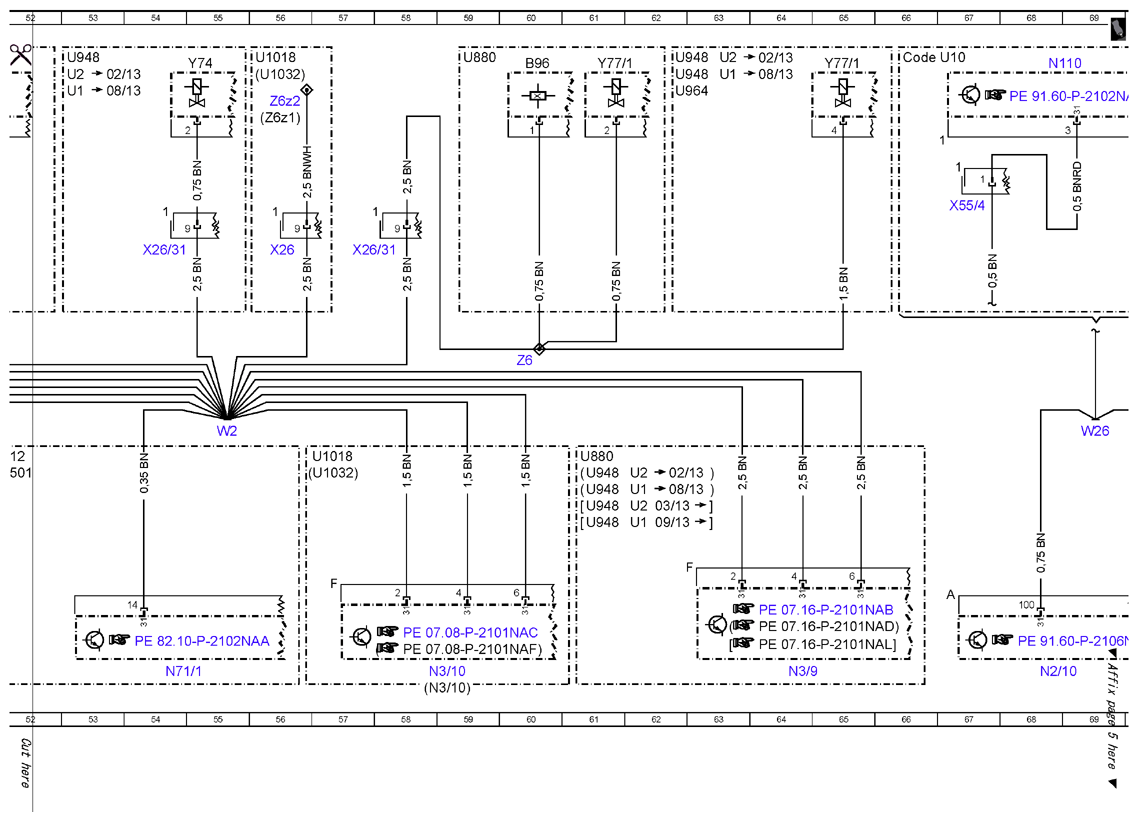

| W2 |
Right front ground point at lamp unit |
55G |
| W26 |
Supplemental restraint system control unit ground point |
69G |

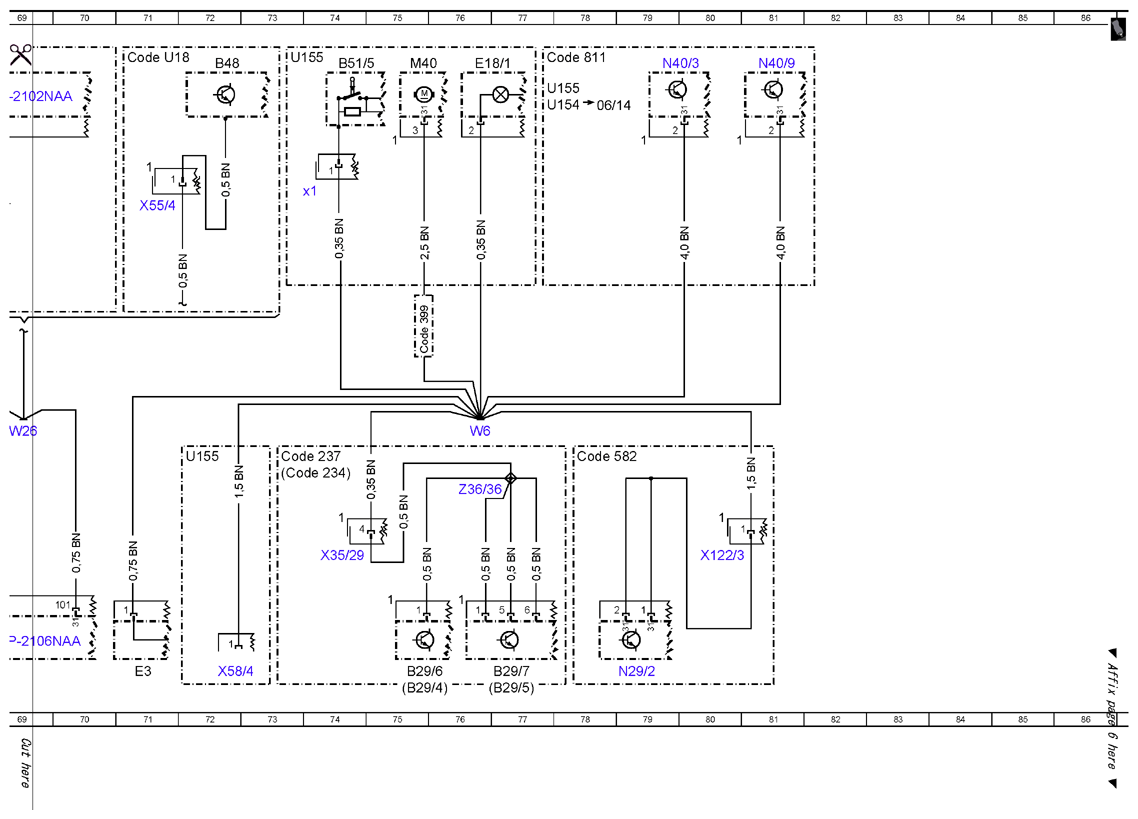

| W6 |
Inner left D-pillar ground point |
76G |
| X122/3 |
Rear air conditioning electrical connector |
80J |
| X157/24 |
Left running board courtesy light electrical connector |
38H |
| X174/1 |
Vehicle interior/front bumper electrical connector |
7J |
| X174/1 |
Vehicle interior/front bumper electrical connector |
18J |
| X22/2 |
Automatic transmission/intelligent servo module electrical connector |
43D |
| X26 |
Interior and engine wiring harness electrical connector |
56D |
| X26/31 |
Engine/engine compartment electrical connector |
57D |
| X26/31 |
Engine/engine compartment electrical connector |
54D |
| X30/47 |
Telematics CAN voltage distributor electrical connector |
16A |
| X35/1 |
Left front door electrical connector |
35J |
| X35/29 |
Rear bumper interior Blind Spot Monitoring electrical connector |
74J |
| X55/3 |
Driver seat connector block |
22D |
| X55/3 |
Driver seat connector block |
19D |
| X55/3 |
Driver seat connector block |
25D |
| X55/4 |
Front passenger seat connector block |
24D |
| X55/4 |
Front passenger seat connector block |
67C |
| X55/4 |
Front passenger seat connector block |
71C |
| X55/50 |
Left rear display electrical connector |
19D |
| X58/28 |
Electric-Brake-Control electrical connector |
14L |
| X58/4 |
Load compartment socket |
72L |
| X62/36 |
BWI [BBV]/rpm right front axle electrical connector |
43J |
| Y3/8 |
Fully integrated transmission control unit |
45A |
| Y74 |
Pressure regulator valve |
55A |
| Y77/1 |
Boost pressure control pressure transducer |
61A |
| Y77/1 |
Boost pressure control pressure transducer |
65A |
| Z36/30 |
Short range radar front sensor ground connector sleeve |
16H |
| Z36/36 |
Rear radar sensors sensor ground connector sleeve |
76H |
| Z6 |
Circuit 31 connector sleeve |
60F |
| Z6/99 |
Transmission circuit 31 connector sleeve |
41E |
| Z6z1 |
Circuit 31 connector sleeve |
56B |
| Z6z2 |
Circuit 31 connector sleeve |
56B |
| Z97 |
Left running board courtesy light circuit 31 connector sleeve |
39J |
