| A0 |
Color code key |
48L |
| A1 |
Instrument cluster |
40L |
| A40/11 |
Multifunction camera |
15L |
| B84/3 |
Backup camera |
23L |

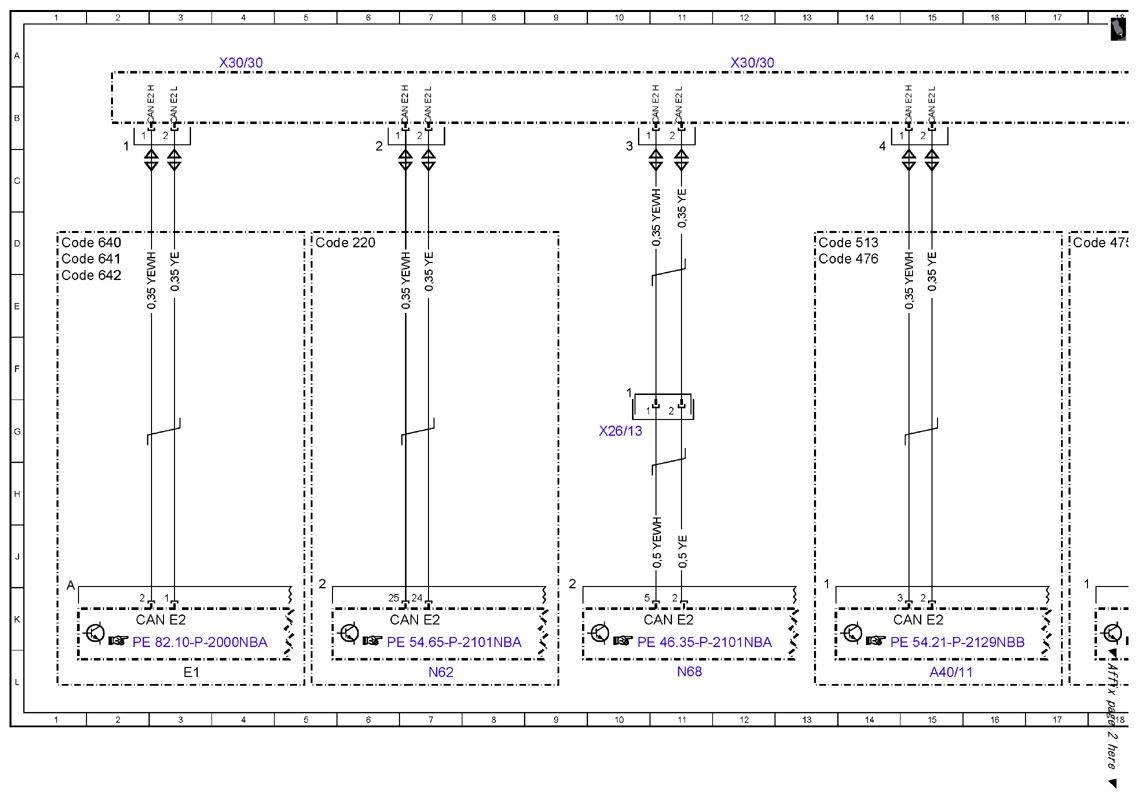

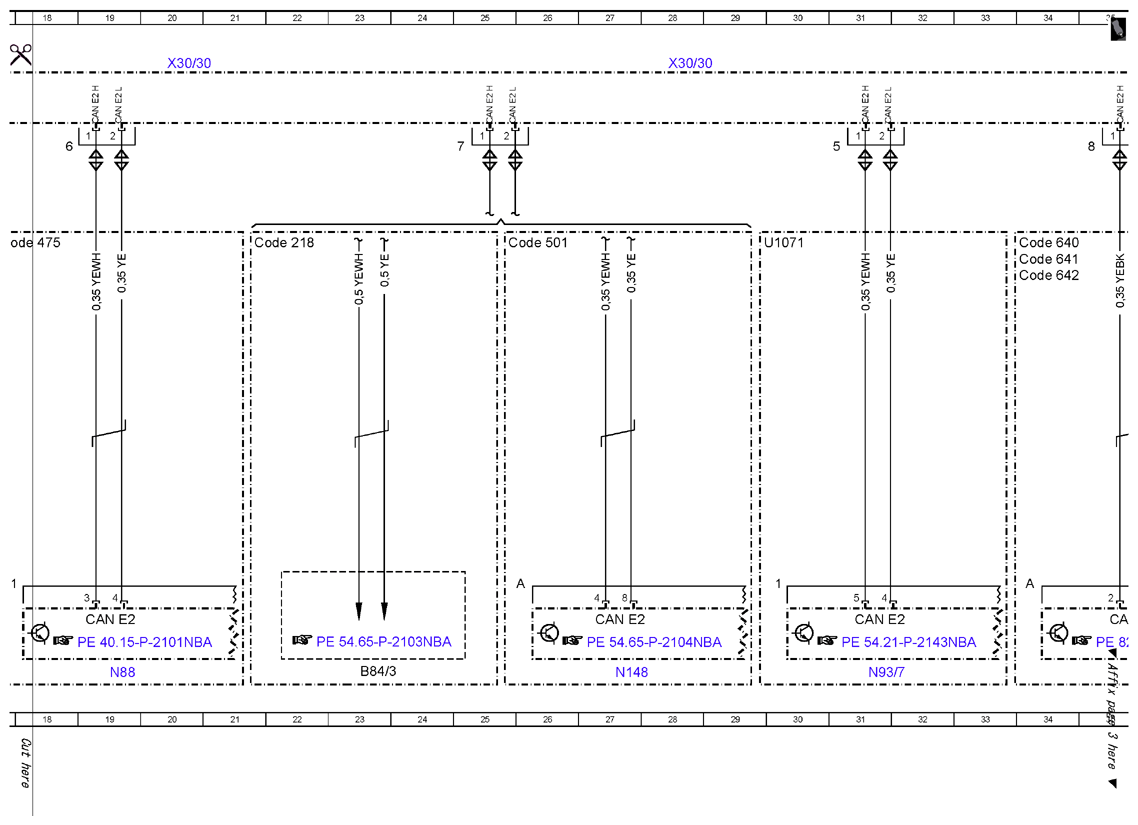

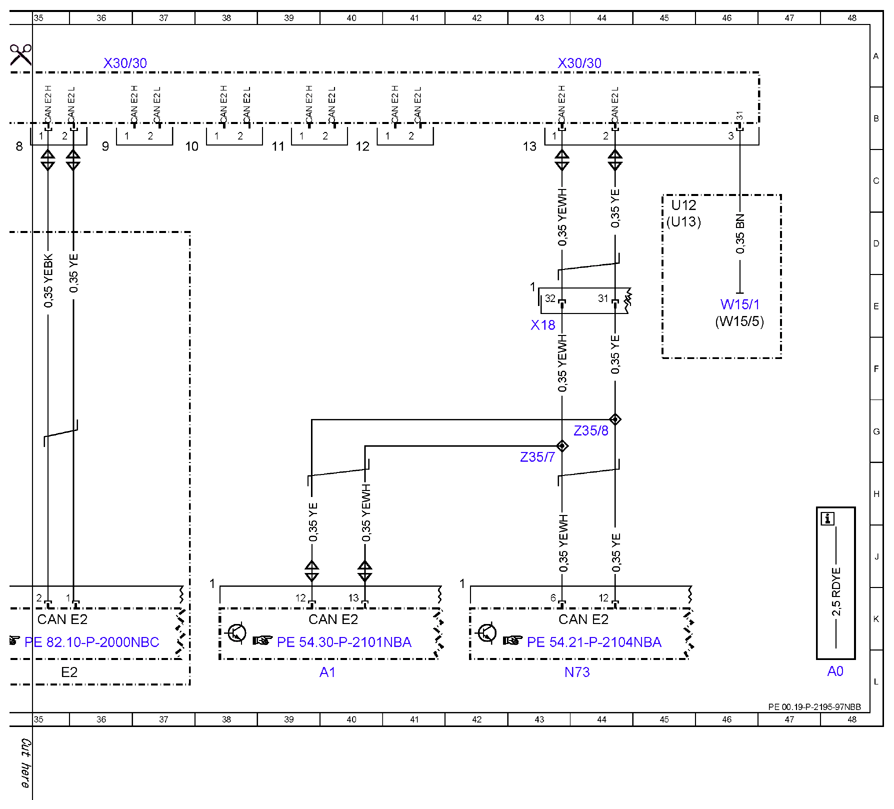

| CAN E2 |
Chassis CAN 2 |
11K |
| CAN E2 |
Chassis CAN 2 |
44K |
| CAN E2 |
Chassis CAN 2 |
15K |
| CAN E2 |
Chassis CAN 2 |
19K |
| CAN E2 |
Chassis CAN 2 |
7K |
| CAN E2 |
Chassis CAN 2 |
40K |
| CAN E2 |
Chassis CAN 2 |
3K |
| CAN E2 |
Chassis CAN 2 |
27K |
| CAN E2 |
Chassis CAN 2 |
35K |
| CAN E2 |
Chassis CAN 2 |
31K |
| Code 218 |
Backup camera |
21D |
| Code 220 |
PARKTRONIC |
5D |
| Code 475 |
Tire pressure monitor |
17D |
| Code 476 |
Lane Keeping Assist |
13D |
| Code 501 |
360 degree camera |
25D |
| Code 513 |
Traffic sign recognition |
13D |
| Code 640 |
High Performance LED |
1D |
| Code 640 |
High Performance LED |
34D |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
1D |
| Code 641 |
Dynamic LED headlamps, left-hand traffic |
34D |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
1E |
| Code 642 |
Dynamic LED headlamps, right-hand traffic |
34E |
| E1 |
Left front lamp unit |
3L |
| E2 |
Right front lamp unit |
35L |
| N148 |
360° camera control unit |
27L |
| N62 |
Parking system control unit |
7L |
| N68 |
Electrical power steering control unit |
11L |
| N73 |
Electronic ignition switch control unit |
44L |
| N88 |
Tire pressure monitor control unit |
19L |
| N93/7 |
Chassis gateway control unit |
31L |
| U1071 |
Valid for stereo multifunction camera |
29D |
| U12 |
Valid for left-hand drive vehicles |
45C |
| U13 |
Valid for right-hand drive vehicles |
45D |
| W15/1 |
Right footwell ground point |
46E |
| W15/5 |
Left front footwell ground point |
46E |
| X18 |
Vehicle interior and harness for tail lamp electrical connector |
43E |
| X26/13 |
Electric steering electrical connector |
10G |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
4A |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
12A |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
20A |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
28A |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
36A |
| X30/30 |
Vehicle floor chassis CAN E2 potential distributor electrical connector |
43A |
| Z35/7 |
CAN bus high cockpit bus node |
43G |
| Z35/8 |
CAN bus low cockpit bus node |
44G |
