Location of line connections and connectors, engine compartment, left - GF00.19-P-1001-01NAA

MODEL 166, 292

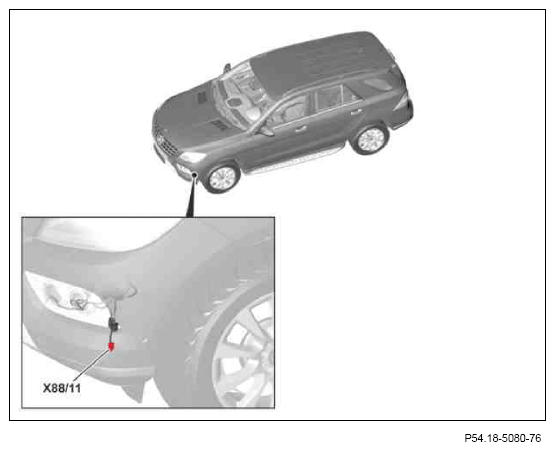

Fig 1: Left Engine Compartment Line Connections And Plug Connectors Location (1 Of 5)

Courtesy of MERCEDES-BENZ USA

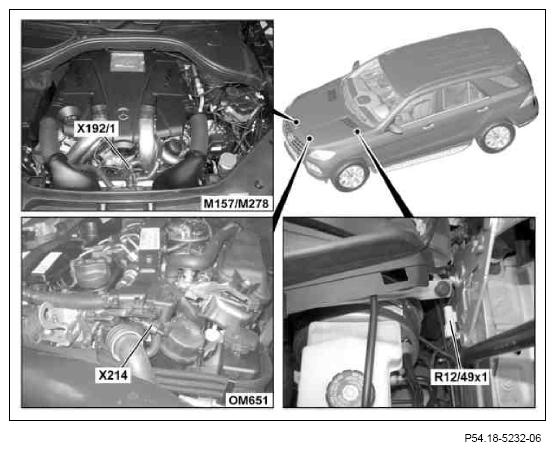

Fig 2: Left Engine Compartment Line Connections And Plug Connectors Location (2 Of 5)

Courtesy of MERCEDES-BENZ USA

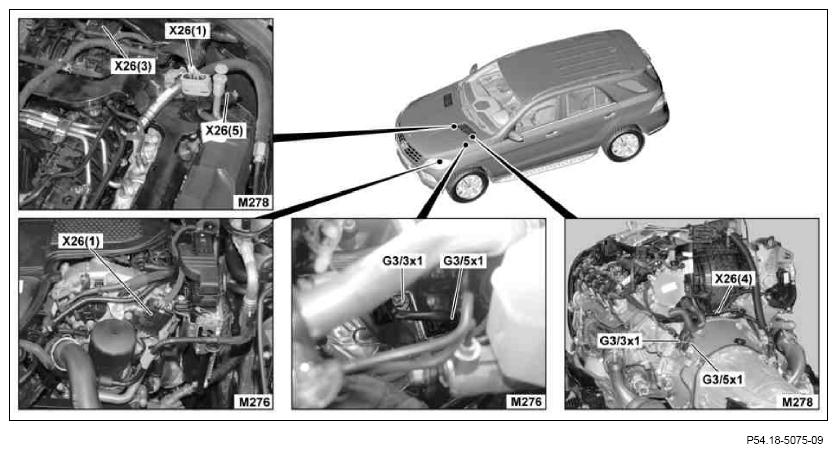

Fig 3: Left Engine Compartment Line Connections And Plug Connectors Location (3 Of 5)

Courtesy of MERCEDES-BENZ USA

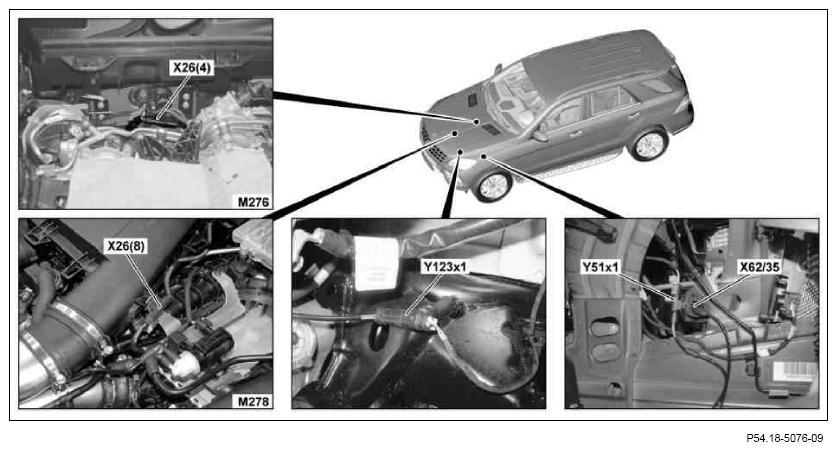

Fig 4: Left Engine Compartment Line Connections And Plug Connectors Location (4 Of 5)

Courtesy of MERCEDES-BENZ USA

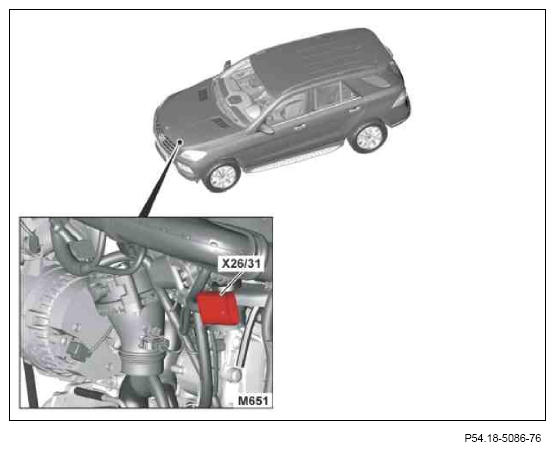

Fig 5: Left Engine Compartment Line Connections And Plug Connectors Location (5 Of 5)

Courtesy of MERCEDES-BENZ USA
