Wiring Diagram Rear Control Unit - PE54.21-P-2110-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

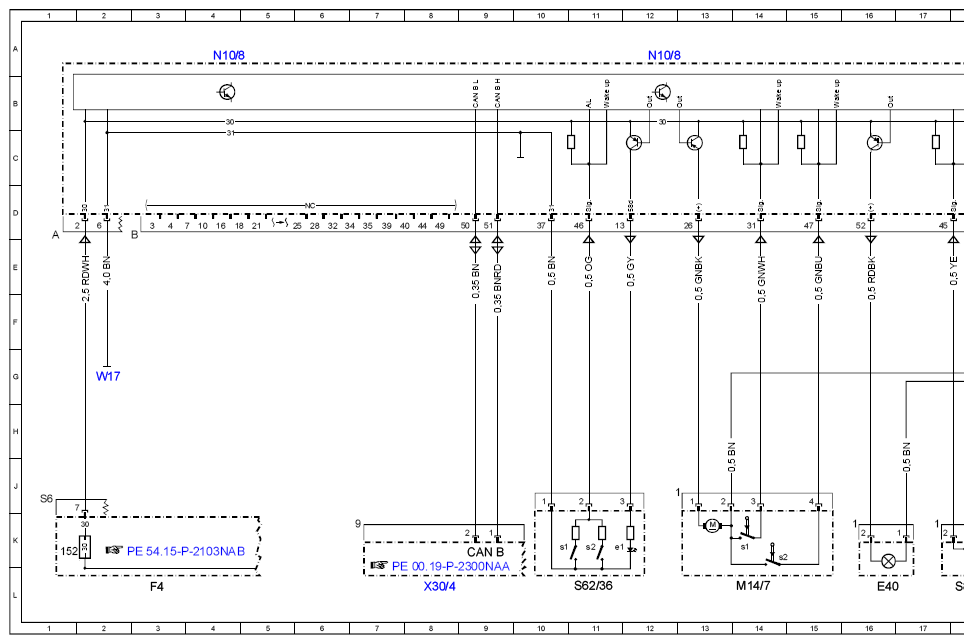

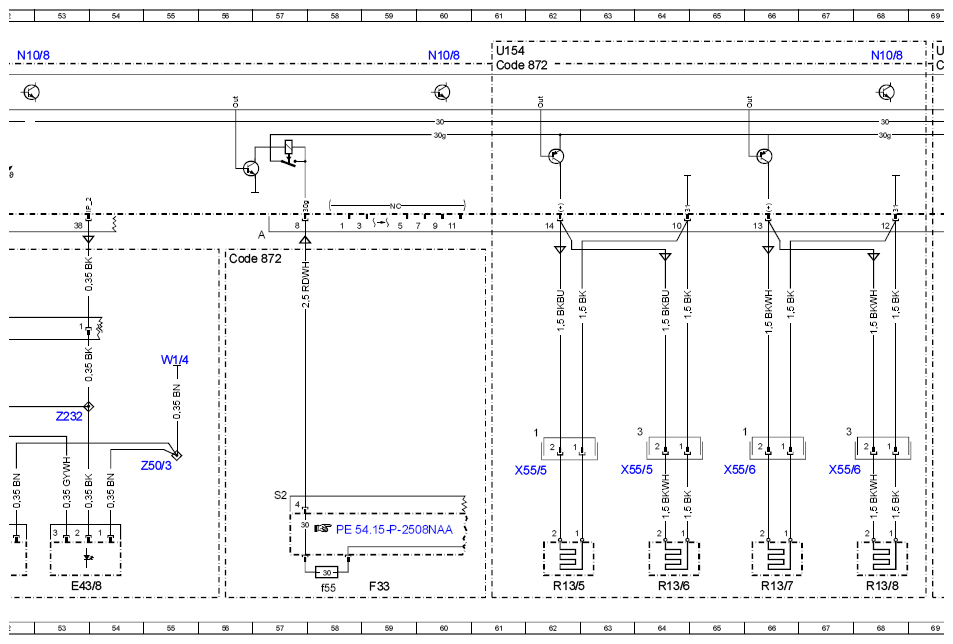

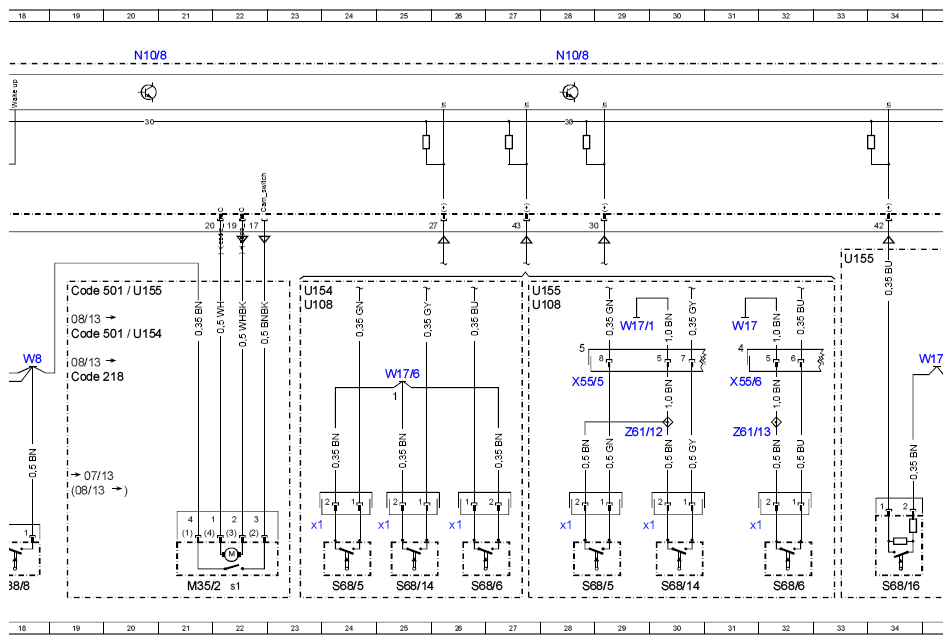

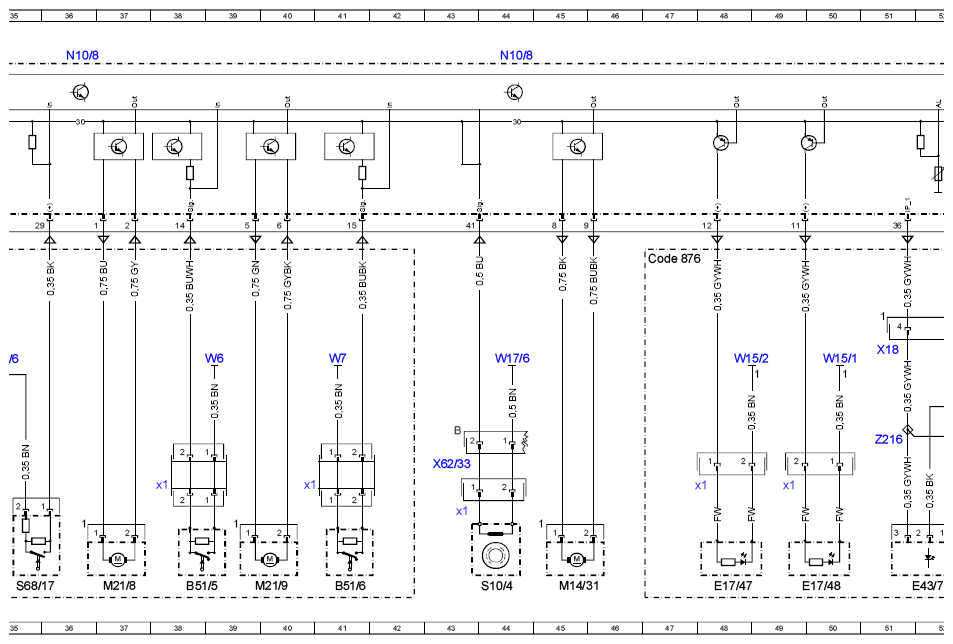

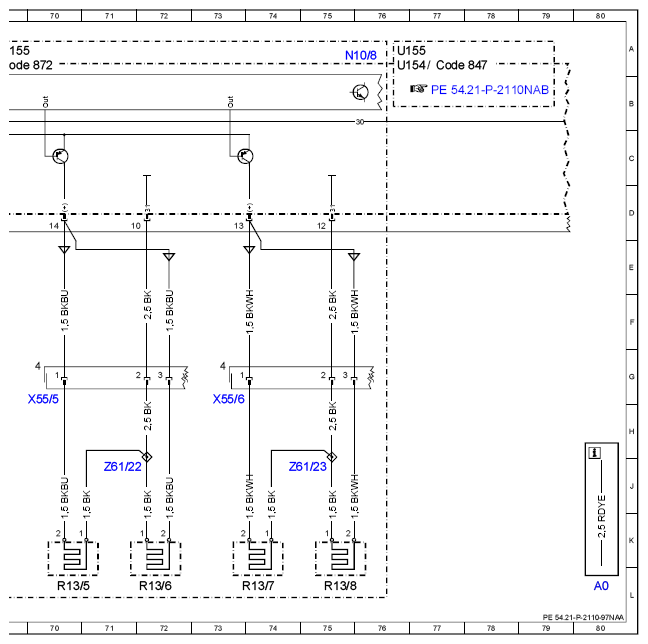

MODEL 166 up to model year 2016 Control unit N10/8, Sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 80L |
| B51/5 | Left pop-out window anti-pinch protection contact strip | 38L |
| B51/5x1 | Left pop-out window anti-pinch protection contact strip electrical connector | 38J |
| B51/6 | Right pop-out window anti-pinch protection contact strip | 41L |
| B51/6x1 | Right pop-out window anti-pinch protection contact strip electrical connector | 40J |
| CAN B | Interior CAN | 9K |
| Code 218 | Backup camera | 19G |
| Code 501 | 360 degree camera | 19F |
| Code 501 | 360 degree camera | 19F |
| Code 847 | 3rd seat row | 77A |
| Code 872 | Left and right rear seat heaters | 56E |
| Code 872 | Left and right rear seat heaters | 61A |
| Code 872 | Left and right rear seat heaters | 69A |
| Code 876 | Interior lights package | 47E |
| E17/47 | Left front illuminated door sill molding | 48L |
| E17/47x1 | Left front illuminated door sill molding electrical connector | 48J |
| E17/48 | Right front illuminated door sill molding | 50L |
| E17/48x1 | Right front illuminated door sill molding electrical connector | 49J |
| E40 | Tailgate ambient lamp | 16L |
| E43/7 | Driver-side instrument panel ambiance illumination | 52L |
| E43/8 | Passenger-side instrument panel ambiance illumination | 53L |
| F33 | Battery compartment prefuse box | 59L |
| F33f55 | Fuse 55 | 58L |
| F4 | Rear fuse box | 3L |
| F4f152 | Fuse 152 | 1K |
| M14/31 | Tailgate locking element | 45L |
| M14/7 | Tailgate central locking motor | 14L |
| M14/7s1 | Tailgate rotary tumbler switch | 14K |
| M14/7s2 | Liftgate locking pawl switch | 14K |
| M21/8 | Left vent window motor | 37L |
| M21/9 | Right vent window motor | 40L |
| M35/2 | Rear camera cover motor | 21L |
| M35/2s1 | Rear camera cover motor switch | 22L |
| N10/8 | Rear control unit | 4A |
| N10/8 | Rear control unit | 12A |
| N10/8 | Rear control unit | 28A |
| N10/8 | Rear control unit | 20A |
| N10/8 | Rear control unit | 36A |
| N10/8 | Rear control unit | 44A |
| N10/8 | Rear control unit | 52A |
| N10/8 | Rear control unit | 60A |
| N10/8 | Rear control unit | 68A |
| N10/8 | Rear control unit | 75A |
| R13/5 | Left rear seat sitting surface heated cushion | 62L |
| R13/5 | Left rear seat sitting surface heated cushion | 70L |
| R13/6 | Left rear backrest heated cushion | 64L |
| R13/6 | Left rear backrest heated cushion | 72L |
| R13/7 | Right rear seat sitting surface heated cushion | 66L |
| R13/7 | Right rear seat sitting surface heated cushion | 74L |
| R13/8 | Right rear backrest heater pad | 68L |
| R13/8 | Right rear backrest heater pad | 75L |
| S10/4 | Right rear brake wear sensor | 44L |
| S10/4x1 | Right rear brake wear sensor electrical connector | 43K |
| S62/36 | Tailgate control button | 11L |
| S62/36e1 | Liftgate control button symbol illumination | 11K |
| S62/36s1 | Close liftgate button | 10K |
| S62/36s2 | Close and lock liftgate button | 11K |
| S68/14 | Center rear seat belt buckle switch | 25L |
| S68/14 | Center rear seat belt buckle switch | 30L |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 25K |
| S68/14x1 | Center rear seat belt buckle switch electrical connector | 29K |
| S68/16 | Left third row seat belt buckle switch | 34L |
| S68/17 | Right third row seat belt buckle switch | 35L |
| S68/5 | Left rear seat belt buckle switch | 28L |
| S68/5 | Left rear seat belt buckle switch | 24L |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 23K |
| S68/5x1 | Left rear seat belt buckle switch electrical connector | 28K |
| S68/6 | Right rear seat belt buckle switch | 26L |
| S68/6 | Right rear seat belt buckle switch | 32L |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 26K |
| S68/6x1 | Right rear seat belt buckle switch electrical connector | 31K |
| S88/8 | Tailgate external operation switch | 18L |
| U108 | Valid for rear seat belt buckles | 23F |
| U108 | Valid for rear seat belt buckles | 27F |
| U154 | Valid for 166.0 | 23F |
| U154 | Valid for 166.0 | 61A |
| U154 | Valid for 166.0 | 20F |
| U154 | Valid for 166.0 | 76A |
| U155 | Valid for 166.8 | 27F |
| U155 | Valid for 166.8 | 33E |
| U155 | Valid for 166.8 | 69A |
| U155 | Valid for 166.8 | 76A |
| U155 | Valid for 166.8 | 20F |
| W1/4 | Cockpit ground point | 55G |
| W15/1 | Right footwell ground point | 50G |
| W15/2 | Left footwell ground point | 48G |
| W17 | Right rear seat ground point | 31F |
| W17 | Right rear seat ground point | 2G |
| W17/1 | Left rear seat ground point | 29F |
| W17/6 | Rear seat crossmember ground point | 25G |
| W17/6 | Rear seat crossmember ground point | 35G |
| W17/6 | Rear seat crossmember ground point | 44G |
| W6 | Inner left D-pillar ground point | 39G |
| W7 | Right rear center section ground point | 41G |
| W8 | Liftgate ground point | 18G |
| X18 | Vehicle interior and harness for taillamp electrical connector | 51G |
| X30/4 | Right potential distributor electrical connector (CAN) | 8L |
| X55/5 | Left rear seat adjustment connector block | 28G |
| X55/5 | Left rear seat adjustment connector block | 62J |
| X55/5 | Left rear seat adjustment connector block | 64J |
| X55/5 | Left rear seat adjustment connector block | 70G |
| X55/6 | Right rear seat adjustment connector block | 31G |
| X55/6 | Right rear seat adjustment connector block | 65J |
| X55/6 | Right rear seat adjustment connector block | 67J |
| X55/6 | Right rear seat adjustment connector block | 73G |
| X62/33 | Rear axle electrical connector, right distributor | 43J |
| Z216 | Multi-color ambiance illumination connector sleeve | 51H |
| Z232 | Ambiance illumination connector sleeve | 53H |
| Z50/3 | Circuit 31 instrument panel connector sleeve | 55J |
| Z61/12 | Left circuit 31 2nd seat row connector sleeve | 29H |
| Z61/13 | Right circuit 31 2nd seat row connector sleeve | 31H |
| Z61/22 | Left 2nd seat row seat heater ground line connector sleeve | 71J |
| Z61/23 | Right 2nd seat row seat heater ground line connector sleeve | 75J |
