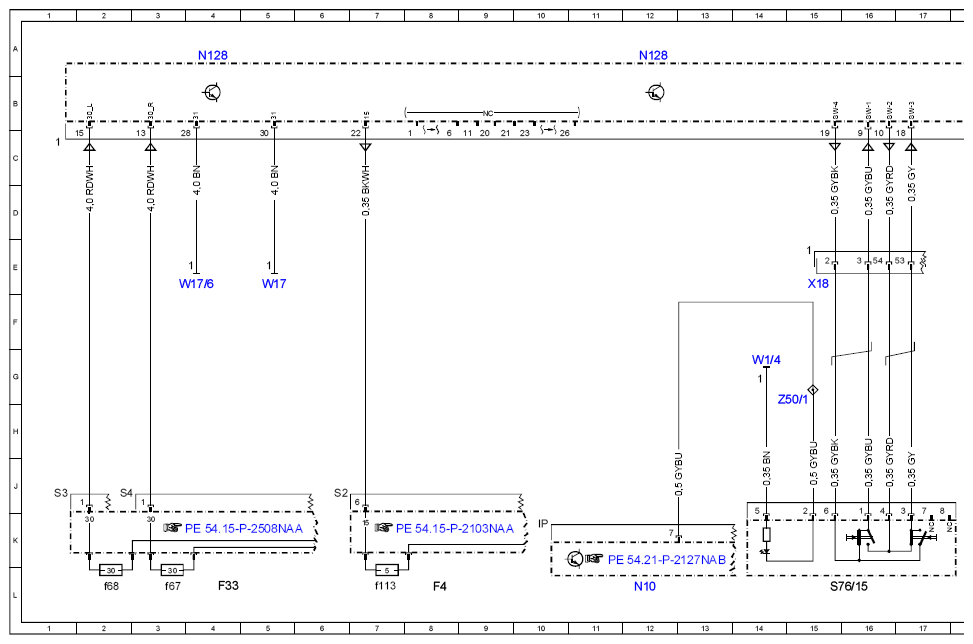

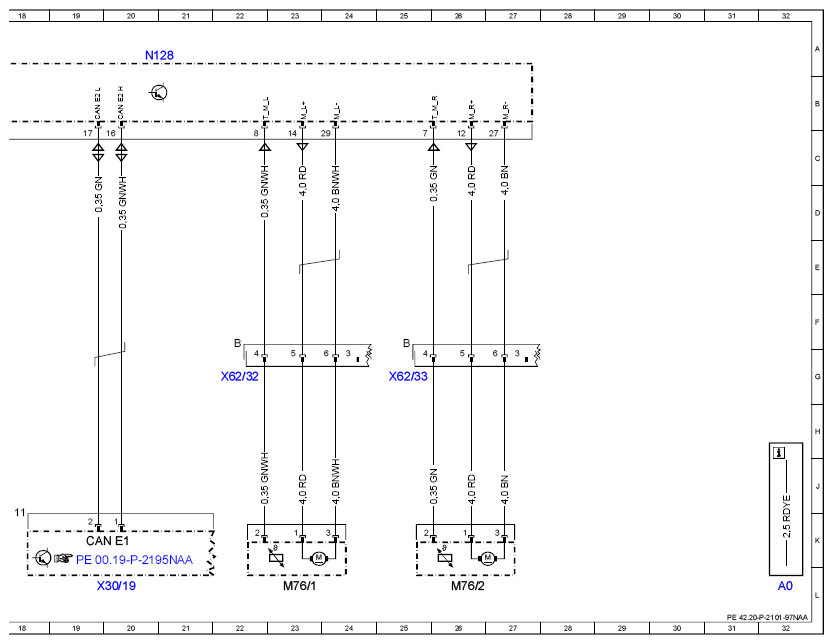

Wiring Diagram For Electric Parking Brake - PE42.20-P-2101-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016
Control unit N128
| Code: | Designation: | Position: |
|---|---|---|
| AO | Color code key | 32L |
| CAN E1 | Chassis CAN 1 | 19K |
| F33 | Battery compartment prefuse box | 4L |
| F33f67 | Fuse 67 | 3L |
| F33f68 | Fuse 68 | 2L |
| F4 | Rear fuse box | 8L |
| F4f113 | Fuse 113 | 7L |
| M76/1 | Left electric parking brake actuator motor | 23L |
| M76/2 | Right electric parking brake actuator motor | 26L |
| N10 | SAM control unit | 12L |
| N128 | Electric parking brake control unit | 4A |
| N128 | Electric parking brake control unit | 12A |
| N128 | Electric parking brake control unit | 20A |
| S76/15 | Electric parking brake switch | 15L |
| W1/4 | Cockpit ground point | 14G |
| W17 | Right rear seat ground point | 5E |
| W17/6 | Rear seat crossmember ground point | 4E |
| X18 | Vehicle interior and harness for taillamp electrical connector | 15E |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 20L |
| X62/32 | Rear axle electrical connector, left distributor | 22G |
| X62/33 | Rear axle electrical connector, right distributor | 25G |
| Z50/1 | Circuit 58d instrument panel connector sleeve | 15G |
