Wiring Diagram For Adaptive Brake (ABR) - PE42.47-P-2000-97NBA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

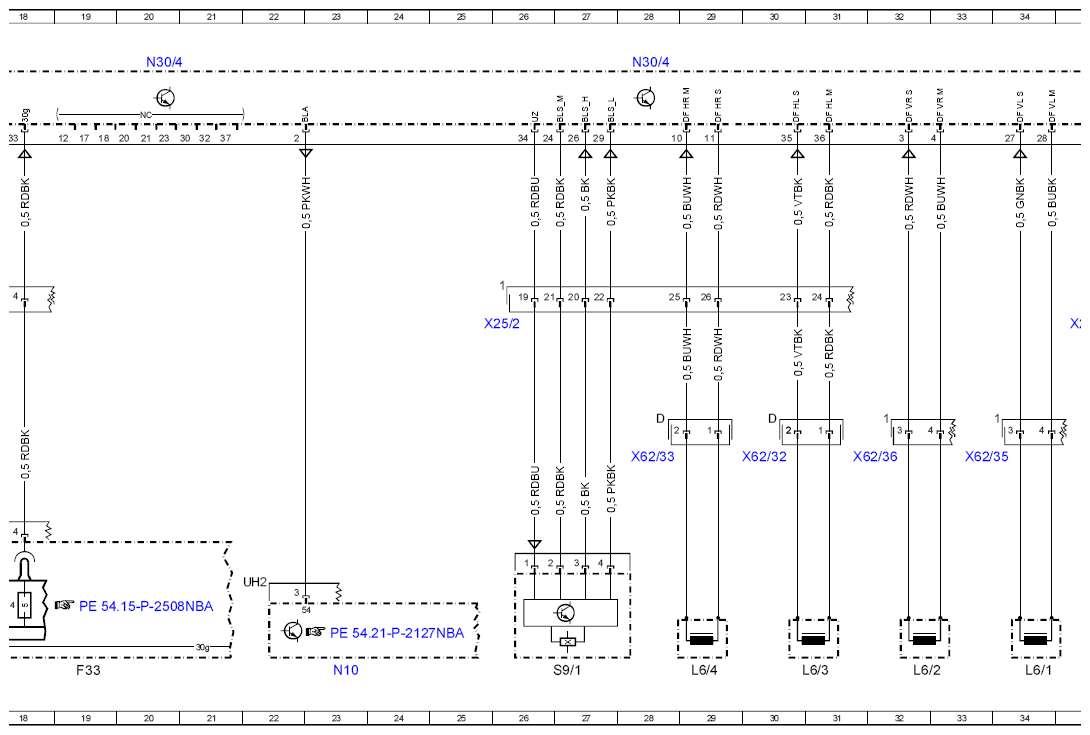

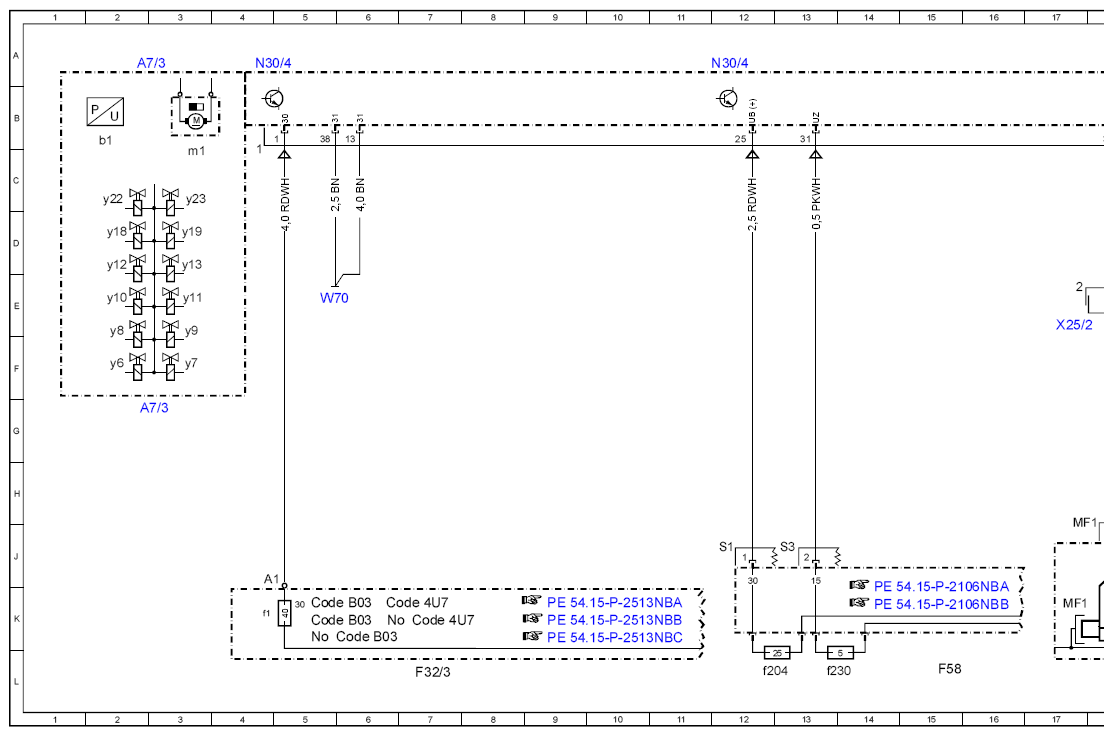

MODEL 166 as of model year 2016 except CODE ME05 (HYBRID DRIVE 80KW VARIANT (INCLUDING PLUGIN)) Control unit N30/4

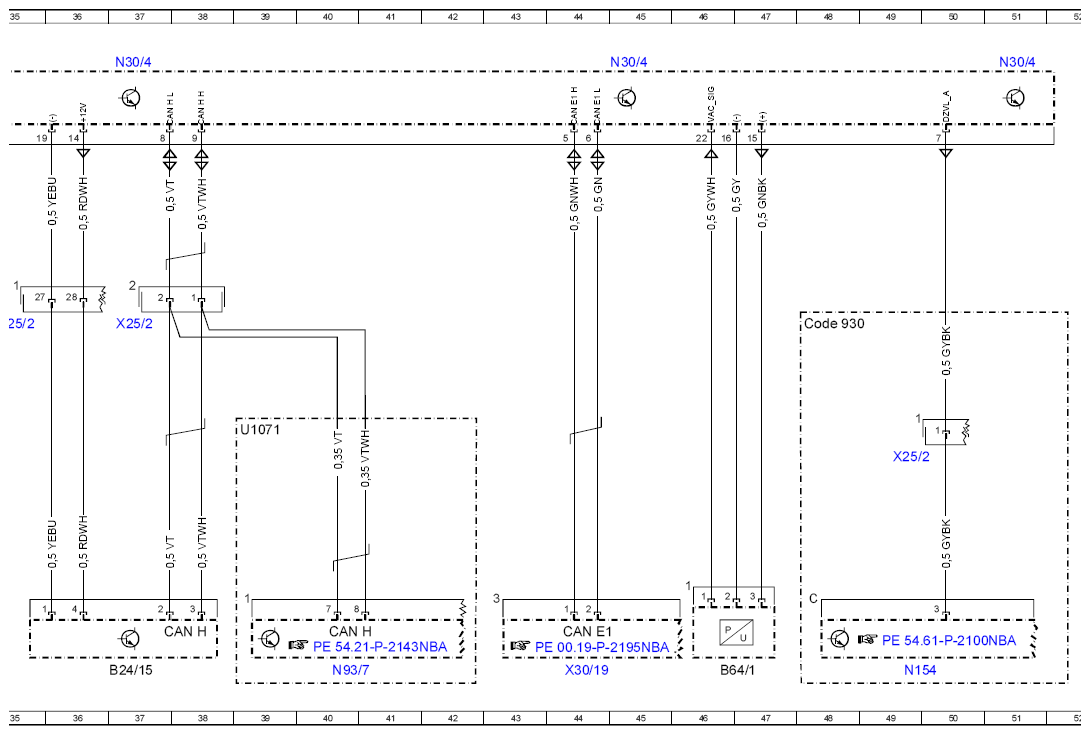

MODEL 292 Control unit N30/4
| Code: | Designation: | Position: |
|---|---|---|

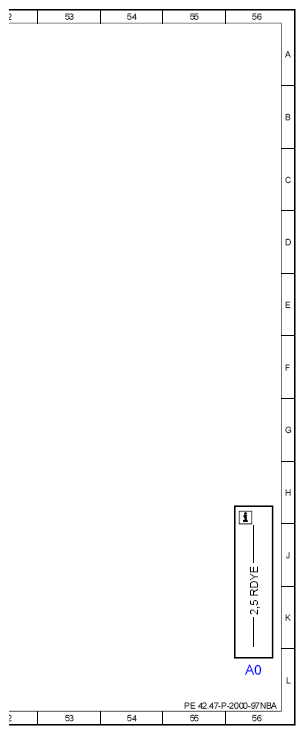

| A0 | Color code key | 56L |
| A7/3 | Traction system hydraulic unit | 2G |
| A7/3 | Traction system hydraulic unit | 2A |
| A7/3b1 | Front axle brake pressure sensor | 2B |
| A7/3m1 | High pressure and return pump | 3C |
| A7/3y10 | Left rear pressure regulator valve (pressure hold) | 2E |
| A7/3y11 | Left rear pressure regulator valve (pressure release) | 3E |
| A7/3y12 | Right rear pressure regulator valve (pressure hold) | 2D |
| A7/3y13 | Right rear pressure regulator valve (pressure release) | 3D |
| A7/3y18 | Front axle switchover valve | 2D |
| A7/3y19 | Rear axle switchover valve | 3D |
| A7/3y22 | Front axle intake ball valve | 2C |
| A7/3y23 | Rear axle intake ball valve | 3C |
| A7/3y6 | Left front pressure regulator valve (pressure hold) | 2F |
| A7/3y7 | Left front pressure regulator valve (pressure release) | 3F |
| A7/3y8 | Right front pressure regulator valve (pressure hold) | 2E |
| A7/3y9 | Right front pressure regulator valve (pressure release) | 3E |
| B24/15 | Yaw rate sensor for lateral and longitudinal acceleration | 37L |
| B64/1 | Brake vacuum sensor | 46L |
| CAN E1 | Chassis CAN 1 | 44K |
| CAN H | Vehicle dynamics CAN | 38K |
| CAN H | Vehicle dynamics CAN | 40K |
| Code 4U7 | Start/stop voltage dip protection | 6K |
| Code 4U7 | Start/stop voltage dip protection | 7K |
| Code 930 | Tachograph preinstallation | 48E |
| Code B03 | ECO start/stop function | 5K |
| Code B03 | ECO start/stop function | 5K |
| Code B03 | ECO start/stop function | 6K |
| F32/3 | Engine compartment prefuse box | 7L |
| F32/3f1 | Fuse 1 | 4K |
| F33 | Battery compartment prefuse box | 19L |
| F33MF1 | Multiple fuse 1 | 17K |
| F58 | Engine compartment fuse and relay module | 15L |
| F58f204 | Fuse 204 | 12L |
| F58f230 | Fuse 230 | 14L |
| L6/1 | Left front axle rpm sensor | 34L |
| L6/2 | Right front axle rpm sensor | 32L |
| L6/3 | Left rear axle rpm sensor | 31L |
| L6/4 | Right rear axle rpm sensor | 29L |
| N10 | SAM control unit | 23L |
| N154 | Digital tachograph control unit | 49L |
| N30/4 | Electronic Stability Program control unit | 4A |
| N30/4 | Electronic Stability Program control unit | 12A |
| N30/4 | Electronic Stability Program control unit | 20A |
| N30/4 | Electronic Stability Program control unit | 28A |
| N30/4 | Electronic Stability Program control unit | 37A |
| N30/4 | Electronic Stability Program control unit | 45A |
| N30/4 | Electronic Stability Program control unit | 51A |
| N93/7 | Chassis gateway control unit | 40L |
| S9/1 | Stop lamp switch | 27L |
| U1071 | Valid for stereo multifunction camera | 39G |
| W70 | ESP® ground point | 5E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 17E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 26E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 35E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 37E |
| X25/2 | Engine compartment/vehicle interior electrical connector | 49H |
| X30/19 | Vehicle floor chassis CAN E1 potential distributor electrical connector | 44L |
| X62/32 | Rear axle electrical connector, left distributor | 30H |
| X62/33 | Rear axle electrical connector, right distributor | 28H |
| X62/35 | BWI [BBV]/rpm left front axle electrical connector | 33H |
| X62/36 | BWI [BBV]/rpm right front axle electrical connector | 32H |
