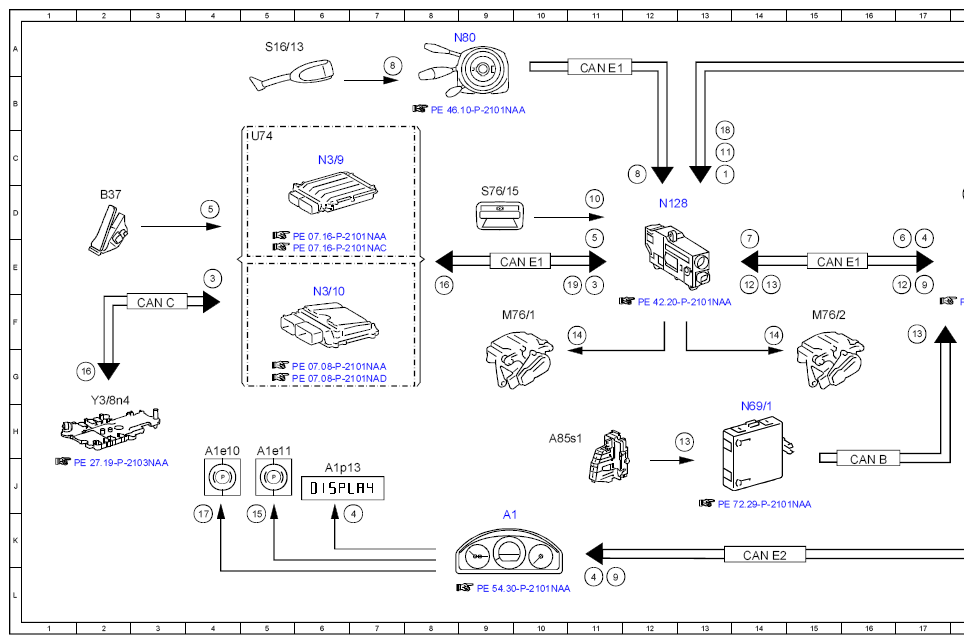

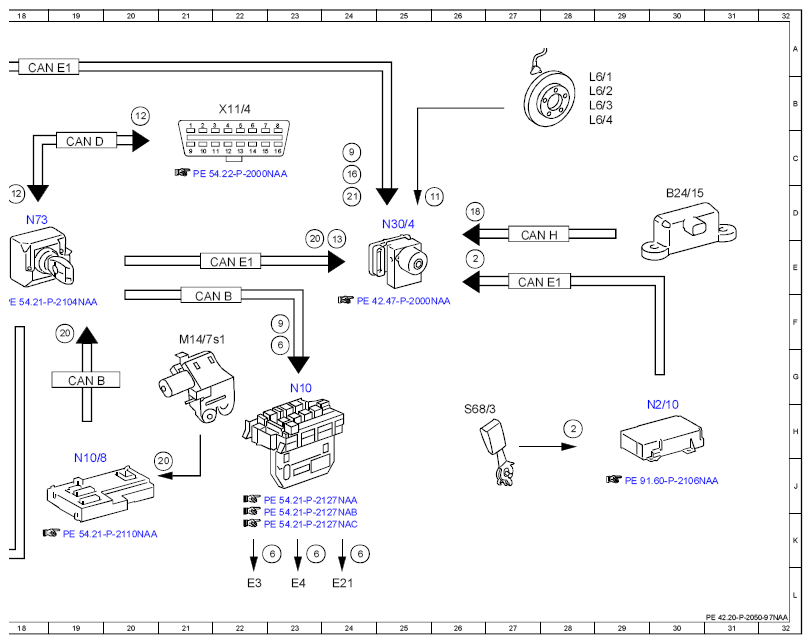

Electrical Function Schematic For Electric Parking Brake - PE42.20-P-2050-97NAA
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 166 up to model year 2016
| Code: | Designation: | Position: |
|---|---|---|
| 1 | ESP®, status | 13C |
| 10 | Electric parking brake switch, status | 11D |
| 11 | Wheel speed, signal | 26D |
| 11 | Wheel speed, signal | 13C |
| 12 | Diagnosis, communication | 18D |
| 12 | Diagnosis, communication | 20B |
| 12 | Diagnosis, communication | 14E |
| 12 | Diagnosis, communication | 17E |
| 13 | Rotary tumbler switch, status | 13H |
| 13 | Rotary tumbler switch, status | 14E |
| 13 | Rotary tumbler switch, status | 24E |
| 13 | Rotary tumbler switch, status | 17F |
| 14 | Actuator motors, actuation | 14F |
| 14 | Actuator motors, actuation | 11F |
| 15 | Parking brake warning lamp, actuation | 5K |
| 16 | Electric parking brake control unit, status | 2G |
| 16 | Electric parking brake control unit, status | 8E |
| 16 | Electric parking brake control unit, status | 24C |
| 17 | Parking brake indicator lamp, actuation | 4K |
| 18 | Speed, turn rate and lateral acceleration, signal | 13C |
| 18 | Speed, turn rate and lateral acceleration, signal | 26D |
| 19 | Engine running, signal | 11E |
| 2 | Seat belt buckle switch, status | 28H |
| 2 | Seat belt buckle switch, status | 26E |
| 20 | Tailgate rotary tumbler switch, status | 23E |
| 20 | Tailgate rotary tumbler switch, status | 21J |
| 20 | Tailgate rotary tumbler switch, status | 19F |
| 21 | Dynamometer mode, status | 24D |
| 3 | Transmission control, status | 4E |
| 3 | Transmission control, status | 11E |
| 4 | Instrument cluster, message | 7K |
| 4 | Instrument cluster, message | 17E |
| 4 | Instrument cluster, message | 11L |
| 5 | Accelerator pedal sensor, signal | 4D |
| 5 | Accelerator pedal sensor, signal | 11E |
| 6 | Brake lights, actuation | 23F |
| 6 | Brake lights, actuation | 23K |
| 6 | Brake lights, actuation | 23K |
| 6 | Brake lights, actuation | 24K |
| 7 | Circuit 15R, status | 14E |
| 8 | Gear range, status | 7A |
| 8 | Gear range, status | 12C |
| 9 | Emergency stop, signal | 17E |
| 9 | Emergency stop, signal | 24C |
| 9 | Emergency stop, signal | 23F |
| 9 | Emergency stop, signal | 11L |
| A1 | Instrument cluster | 9K |
| A1e10 | Parking brake indicator lamp | 4H |
| A1e11 | Parking brake indicator lamp | 5H |
| A1p13 | Multifunction display | 6J |
| A85s1 | Left front door rotary tumbler switch | 10H |
| B24/15 | Yaw rate, lateral and longitudinal acceleration sensor | 30D |
| B37 | Accelerator pedal sensor | 2D |
| CAN B | Interior CAN | 16J |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 19G |
| CAN C | Drive train CAN | 3F |
| CAN D | Diagnostic CAN | 19C |
| CAN E1 | Chassis CAN 1 | 15E |
| CAN E1 | Chassis CAN 1 | 9E |
| CAN E1 | Chassis CAN 1 | 22E |
| CAN E1 | Chassis CAN 1 | 18A |
| CAN E1 | Chassis CAN 1 | 27E |
| CAN E1 | Chassis CAN 1 | 11A |
| CAN E2 | Chassis CAN 2 | 14K |
| CAN H | Vehicle dynamics CAN | 27D |
| E21 | Center stop lamp | 24L |
| E3 | Left rear lamp unit | 22L |
| E4 | Right rear lamp unit | 23L |
| L6/1 | Left front axle rpm sensor | 28B |
| L6/2 | Right front axle rpm sensor | 28B |
| L6/3 | Left rear axle rpm sensor | 28B |
| L6/4 | Right rear axle rpm sensor | 28B |
| M14/7s1 | Tailgate rotary tumbler switch | 21F |
| M76/1 | Left electric parking brake actuator motor | 9F |
| M76/2 | Right electric parking brake actuator motor | 15F |
| N10 | SAM control unit | 23G |
| N10/8 | Rear control unit | 19J |
| N128 | Electric parking brake control unit | 12D |
| N2/10 | Supplemental restraint system control unit | 30H |
| N3/10 | ME-SFI [ME] control unit | 6F |
| N3/9 | CDI control unit | 6C |
| N30/4 | Electronic Stability Program control unit | 25D |
| N69/1 | Left front door control unit | 14H |
| N73 | Electronic ignition switch control unit | 18D |
| N80 | Steering column module control unit | 9A |
| S16/13 | DIRECT SELECT lever | 5A |
| S68/3 | Driver seat belt buckle restraint system switch | 26H |
| S76/15 | Electric parking brake switch | 9D |
| U74 | Valid for diesel engines | 5C |
| X11/4 | Diagnostic connector | 22B |
| Y3/8n4 | Fully integrated transmission control unit | 2H |
