Measure Thickness Of The Brake Pads - AP42.10-P-4253-01GZ

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 117, 164, 166, 169, 172, 176, 197.3/4, 203, 204, 207, 209, 212, 216 (except 216.374/377/379), 218, 221 (except 221.074/077/174/177/179), 222, 230, 231, 242, 245, 246, 251

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Measurement possible at the front axle with floating caliper brake system on

Model 164, 166, 169, 172, 203, 204, 207, 209, 212, 218, 222, 242, 245, 246, 251 Measurement possible at the rear axle with floating caliper brake system on
Model 164, 204, 207, 212, 216, 218, 221, 222, 230, 231, 242, 246, 251
Where possible measurement to be at front axle with 4 or 6-piston and rear axle with 4-piston fixed-caliper brake system on
Model 197, 204, 209, 212, 218, 222, 230, 231

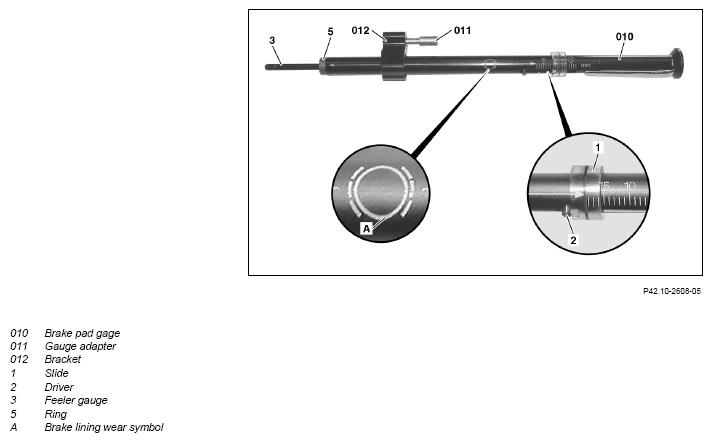

Position slide (1) on the drive plate (2).
Before each measurement position the slide (1) on the drive plate (2) in order to avoid measurement errors.

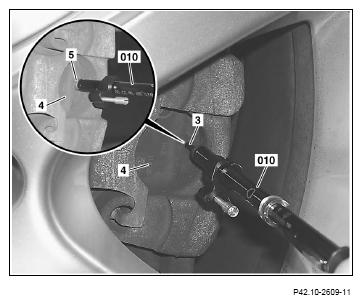

Measurement on front axle without gauge adapter (011) with brake pad check gauge (010)
Insert measuring drift (3) in the test bore of the brake lining carrier at the outer brake pad (4).
Mount brake pad check gauge (010) up against brake pad support so that the red ring (5) is at the top.
Remove brake pad check gauge (010) and read off thickness of the friction lining without pad backing plate at slide (1).
Read off value on the scale with the brake lining wear symbol, otherwise a wrong value will be determined.

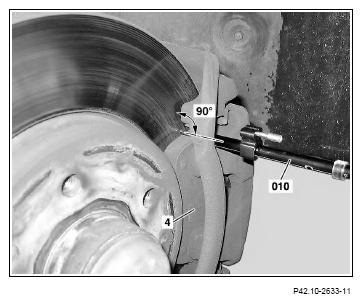

Measurement on front axle without gauge adapter (011) on vehicles without test bores, except model 164, 166, 251
Position brake pad check gauge (010) on outer brake pad (4), as shown.
Press brake pad check gauge (010) towards the brake pad (4) until as much as possible of the red ring (5) lies on flat.
The brake pad check gauge (010) must be at a right-angle to the brake disk's friction surface.
Remove brake pad check gauge (010) and read off thickness of the friction lining without pad backing plate at slide.
Read off value on the scale with the brake lining wear symbol, otherwise a wrong value will be determined.

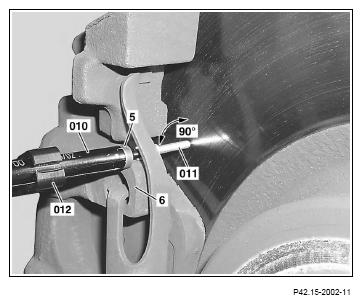

Measurement on front axle with gauge adapter (011) for model 164, 166, 251
Pull check gauge adapter (011) out of the bracket (012) and connect up to the end stop on the measuring drift.
Mount the tip of the check gauge adapter (011) on the friction surface of the brake disk.
Position brake pad check gauge (010) on the floating brake caliper (6) as shown so that as much as possible of the red ring (5) lies on flat.
The brake pad check gauge (010) must be at a right-angle to the brake disk's friction surface.
Remove brake pad check gauge (010) and read off thickness of the friction lining without pad backing plate at slide.

Read off value on the scale with the brake lining wear symbol, otherwise a wrong value will be determined.

Measurement on rear axle without gauge adapter (011)
Insert measuring drift (3) in the test bore of the brake lining carrier at the outer brake pad (4).
Mount brake pad check gauge (010) up against brake pad support so that the red ring (5) is at the top.
Remove brake pad check gauge (010) and read off thickness of the friction lining without pad backing plate at slide.
Read off value on the scale with the brake lining wear symbol, otherwise a wrong value will be determined.
