Apply Brake Pad Paste To Brake Pads - AR42.10-P-0161-01B

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2019 Mercedes-Benz GLE63 S AMG, 2019 Mercedes-Benz GLE63 AMG, 2019 Mercedes-Benz GLE43 AMG, 2019 Mercedes-Benz GLE400, and 2018 Mercedes-Benz GLE63 S AMG. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 164 (except 164.177), 166

MODEL 168, 169, 245

MODEL 171 (except 171.473)

MODEL 197

MODEL 203 (except 203.018/076/218/265/276/718)

MODEL 209 (except 209.376/377/476/477)

MODEL 211 (except 211.076/077/276)

MODEL 212 (except 212.077/277)

MODEL 216 (except 216.377/379)

MODEL 218 (except 218.374)

MODEL 219 (except 219.376/377)

MODEL 221 (except 221.077/177/179)

MODEL 230 (except 230.470/472/474/479)

MODEL 251 (except 251.077/177)

MODEL 463 up to model year 2019

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1057-06A	MB brake paste Molykote (copper colored)	A 001 989 87 51
BR00.45-Z-1083-06A	MB Never Seeze brake paste (gray)	A 001 989 94 51 12
BR00.45-Z-1084-06A	MB Plastilube brake paste (brownish)	A 002 989 37 51

1 or 2 piston floating brake caliper "ATE", "Bosch", "TRW" or "Lucas" in model 204, 207, 212, 218 on front or rear axle and 1 piston floating brake caliper "TRW" in model 166 on rear axle.

Contact surfaces may not be greased.

2, 4, 6 or 8-piston fixed brake caliper "Brembo"

Apply light coating of grease to contact surfaces with arrows only!
Only model 197, 212, 218 without code (B07) Ceramic brake system and only on the rear axle : Lightly grease brake pad backing plates in the contact area of the brake pistons.

Only use MB brake paste Molycote (copper colored).

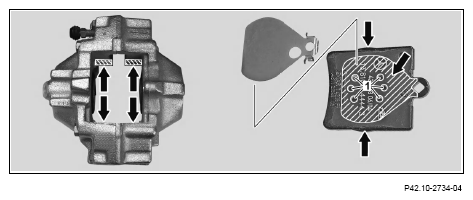

4-piston fixed brake caliper "ATE" in model 463 on front axle or 2-piston fixed brake caliper "ATE" in model 171, 203, 209 on rear axle

Apply light coating of grease to contact surfaces with arrows only!
For brake pads with damper plates:

Fill grease pockets (1) MB brake paste.

Only use MB brake paste Never Seeze (gray).

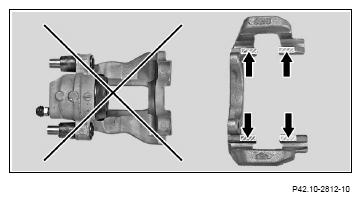

1-piston floating brake caliper "Bosch" in model 211 on front axle or in model 463 on rear axle

Apply light coating of grease to contact surfaces with arrows only!
Do not grease damper plates of inner brake pads, as otherwise the rubber boots may swell up!

Only use MB brake paste Never Seeze (gray).

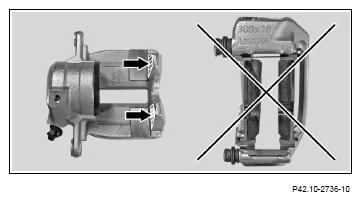

1-piston floating brake caliper "TRW" or "Lucas" in model 171, 203, 209 on front axle

Apply light coating of grease to contact surfaces with arrows only!
Do not grease the pad and brake carriers, otherwise there may be problems with noise!

Only use MB brake paste Never Seeze (gray).

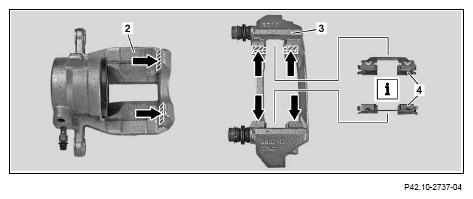

1-piston floating brake caliper "TRW" or "Lucas" in model 168, 169, 245 on front or rear axle

Apply light coating of grease to contact surfaces with arrows only!
For brake pads with self-adhesive pad carriers do not grease the contact surfaces in the floating brake caliper (2)!

Grease contact surfaces on brake carrier (3) before assembling the anti-rattle springs (4)! Do not grease the anti-rattle springs (4)!

Only use MB brake paste Never Seeze (gray).

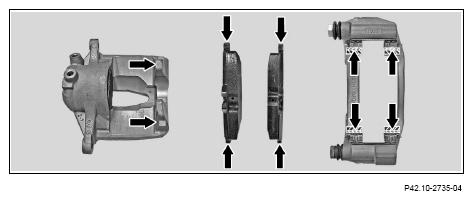

1, or 2-piston floating brake caliper "ATE" on front or rear axle

Apply light coating of grease to contact surfaces with arrows only!
Only use MB brake paste Plastilube (brownish).
