Inspect condition of brake disks - AP42.10-P-4258C
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 217 without CODE B07 (Ceramic brake system)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove | |||
| 1 AR |
Detach complete wheels | AP40.10-P-1102A |
|
| Check | |||

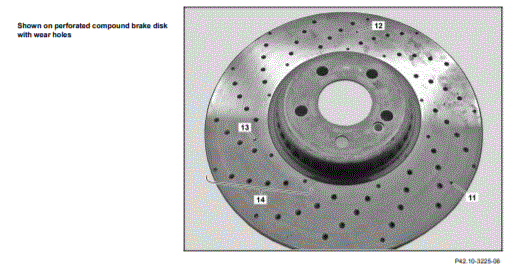

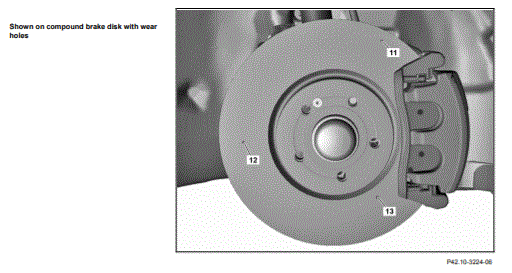

| 2 | Assess condition of brake disks(1) | Assessment of brake disks(1) not OK ↓ Replace brake disks (1) subject to separate repair order. |
AP42.10-P-4256EW |
| Measure | |||

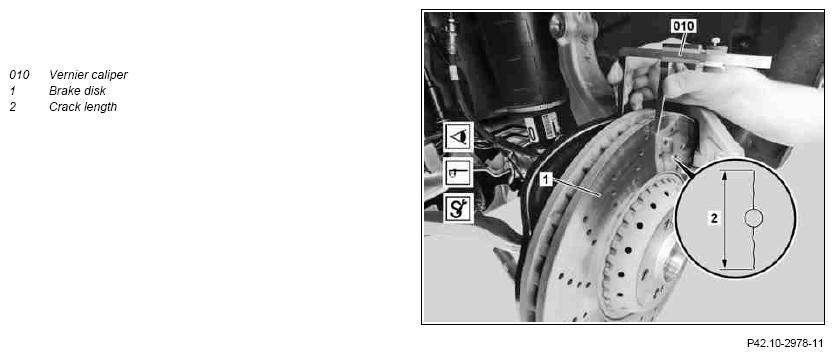

| 3 | Measure brake disk thickness on front axle using vernier caliper (010) | Model 222 front axleBrake disk thickness | *BE42.10-P-1001-08X |
Observe recommended limit dimensions. If the wear limit has been exceeded or will be exceeded before the next brake pad change: ↓ Replace brake disks (1) subject to separate repair order. |
Figure | ||
| 4 | Measure brake disk thickness on rear axle using vernier caliper (010) | Model 222 front axleBrake disk thickness Observe recommended limit dimensions. If the wear limit has been exceeded or will be exceeded before the next brake pad change: ↓ Replace brake disks (1) subject to separate repair order. |
*BE42.10-P-1001-09W Figure |
| Install | |||
| 5 AR |
Attach complete wheels | AP40.10-P-1102A |
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | MODEL 217 except AMG | MODEL 217 AMG except CODE B07 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08X | Brake disk thickness | New | mm | 36, 00 | 36, 00 |
| Wear limit | mm | 34, 00 | 33, 00 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | MODEL 217.364, MODEL 217.382/384/385/482 except reinforced brake system | MODEL 217.377/378/379/477/479 except CODE B07, MODEL 217.382/384/385/482 with reinforced brake system | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-09W | Brake disk thickness | New | mm | 24, 00 | 26, 00 |
| Wear limit | mm | 21, 40 | 24, 00 | ||
