Inspect condition of brake disks - AP42.10-P-4258AK
WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 169
MODEL 245 (except 245.286)
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove | |||
| 1 | Remove wheel-and-tire assembly | AP40.10-P-4050AK | |
| Check | |||
| 2 | Check brake disks (61) on front and rear axle for score marks and cracks | For cracks and scores which have split open and are deeper than 0.5 mm: ↓ Replace brake disks (61) subject to separate repair order. |
|
| Measure | |||

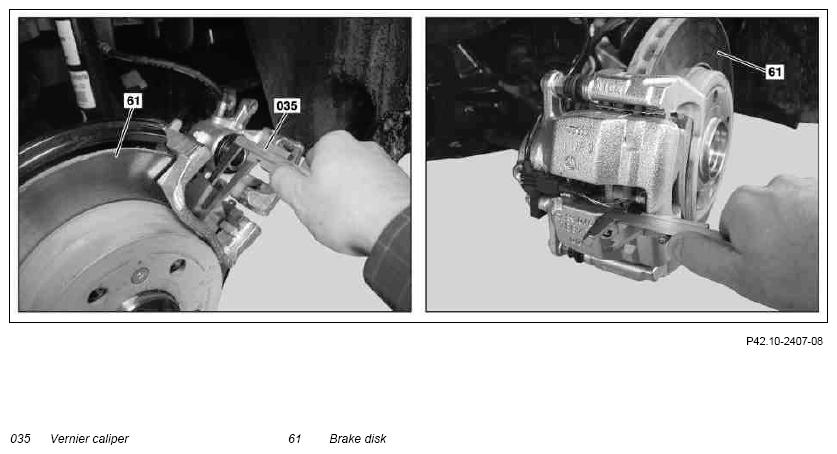

| 3 | Measure brake disk thickness on front axle using caliper gauge (035) | Model 169, check values for brake disks on front axle | *BE42.10-P-1001-08J |
| Model 245, check values for brake disks on front axle | *BE42.10-P-1001-08L | ||
Observe recommended limit dimensions. If the wear limit has been exceeded or will be exceeded before the next brake pad change: ↓ Install new brake disks (61) at front axle. |
Figure | ||
| Remove | |||
| 4 | Remove brake linings on rear axle | ||
| AR42.10-P-1700AK | |||
| Measure | |||
| 5 | Measure brake disk thickness at rear axle using measuring caliper (035) | Model 169, check values for rear axle brake disks | *BE42.10-P-1001-09H |
| Model 245, check values for rear axle brake disks | *BE42.10-P-1001-09I | ||
Observe recommended limit dimensions. If the wear limit has been exceeded or will be exceeded before the next brake pad change: ↓ Install new brake disks (61) at rear axle. |
Figure | ||
| Install | |||
| 6 | Install brake linings on rear axle | ||
| AR42.10-P-1700AK | |||
| 7 | Mount wheel and tire assembly | AP40.10-P-4050AK |
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | MODEL 169.031/306/331 | MODEL 169.006/007/032/033/307/332/333 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08J | Brake disk thickness | New | mm | 12, 0 | 22, 0 |
| Wear limit | mm | 10, 0 | 19, 4 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | MODEL 169.008/034/090/308/334 | ||
|---|---|---|---|---|
| BE42.10-P-1001-08J | Brake disk thickness | New | mm | 25, 0 |
| Wear limit | mm | 22, 4 | ||
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | MODEL 245.207/208/233/234 | MODEL 245.231/232 | ||
|---|---|---|---|---|---|
| BE42.10-P-1001-08L | Brake disk thickness | New | mm | 25, 0 | 22, 0 |
| Wear limit | mm | 22, 4 | 19, 4 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | MODEL 169 | ||
|---|---|---|---|---|
| BE42.10-P-1001-09H | Brake disk thickness | New | mm | 8, 0 |
| Wear limit | mm | 7, 0 | ||
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | MODEL 245 | ||
|---|---|---|---|---|
| BE42.10-P-1001-09I | Brake disk thickness | New | mm | 8, 0 |
| Wear limit | mm | 7, 0 | ||
