Determine remaining distance of brake pads - AP42.10-P-4253-03EW

WARNING: This page does not describe the selected car, but rather 203 other vehicles, including the 2020 Mercedes-Benz SLC300, 2020 Mercedes-Benz SL550, 2020 Mercedes-Benz SL450, 2020 Mercedes-Benz S65 AMG, and 2020 Mercedes-Benz GLA250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 453

MODEL 461, 463

MODEL ALL

In order to avoid an unscheduled workshop visit between services, it is necessary to determine the remaining distance of the present brake linings. If the remaining distance determined is less than the next service interval, premature brake show or brake pad replacement should be recommended to the customer. The remaining distance determined is to be understood as being a reference value as the future driving style and operating conditions of the vehicle are not taken into consideration when calculating the remaining distance. The actual remaining distance can therefore be shorter or longer. Per axle, the brake pad with the least lining thickness is to be used for determining likely remaining distance.

There are 2 different methods available to calculate the remaining distance:

Method 1: Calculation without consideration of last brake pad replacement.
Method 2: Calculation with consideration of last brake pad or brake show replacement. When calculating in accordance with method 2 the vehicle-specific service conditions, starting from the last brake shoe or brake pad replacement, are taken into consideration.

Shown with disk brake

Fig 1: Checking Brake Lining Thickness

Courtesy of MERCEDES-BENZ USA

Shown on brake pad

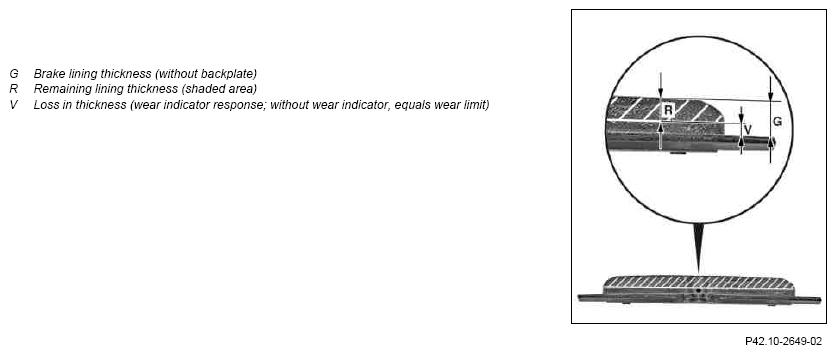

G Brake lining thickness (without backplate)

R Remaining lining thickness (shaded area)

V Loss in thickness (wear indicator response; without wear indicator, equals wear limit)

Fig 2: Identifying Brake Lining Dimensions

Courtesy of MERCEDES-BENZ USA

Calculation as per Method 1 (for disk brakes only)

Comment: The values given in parenthesis are for an example calculation only, the actual values have to be determined on the vehicle or taken from the vehicle-specific test value tables!

G = brake lining thickness determined at the vehicle (8 mm)
V = value to be taken from vehicle-specific test value tables, row "Wear indicator response", or from row "Wear limit" if no wear indicator is present (3 mm).
VF = deterioration factor:
- Front axle 4.000 km/1_mm brake lining
- Rear axle 6.000 km/1_mm brake lining

Wanted: RS = remaining distance

Formula: RS = (G - V) * VF

Example front axle: rs = (8_mm - 3_mm) * 4, 000 km = 20, 000 km

Example rear axle: rs = (8_mm - 3_mm) * 6, 000 km = 30, 000 km

Calculation according to method 2

Comment: The values given in parenthesis are for an example calculation only, the actual values have to be determined on the vehicle or taken from the vehicle-specific test value tables!

Previous work: Determine kilometer reading at the last brake shoe or brake pad replacement (Digital Service Booklet (DSB) - if available for vehicle and in market, vehicle history, etc.).

Given:

BN = New dimension for brake lining thickness (value to be taken from vehicle-specific test value tables, row "Brake lining, new") (12.5 mm)
G = Brake lining thickness determined at the vehicle (8 mm)
KA = Current kilometer reading (95, 000 km)
KB = Kilometer reading at last brake pad or brake shoe replacement (70, 000 km)
V = Value to be taken from vehicle-specific test value tables, row "Wear indicator response", or from row "Wear limit" if no wear indicator is present (3 mm).

Wanted: RS = remaining distance

Formula: RS = ((KA - KB)/(BN - G)) * (G - V)

Example: RS = ((95, 000 km - 70, 000 km)/(12.5 mm - 8 mm)) * (8 mm - 3 mm) = 27, 777 km
