| A0 |
Color code key |
48L |

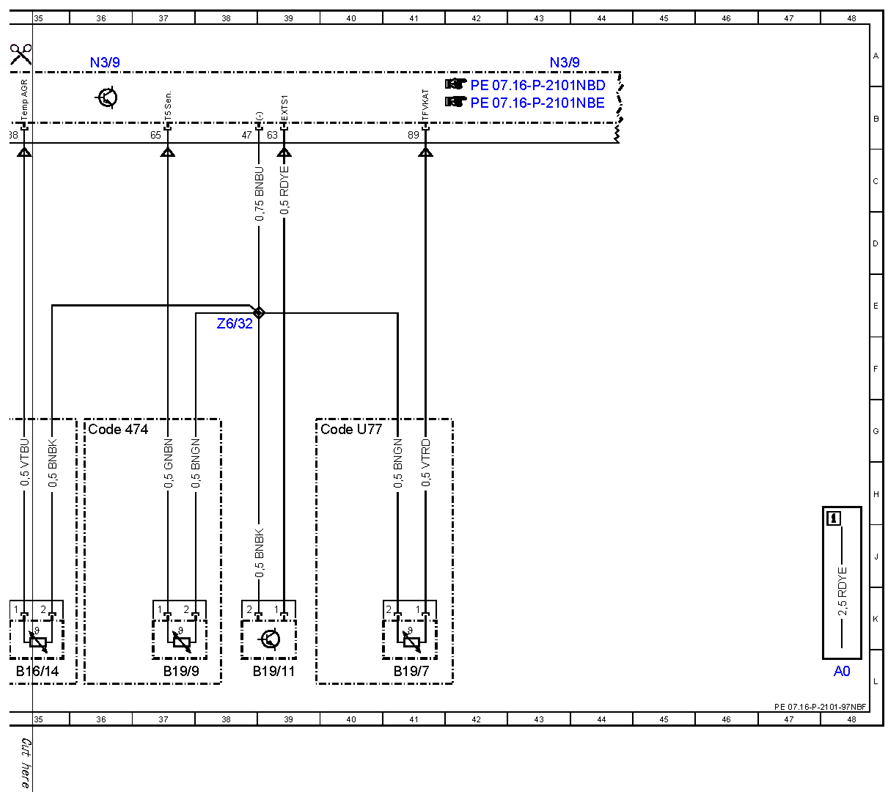

| B16/14 |
Exhaust gas recirculation temperature sensor |
35L |
| B19/11 |
Temperature sensor upstream of turbocharger |
39L |
| B19/7 |
Temperature sensor upstream of catalytic converter |
41L |
| B19/9 |
Temperature sensor upstream of diesel particulate filter |
37L |
| Code 474 |
Diesel particulate filter |
36G |
| Code 494 |
USA version |
33G |
| Code U77 |
BLUETEC (SCR) diesel exhaust treatment |
39G |
| F58 |
Engine compartment fuse and relay module |
13L |
| F58f216 |
Fuse 216 |
11L |
| F58f217 |
Fuse 217 |
10L |
| G2 |
Alternator |
31L |
| G3/2 |
Oxygen sensor upstream of catalytic converter |
19L |
| G3/2x1 |
Electrical connector for oxygen sensor upstream of catalytic converter |
18J |
| N14/3 |
Glow output stage |
32L |
| N3/9 |
CDI control unit |
7L |
| N3/9 |
CDI control unit |
4A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
36A |
| N3/9 |
CDI control unit |
43A |
| N3/9 |
CDI control unit |
12A |
| R39/1 |
Vent line heater element |
23L |
| R48 |
Coolant thermostat heating element |
21L |
| U2 |
Valid for all except USA |
21G |

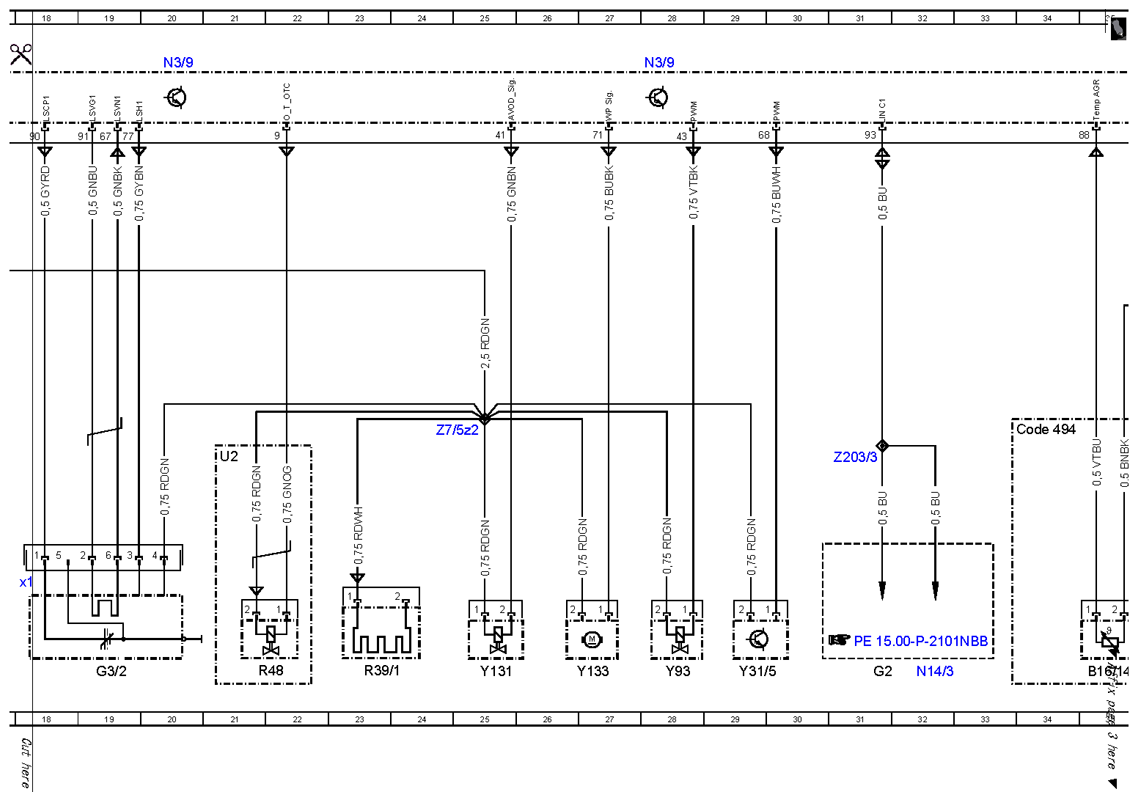

| W2 |
Right front ground point at lamp unit |
17H |
| X26/31 |
Engine/engine compartment electrical connector |
7F |
| Y123 |
Left switchable engine mount |
15L |
| Y123/1 |
Right switchable engine mount |
16L |
| Y130 |
Engine oil pump valve |
3L |
| Y131 |
Oil spray nozzle shutoff valve |
25L |
| Y133 |
Coolant pump switchover valve |
27L |

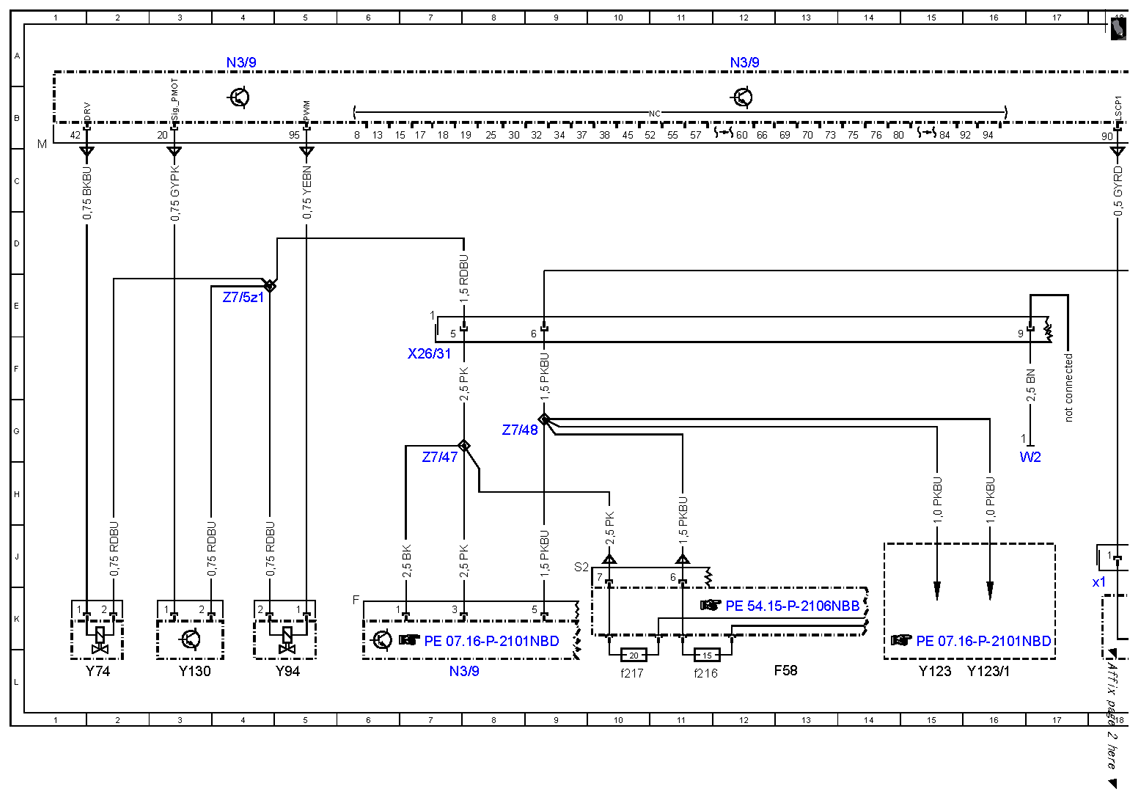

| Y31/5 |
Boost pressure control pressure transducer |
29L |
| Y74 |
Pressure regulator valve |
2L |
| Y93 |
Boost pressure control flap pressure transducer |
28L |
| Y94 |
Quantity control valve |
5L |
| Z203/3 |
Alternator LIN signal connector sleeve |
31G |
| Z6/32 |
Sensor ground connector sleeve |
38E |
| Z7/47 |
Circuit 87D1 connector sleeve |
7G |
| Z7/48 |
Circuit 87D2 connector sleeve |
8G |
| Z7/5z1 |
Circuit 87 connector sleeve |
4E |
| Z7/5z2 |
Circuit 87 connector sleeve |
25G |
