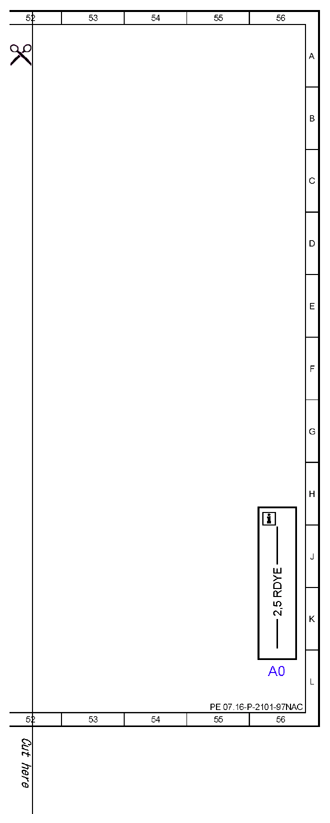

| A0 |
Color code key |
56L |

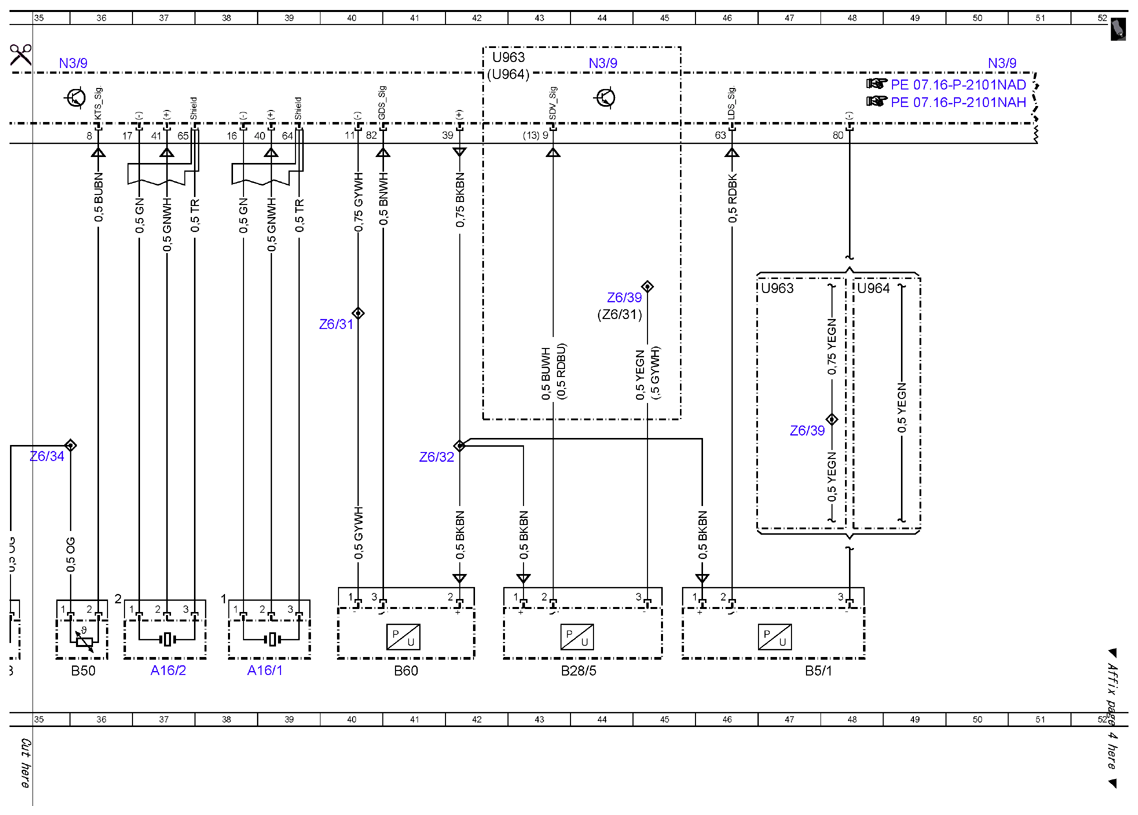

| A16/1 |
Knock sensor 1 |
38L |
| A16/2 |
Knock sensor 2 |
37L |
| B1 |
Engine oil temperature sensor |
31L |
| B11/4 |
Coolant temperature sensor |
33L |
| B17/8 |
Charge air temperature sensor |
34L |
| B2/5 |
Hot film mass air flow sensor |
21L |
| B2/5b1 |
Intake air temperature sensor |
22L |
| B28/5 |
Pressure sensor downstream of air filter |
43L |
| B4/6 |
Fuel high-pressure sensor |
28L |
| B5/1 |
Boost pressure sensor |
47L |
| B50 |
Fuel temperature sensor |
36L |
| B6/1 |
Camshaft Hall sensor |
26L |
| B60 |
Exhaust pressure sensor |
41L |
| B70 |
Crankshaft Hall sensor |
30L |
| F58 |
Engine compartment fuse and relay module |
16L |
| F58f215 |
Fuse 215 |
14L |
| N3/9 |
CDI control unit |
3A |
| N3/9 |
CDI control unit |
13A |
| N3/9 |
CDI control unit |
20A |
| N3/9 |
CDI control unit |
28A |
| N3/9 |
CDI control unit |
35A |
| N3/9 |
CDI control unit |
44A |
| N3/9 |
CDI control unit |
50A |
| R39/1 |
Vent line heater element |
19L |
| R48 |
Coolant thermostat heating element |
13L |
| S43 |
Oil level check switch |
24L |
| U963 |
Valid for piezo fuel injector |
1A |
| U963 |
Valid for piezo fuel injector |
26A |
| U963 |
Valid for piezo fuel injector |
47E |
| U963 |
Valid for piezo fuel injector |
42A |
| U964 |
Valid for all except piezo fuel injector |
7A |
| U964 |
Valid for all except piezo fuel injector |
48E |
| U964 |
Valid for all except piezo fuel injector |
42A |
| X26/31 |
Engine/engine compartment electrical connector |
14H |

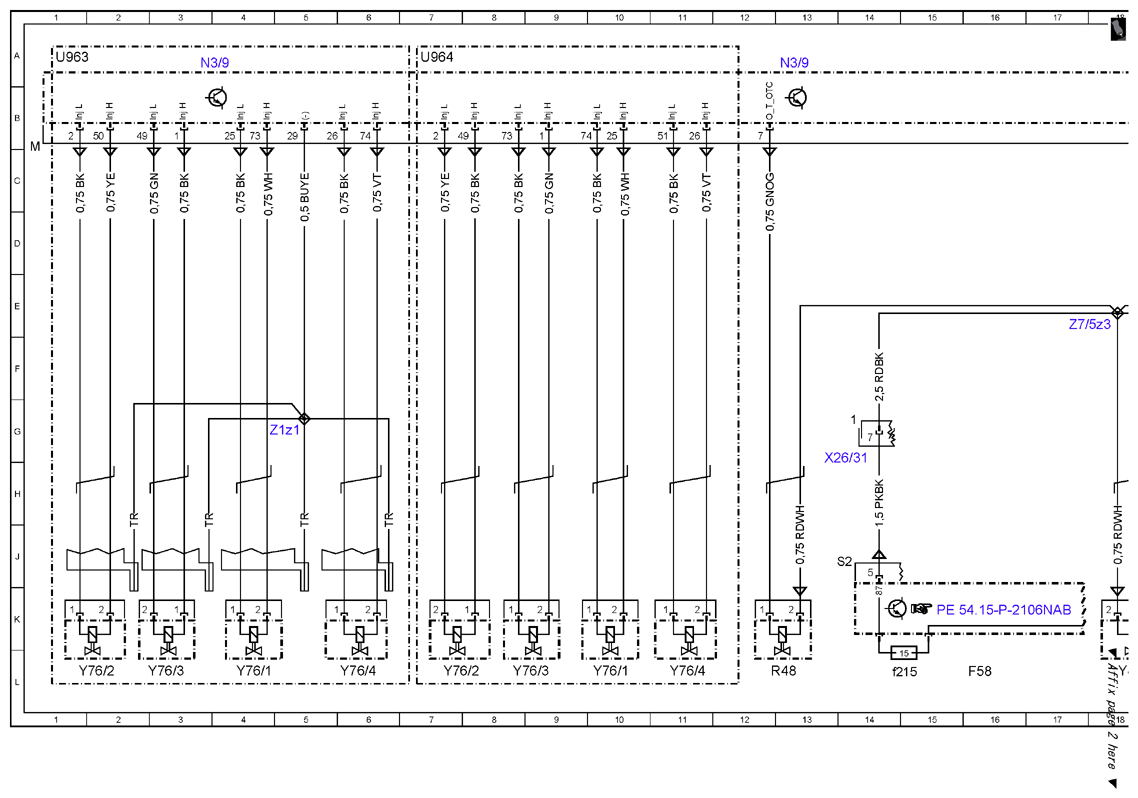

| Y76/1 |
Cylinder 1 fuel injector |
4L |
| Y76/1 |
Cylinder 1 fuel injector |
10L |
| Y76/2 |
Cylinder 2 fuel injector |
2L |
| Y76/2 |
Cylinder 2 fuel injector |
7L |
| Y76/3 |
Cylinder 3 fuel injector |
3L |
| Y76/3 |
Cylinder 3 fuel injector |
8L |
| Y76/4 |
Cylinder 4 fuel injector |
6L |
| Y76/4 |
Cylinder 4 fuel injector |
11L |

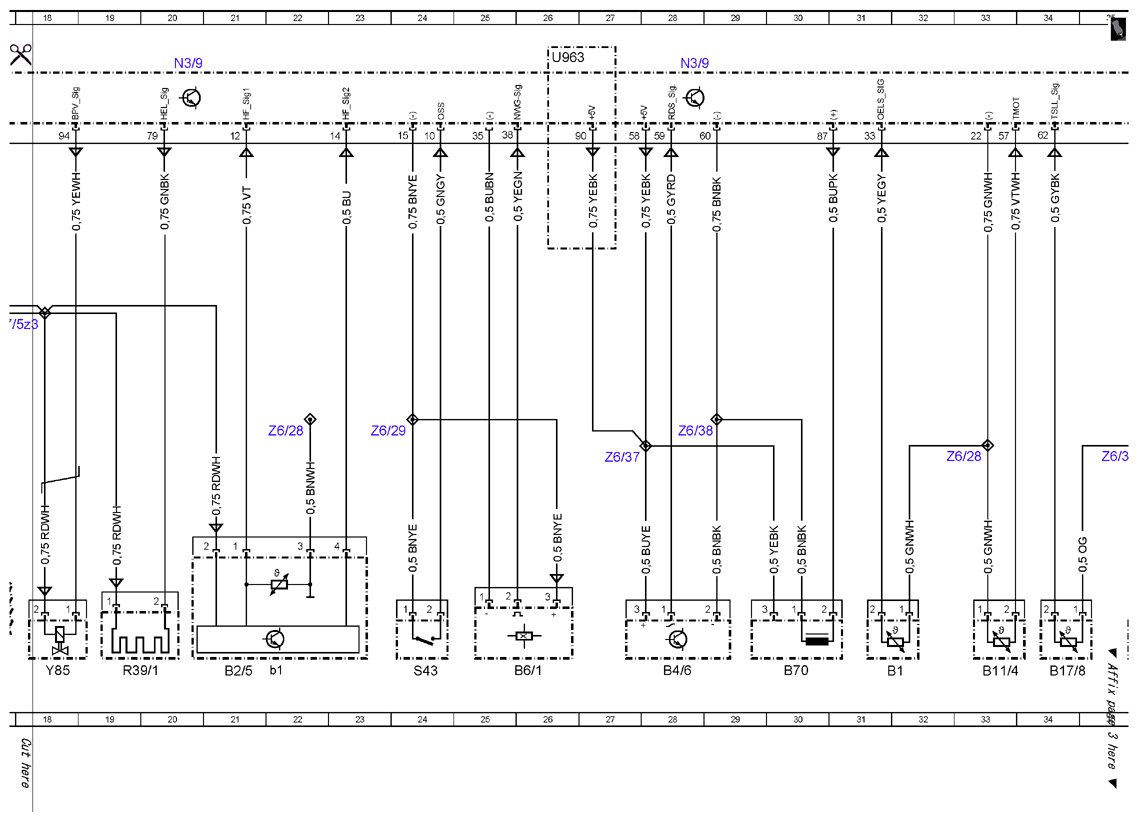

| Y85 |
Exhaust gas recirculation cooler bypass switchover valve |
18L |
| Z1z1 |
Fuel injector shielding connector sleeve |
5G |
| Z6/28 |
Sensor ground connector sleeve |
22G |
| Z6/28 |
Sensor ground connector sleeve |
33G |
| Z6/29 |
Sensor ground connector sleeve |
23G |
| Z6/31 |
Sensor voltage supply connector sleeve |
40E |
| Z6/31 |
Sensor voltage supply connector sleeve |
44E |
| Z6/32 |
Sensor ground connector sleeve |
41G |
| Z6/34 |
Sensor ground connector sleeve |
35G |
| Z6/37 |
Sensor voltage supply connector sleeve |
27G |
| Z6/38 |
Sensor ground connection connector sleeve |
28G |
| Z6/39 |
Sensor voltage supply connector sleeve |
47G |
| Z6/39 |
Sensor voltage supply connector sleeve |
44E |
| Z7/5z3 |
Circuit 87 connector sleeve |
18E |
