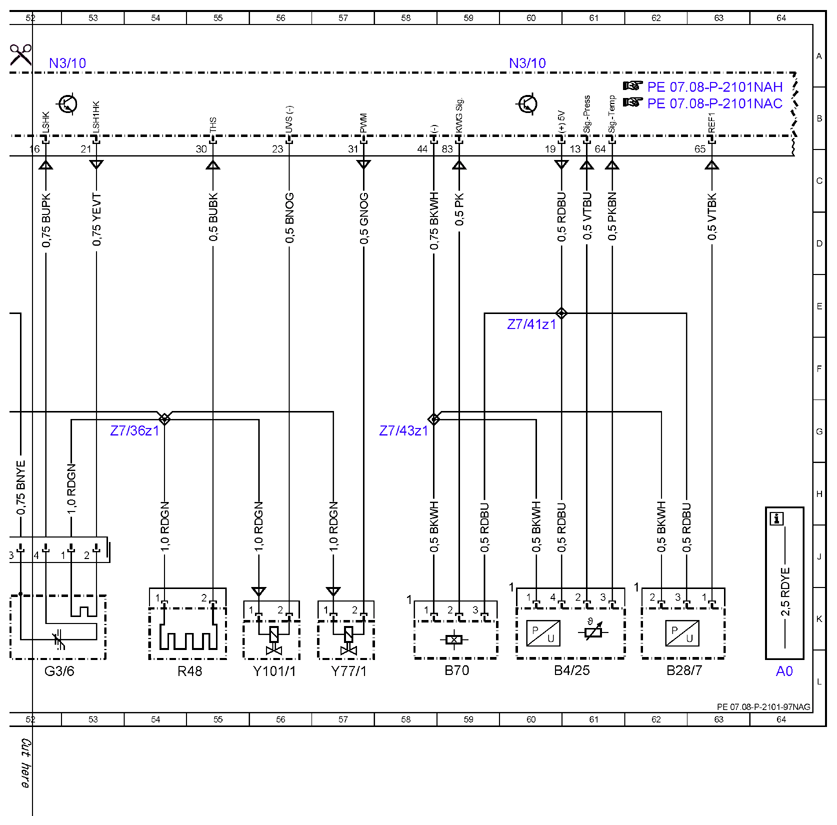

| A0 |
Color code key |
64L |

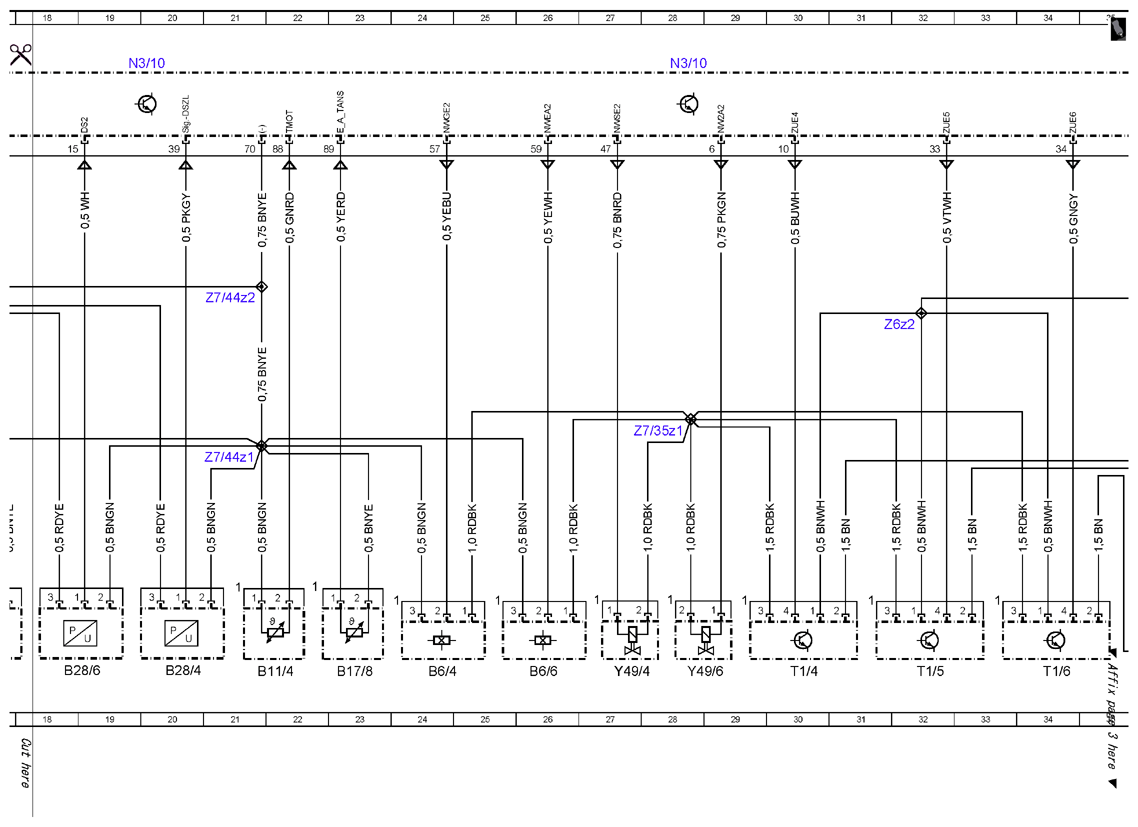

| B11/4 |
Coolant temperature sensor |
22L |
| B17/8 |
Charge air temperature sensor |
23L |
| B28/4 |
Pressure sensor downstream of left cylinder bank air filter |
20L |

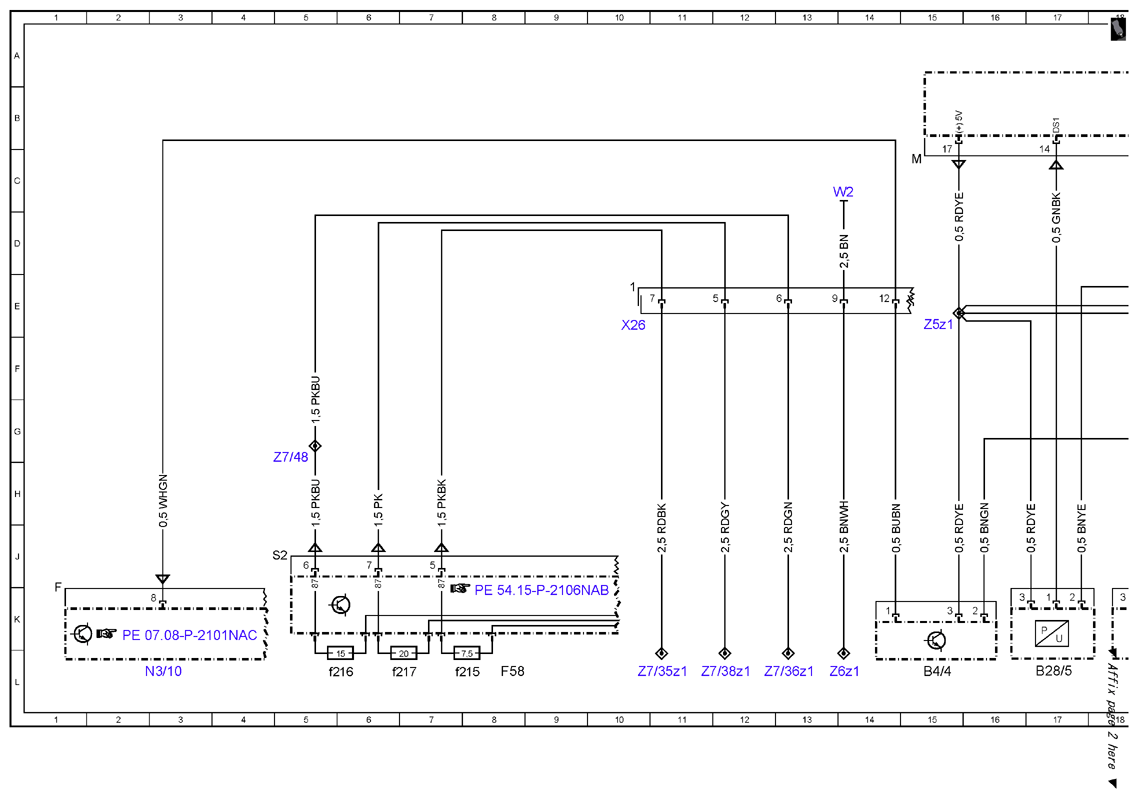

| B28/5 |
Pressure sensor downstream of air filter |
17L |
| B28/6 |
Pressure sensor upstream of throttle valve |
18L |
| B28/7 |
Pressure sensor downstream of throttle valve |
62L |
| B4/25 |
Fuel tank pressure and temperature sensor |
61L |
| B4/4 |
Purging pressure sensor |
15L |
| B6/4 |
Left intake camshaft Hall sensor |
24L |

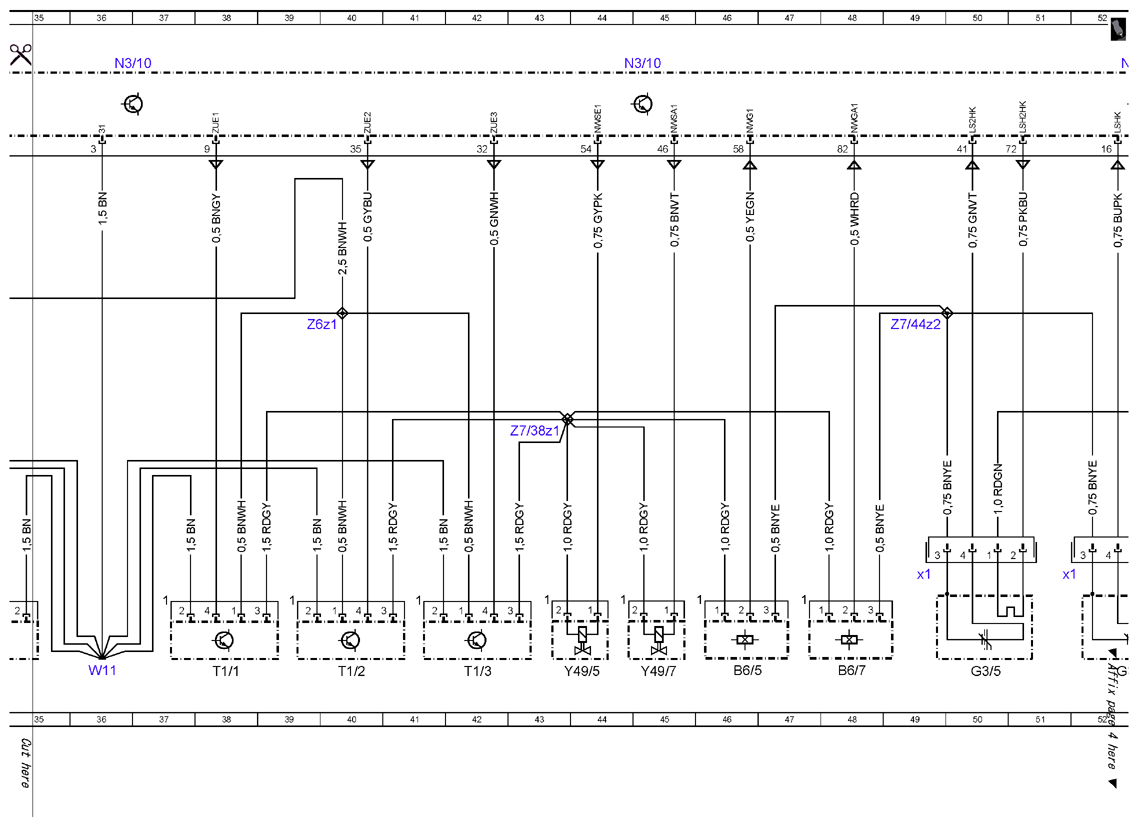

| B6/5 |
Right intake camshaft Hall sensor |
46L |
| B6/6 |
Left exhaust camshaft Hall sensor |
26L |
| B6/7 |
Right exhaust camshaft Hall sensor |
48L |
| B70 |
Crankshaft Hall sensor |
59L |
| F58 |
Engine compartment fuse and relay module |
8L |
| F58f215 |
Fuse 215 |
7L |
| F58f216 |
Fuse 216 |
5L |
| F58f217 |
Fuse 217 |
6L |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
50L |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
52L |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
49J |
| G3/6x1 |
Electrical connector for right oxygen sensor downstream of catalytic converter |
51J |
| N3/10 |
ME-SFI [ME] control unit |
3L |
| N3/10 |
ME-SFI [ME] control unit |
19A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/10 |
ME-SFI [ME] control unit |
36A |
| N3/10 |
ME-SFI [ME] control unit |
45A |
| N3/10 |
ME-SFI [ME] control unit |
52A |
| N3/10 |
ME-SFI [ME] control unit |
60A |
| R48 |
Coolant thermostat heating element |
54L |
| T1/1 |
Cylinder 1 ignition coil |
38L |
| T1/2 |
Cylinder 2 ignition coil |
40L |
| T1/3 |
Cylinder 3 ignition coil |
42L |
| T1/4 |
Cylinder 4 ignition coil |
30L |
| T1/5 |
Cylinder 5 ignition coil |
32L |
| T1/6 |
Cylinder 6 ignition coil |
34L |
| W11 |
Combustion engine ground point |
36L |
| W2 |
Right front ground point at lamp unit |
14C |
| X26 |
Interior and engine wiring harness electrical connector |
10E |
| Y101/1 |
Left bypass air switchover valve |
56L |
| Y49/4 |
Left intake camshaft solenoid |
27L |
| Y49/5 |
Right intake camshaft solenoid |
44L |
| Y49/6 |
Left exhaust camshaft solenoid |
28L |
| Y49/7 |
Right exhaust camshaft solenoid |
45L |
| Y77/1 |
Boost pressure control pressure transducer |
57L |
| Z5z1 |
Sensor voltage supply connector sleeve |
15E |
| Z6z1 |
Circuit 31 connector sleeve |
13L |
| Z6z1 |
Circuit 31 connector sleeve |
40E |
| Z6z2 |
Circuit 31 connector sleeve |
32E |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
10L |
| Z7/35z1 |
Circuit 87 M1e connector sleeve |
28G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
13L |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
54G |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
12L |
| Z7/38z1 |
Circuit 87 M1i connector sleeve |
43G |
| Z7/41z1 |
Sensor power supply connector sleeve |
60E |
| Z7/43z1 |
Sensor ground line connector sleeve |
58G |
| Z7/44z1 |
Sensor ground line connector sleeve |
21G |
| Z7/44z2 |
Sensor ground line connector sleeve |
21E |
| Z7/44z2 |
Sensor ground line connector sleeve |
49E |
| Z7/48 |
Circuit 87D2 connector sleeve |
5G |
