| A0 |
Color code key |
32L |
| A16/1 |
Knock sensor 1 |
6L |
| A16/2 |
Knock sensor 2 |
9L |
| A16/3 |
Knock sensor 3 |
7L |
| A16/4 |
Knock sensor 4 |
10L |

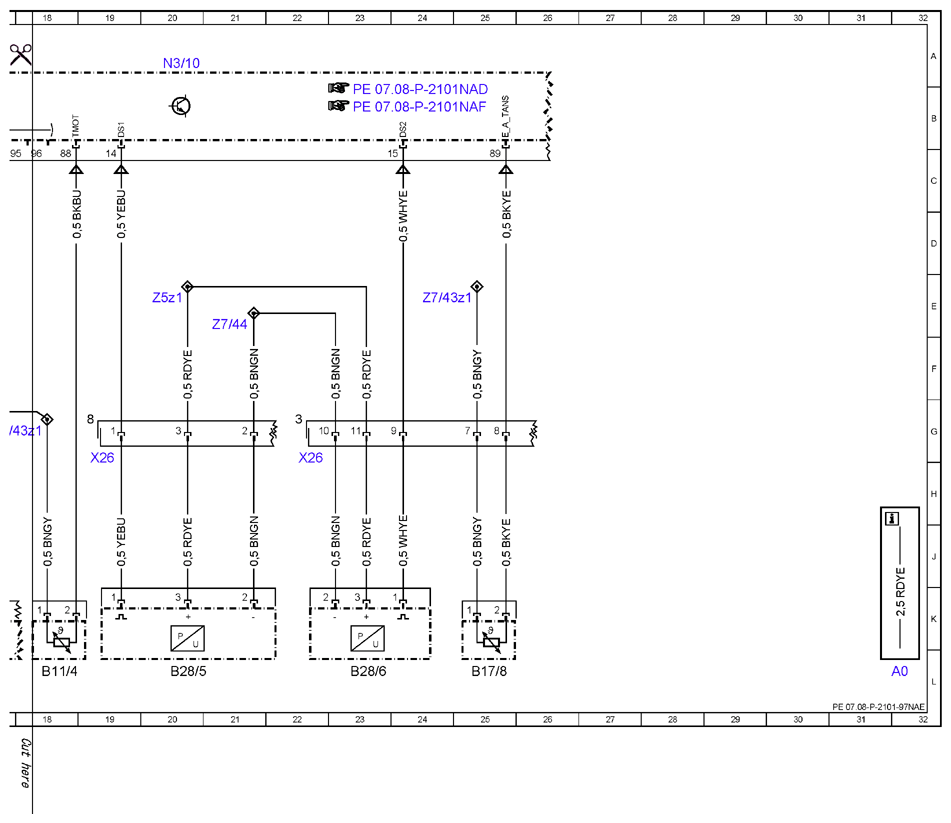

| B11/4 |
Coolant temperature sensor |
18L |
| B17/8 |
Charge air temperature sensor |
25L |
| B28/5 |
Pressure sensor downstream of air filter |
20L |
| B28/6 |
Pressure sensor upstream of throttle valve |
23L |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
12L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
11J |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
2L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
1J |

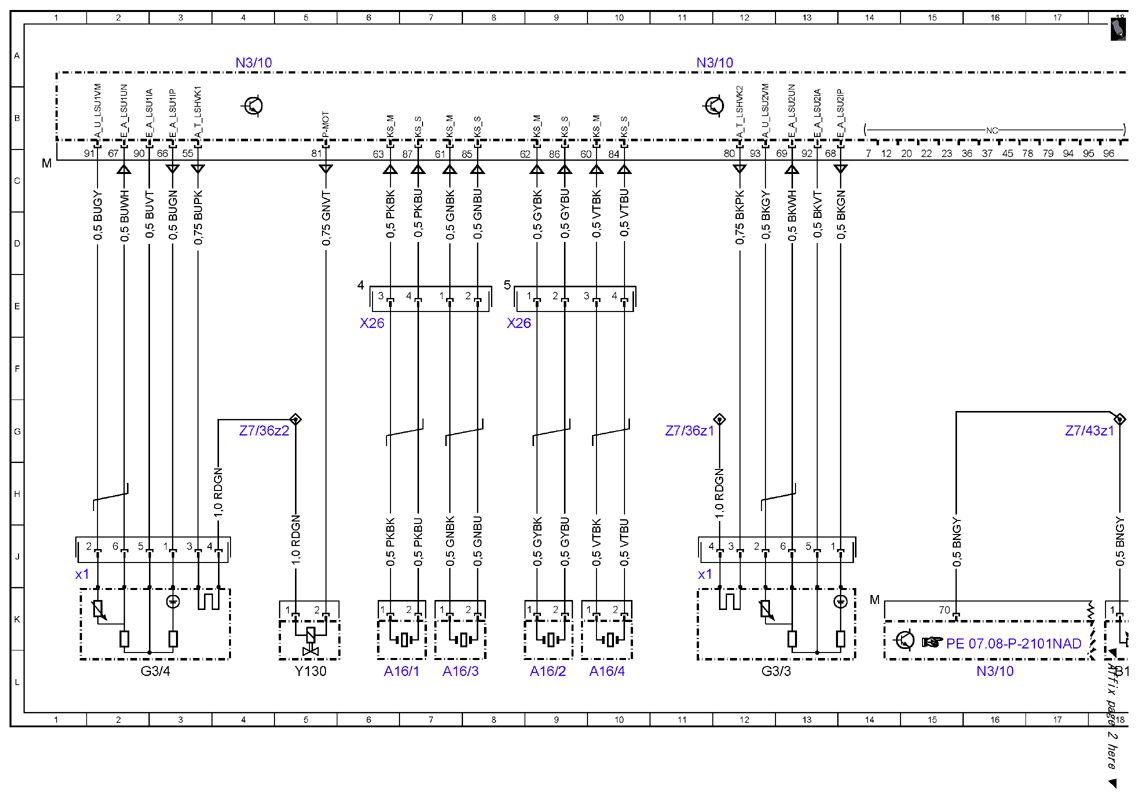

| N3/10 |
ME-SFI [ME] control unit |
16L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
11A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| X26 |
Interior and engine wiring harness electrical connector |
6E |
| X26 |
Interior and engine wiring harness electrical connector |
8E |
| X26 |
Interior and engine wiring harness electrical connector |
19G |
| X26 |
Interior and engine wiring harness electrical connector |
22G |
| Y130 |
Engine oil pump valve |
5L |
| Z5z1 |
Sensor voltage supply connector sleeve |
20E |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
11G |
| Z7/36z2 |
Circuit 87 M2e connector sleeve |
4G |
| Z7/43z1 |
Sensor ground line connector sleeve |
18G |
| Z7/43z1 |
Sensor ground line connector sleeve |
24E |
| Z7/44 |
Sensor ground connector sleeve |
21E |
