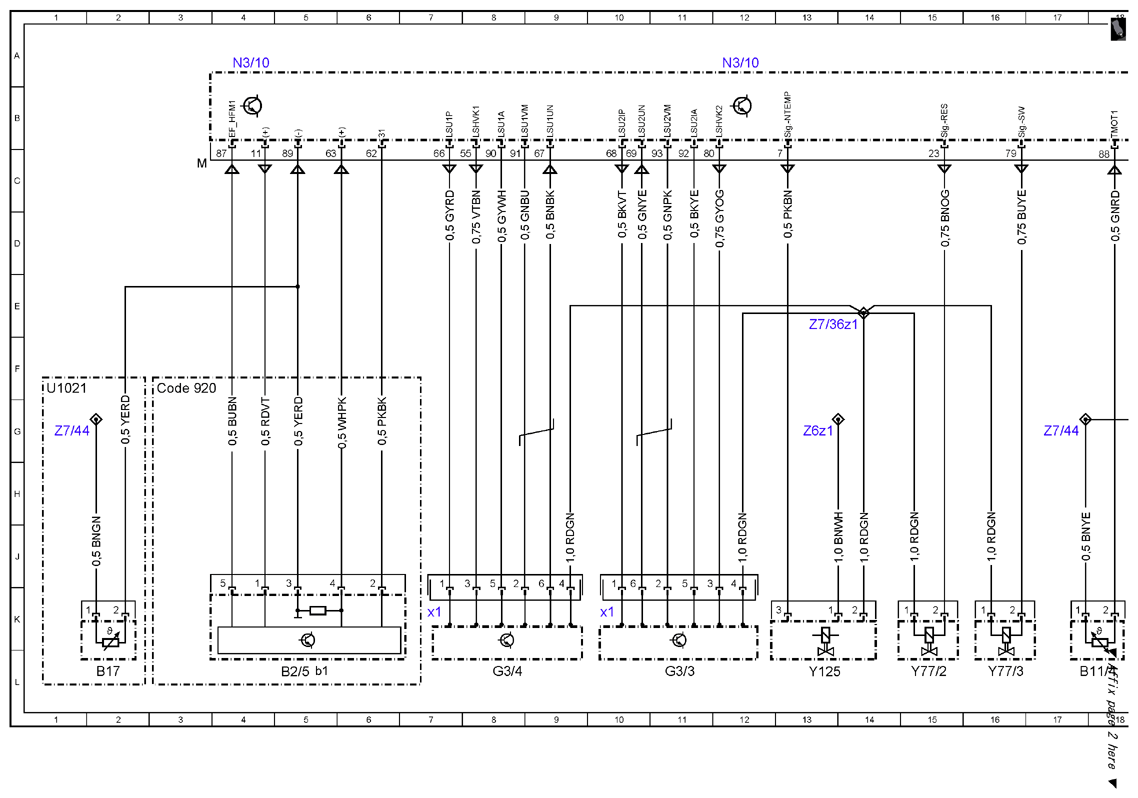

| A0 |
Color code key |
32L |
| B11/4 |
Coolant temperature sensor |
18L |
| B17 |
Intake air temperature sensor |
2L |
| B2/5 |
Hot film mass air flow sensor |
5L |
| B2/5b1 |
Intake air temperature sensor |
5L |
| Code 920 |
Gasoline direct injection with stratified charge |
3F |
| Code 920 |
Gasoline direct injection with stratified charge |
22F |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
11L |
| G3/3x1 |
Electrical connector for left oxygen sensor upstream of catalytic converter |
10K |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
8L |
| G3/4x1 |
Electrical connector for right oxygen sensor upstream of catalytic converter |
7K |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N3/10 |
ME-SFI [ME] control unit |
12A |
| N3/10 |
ME-SFI [ME] control unit |
20A |
| N3/10 |
ME-SFI [ME] control unit |
20L |
| N3/10 |
ME-SFI [ME] control unit |
26A |
| U1021 |
Valid without code 920 gasoline direct injection stratified charge |
1F |
| Y125 |
Low-temperature circuit shutoff valve |
13L |
| Y77/2 |
Intake manifold resonance flap switchover valve |
15L |
| Y77/3 |
Intake manifold selector drum switchover valve |
16L |

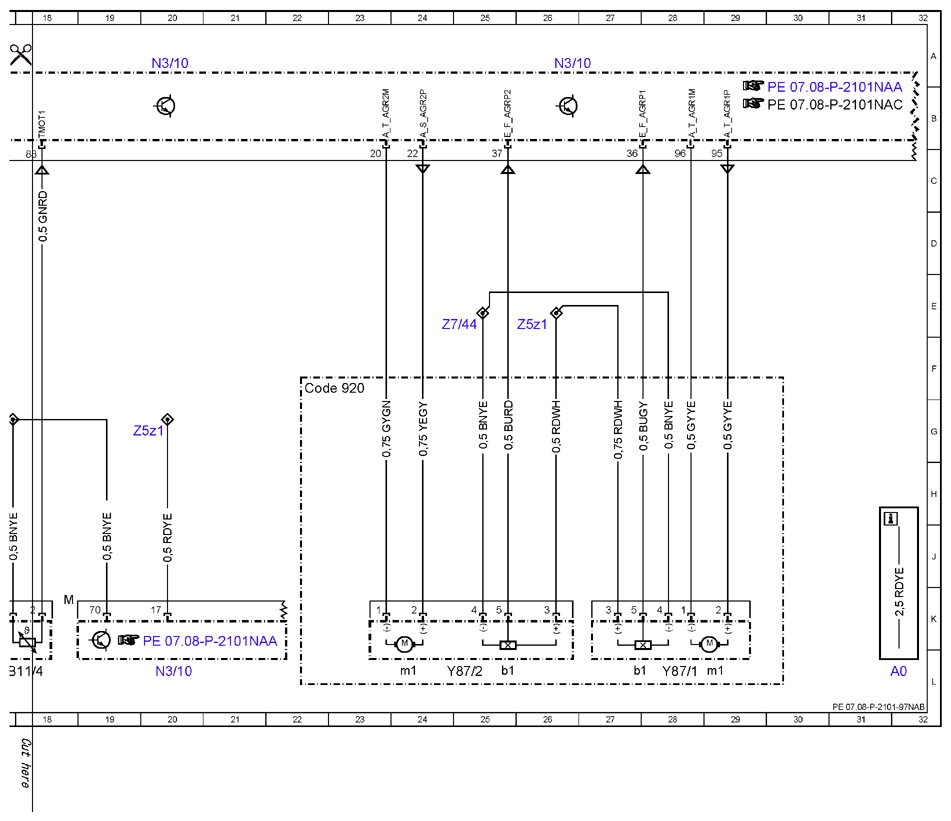

| Y87/1 |
Right exhaust gas recirculation positioner |
28L |
| Y87/1b1 |
Right exhaust gas recirculation Hall sensor |
27L |
| Y87/1m1 |
Right exhaust gas recirculation actuation motor |
29L |
| Y87/2 |
Left exhaust gas recirculation positioner |
25L |
| Y87/2b1 |
Left exhaust gas recirculation Hall sensor |
25L |
| Y87/2m1 |
Left exhaust gas recirculation actuation motor |
24L |
| Z5z1 |
Sensor voltage supply connector sleeve |
26E |
| Z5z1 |
Sensor voltage supply connector sleeve |
20G |
| Z6z1 |
Circuit 31 connector sleeve |
13G |
| Z7/36z1 |
Circuit 87 M2e connector sleeve |
13E |
| Z7/44 |
Sensor ground connector sleeve |
17G |
| Z7/44 |
Sensor ground connector sleeve |
1G |
| Z7/44 |
Sensor ground connector sleeve |
25E |
