Remove/install throttle valve actuator - AR07.51-P-1401OGR
ENGINE 642 in MODEL 166
| Remove/install | |||
| 1 | Remove noise damper downstream of charge air cooler | AR09.40-P-6925GZB | |

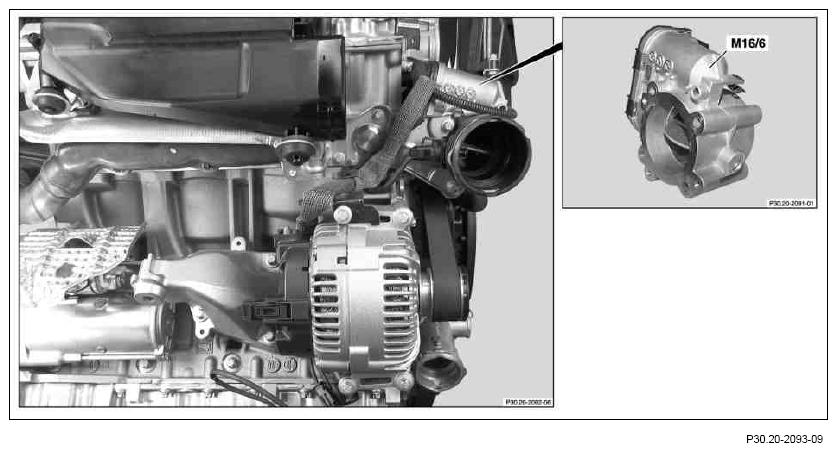

| 2 | Disconnect electrical plug connector on throttle valve actuator (M16/6) | ||
| 3 | Remove engine charge air duct downstream of charge air cooler | AR09.41-P-8624OGR | |
| 4 | Remove screw/bolts for throttle valve actuator (M16/6) on mixing chamber | *BA09.41-P-1008-01J | |
| 5 | Take out throttle valve actuator (M16/6) | ||
| 6 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA09.41-P-1008-01J | Throttle valve actuator to mixing chamber | Nm | 5 |
