Overview of system components for gasoline injection and ignition system with direct injection - GF07.70-P-9998MMX

ENGINE 276.8 in MODEL 166 (except 166.063) as of model year 2016

ENGINE 276.8 in MODEL 292

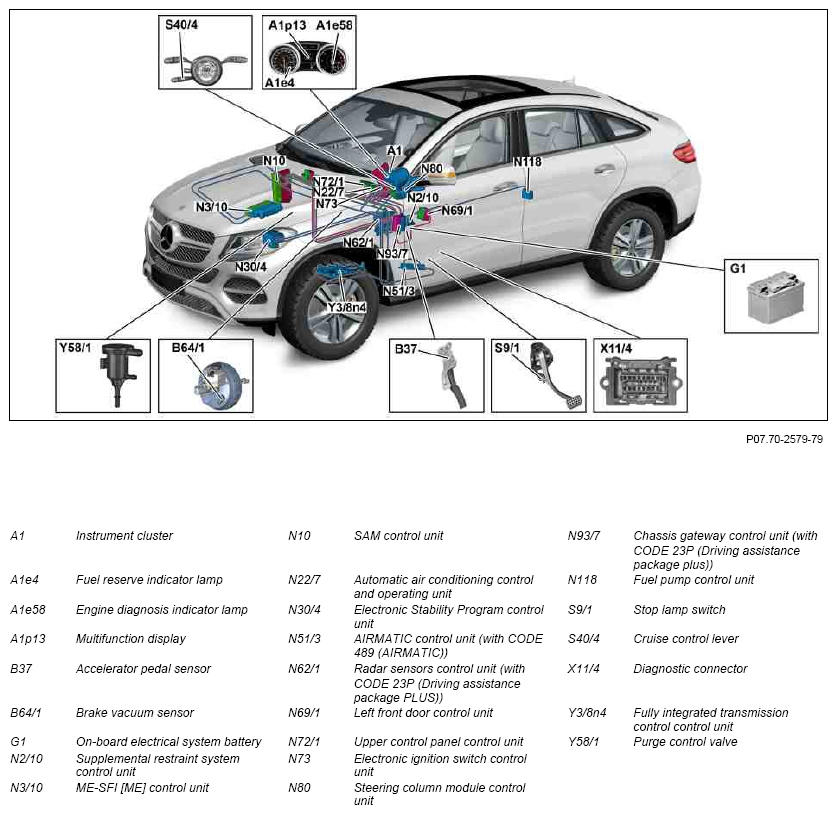

Fig 1: Overview Of Gasoline Injection And Ignition System Components
G09981756Courtesy of MERCEDES-BENZ USA

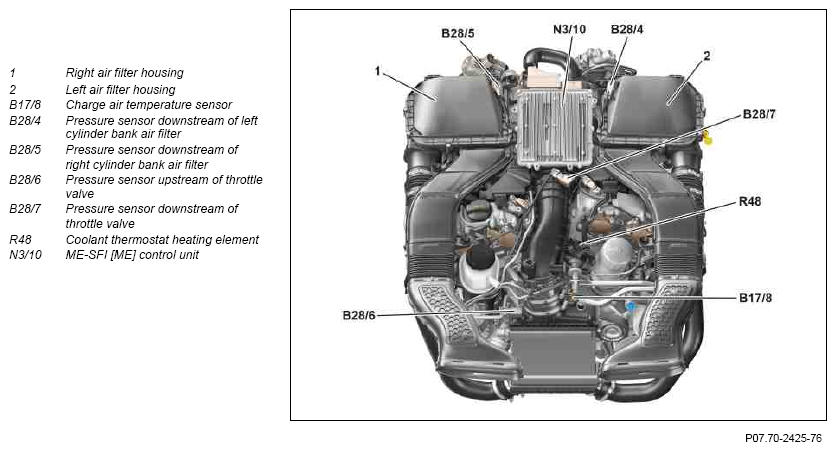

View of engine from the front top

Fig 2: View Of Engine Components (Front Top)
G09981757Courtesy of MERCEDES-BENZ USA

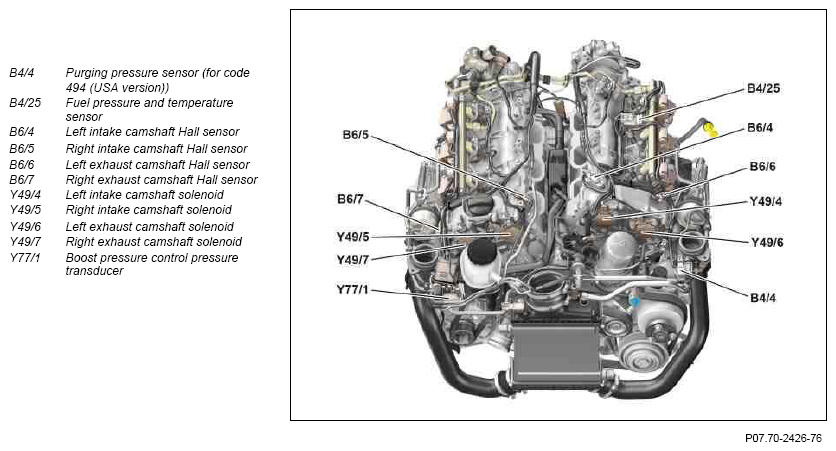

View of engine from the front top

Fig 3: View Of Engine Components (Front Top)
G09981758Courtesy of MERCEDES-BENZ USA

View of engine from the front top

Fig 4: View Of Engine Components (Front Top)
G09981759Courtesy of MERCEDES-BENZ USA

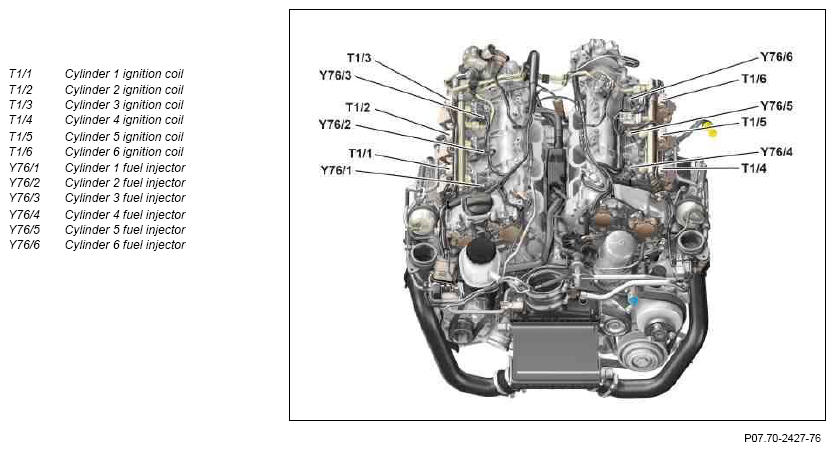

View of engine from the front

Fig 5: View Of Engine Components (Front)
G09981760Courtesy of MERCEDES-BENZ USA

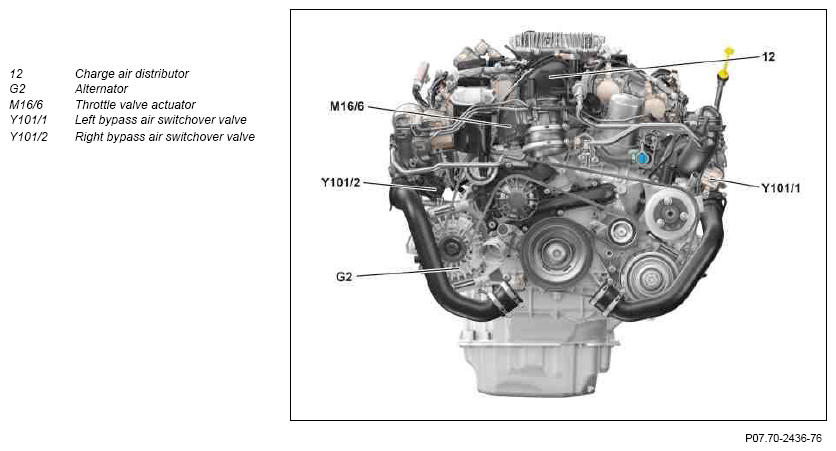

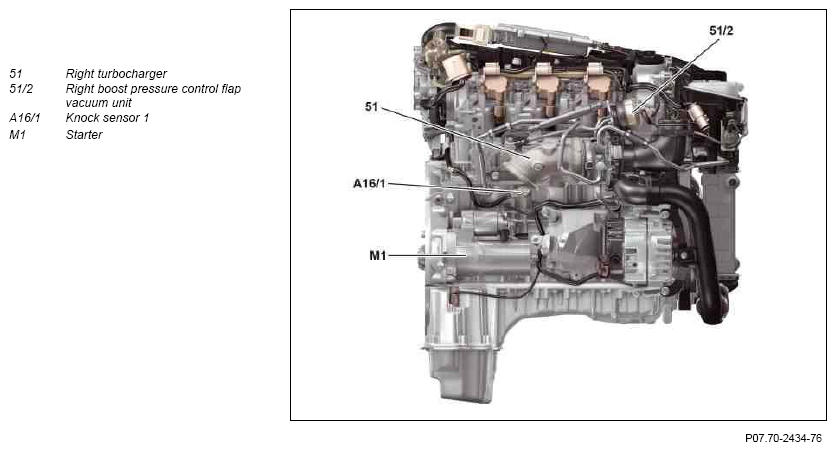

View of engine from the right

Fig 6: View Of Engine Components (Right)
G09981761Courtesy of MERCEDES-BENZ USA

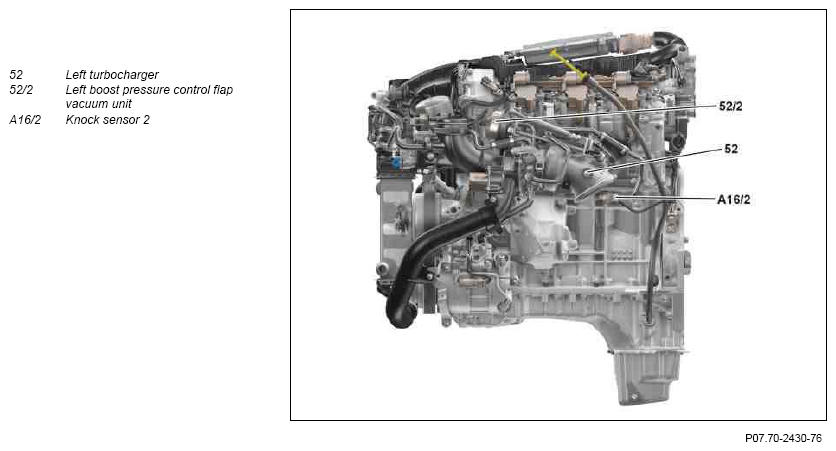

View of engine from the left

Fig 7: View Of Engine Components (Left)
G09981762Courtesy of MERCEDES-BENZ USA

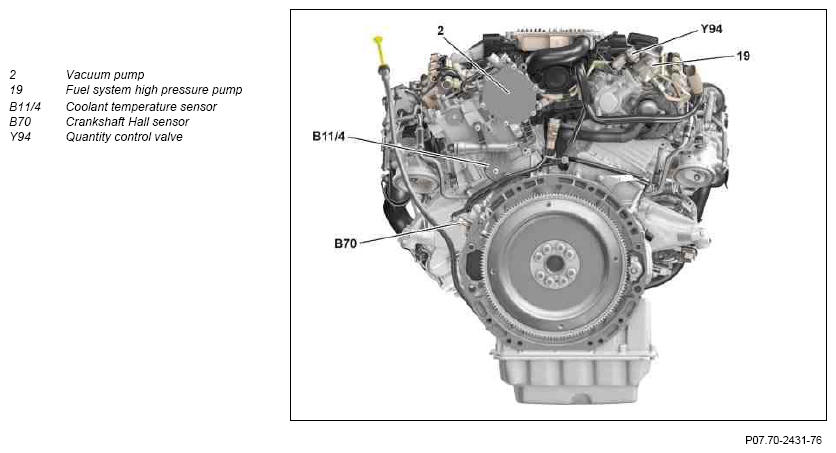

View of engine from the rear

Fig 8: View Of Engine Components (Rear)
G09981763Courtesy of MERCEDES-BENZ USA

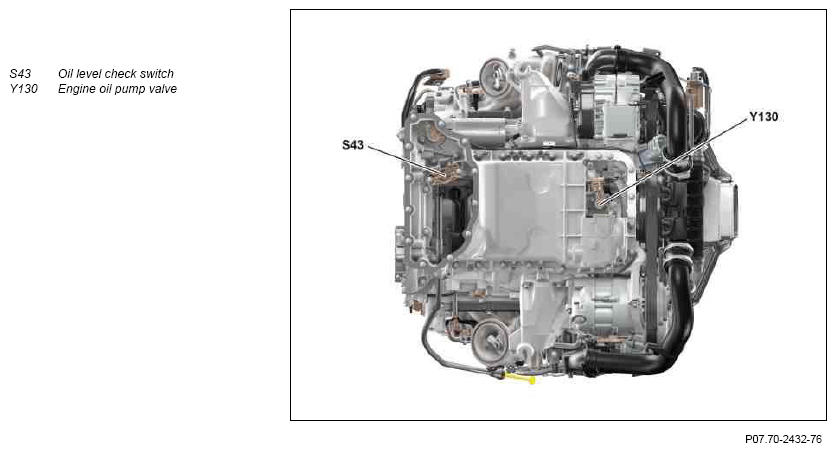

View of engine from the below

Fig 9: View Of Engine Components
G09981764Courtesy of MERCEDES-BENZ USA

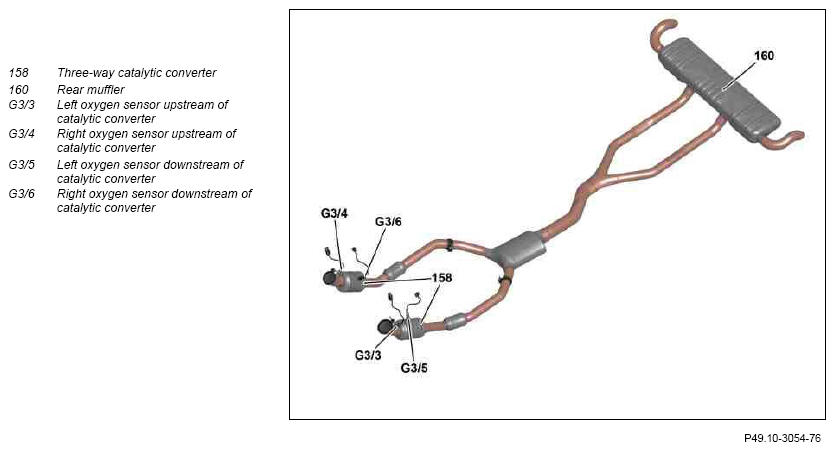

Display of exhaust system

Fig 10: View Of Exhaust System Components
G09981765Courtesy of MERCEDES-BENZ USA

Shown: low-temperature circuit

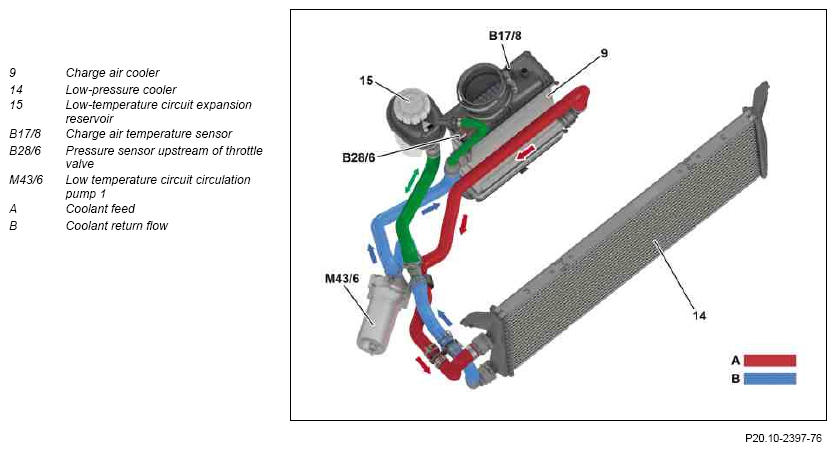

Fig 11: Charge Air Cooler Flow Diagram
G09981766Courtesy of MERCEDES-BENZ USA

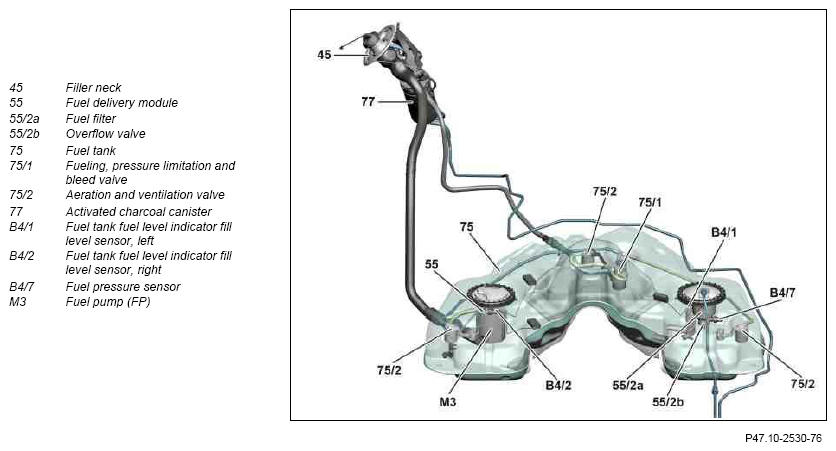

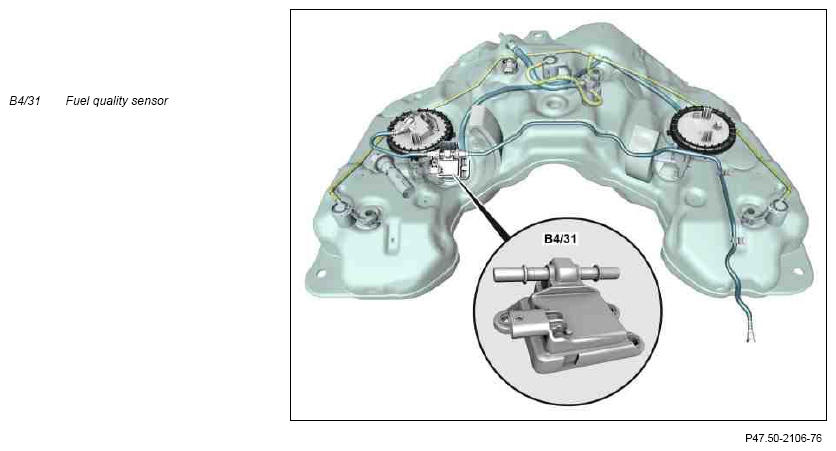

Phantom view of the fuel tank (except code 494 (USA version))

Fig 12: View Of Fuel Tank Components
G09981767Courtesy of MERCEDES-BENZ USA

Phantom view of fuel tank (for code 494 (USA version) and for code 929 (Engine for ethanol fuel))

Fig 13: View Of Fuel Tank Components
G09981768Courtesy of MERCEDES-BENZ USA

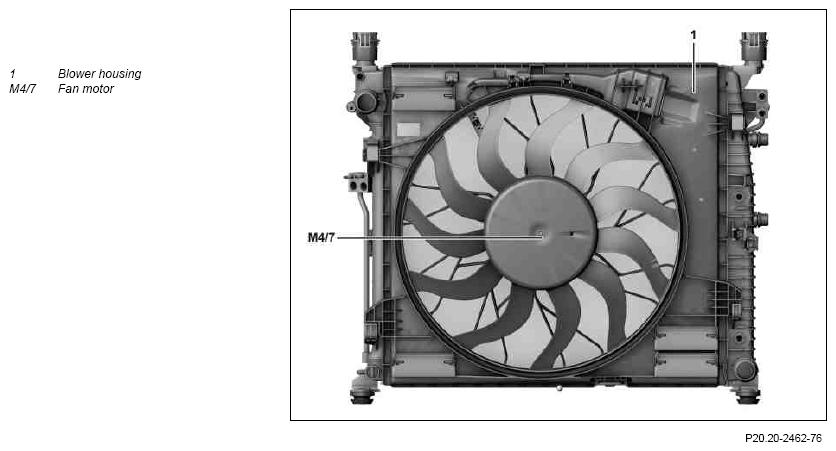

View of the radiator from the rear

Fig 14: View Of Radiator Components (Rear)
G09981769Courtesy of MERCEDES-BENZ USA

View of driver side footwell

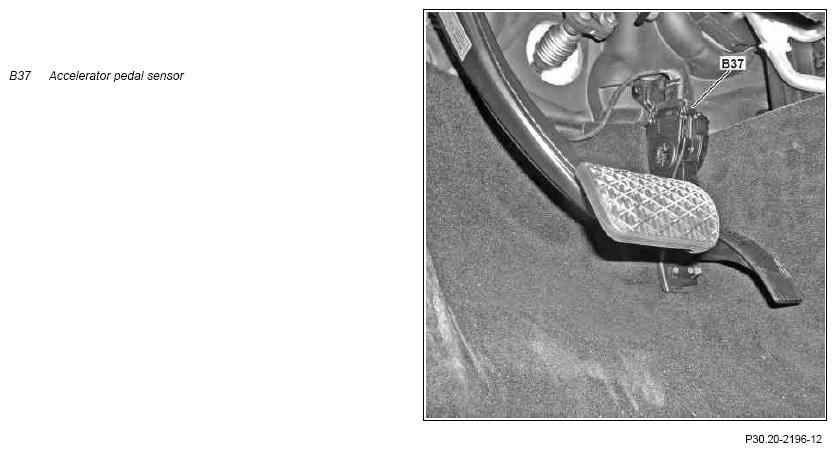

Fig 15: View Of Driver Side Footwell Components
G09981770Courtesy of MERCEDES-BENZ USA

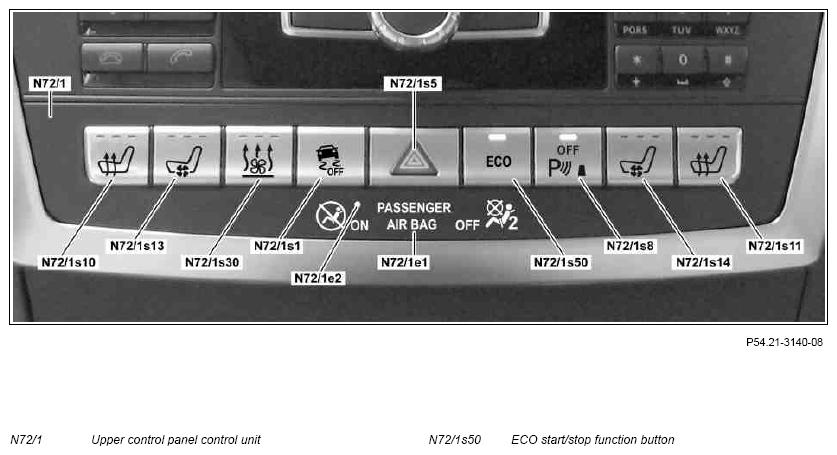

Fig 16: View Of Upper Control Panel
G09981771Courtesy of MERCEDES-BENZ USA

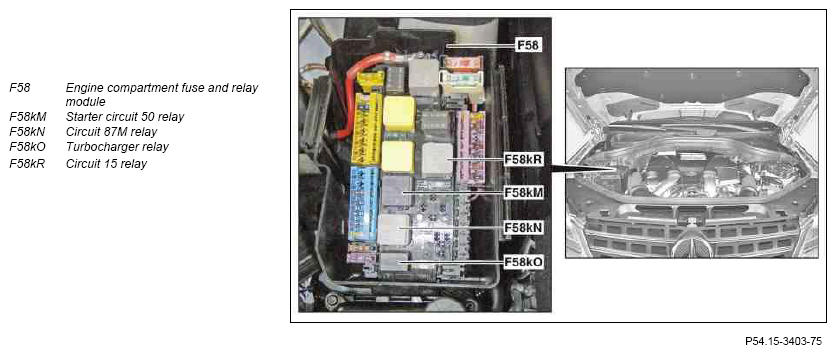

Shown on engine compartment fuse and relay module (on model 166)

Fig 17: Identifying Upper Control Panel Control Unit And ECO Start/Stop Function Button
G09981772Courtesy of MERCEDES-BENZ USA
  Component description for instrument cluster A1 GF54.30-P-6000GN
  Supplemental restraint system control unit, component description N2/10 GF91.60-P-4080GN
  Component description for ME-SFI (ME) control unit N3/10 GF07.61-P-6000MMX
  SAM control unit, component description N10 GF54.21-P-4157GN
  Component description for climate control and operating unit N22/7 GF83.40-P-3002GN
  Component description for Electronic Stability Program control unit N30/4 GF42.45-P-5119GN
  AIRMATIC control unit, component description MODEL 166 (except 166.063) with ENGINE 276.8
as of model year 2016
with CODE 489 (AIRMATIC)
MODEL 292 with ENGINE 276.8
with CODE 489 (AIRMATIC)
N51/3		 GF32.22-P-5110GN
  Component description for radar sensors control unit MODEL 166 (except 166.063) with ENGINE 276.8
as of model year 2016
with CODE 23P (Driving Assistance package Plus)
MODEL 292 with ENGINE 276.8
with CODE 23P (Driving Assistance package Plus)
N62/1		 GF30.30-P-3301GN
  Component description for left front door control unit N69/1 GF72.29-P-6001GN
  Upper control panel control unit, component description N72/1 GF54.21-P-6040GN
  Component description for the electronic ignition lock control unit N73 GF80.57-P-6001GN
  Component description for steering column tube module control unit N80 GF54.21-P-6051GN
  Component description for chassis gateway control unit MODEL 166 (except 166.063) with ENGINE 276.8
as of model year 2016
with CODE 23P (Driving Assistance package Plus)
MODEL 292 with ENGINE 276.8
with CODE 23P (Driving Assistance package Plus)
N93/7		 GF54.21-P-1010GN
  Component description for fuel pump control unit N118 GF47.40-P-2001MNG
  Component description for fully integrated transmission control unit ENGINE 276.8 in MODEL 166 (except 166.063) with TRANSMISSION 725.0
as of model year 2016
Y38n4		 GF27.60-P-5165ANF
TRANSMISSION 725.0 in MODEL 292 with ENGINE 276.8
Y38n4		 GF27.60-P-5165ANJ
