Overview of system components for gasoline injection and ignition system with direct injection - GF07.70-P-9998MMU

ENGINE 276.8 in MODEL 166 up to model year 2016

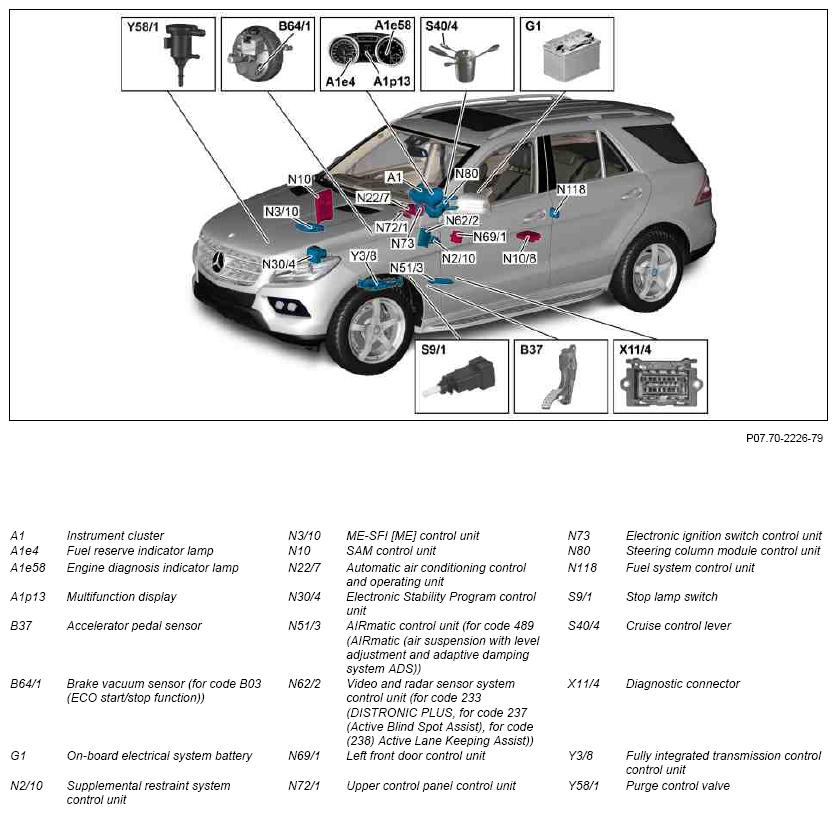

Fig 1: Overview Of Gasoline Injection And Ignition System Components - Shown On Model 166.0

Courtesy of MERCEDES-BENZ USA

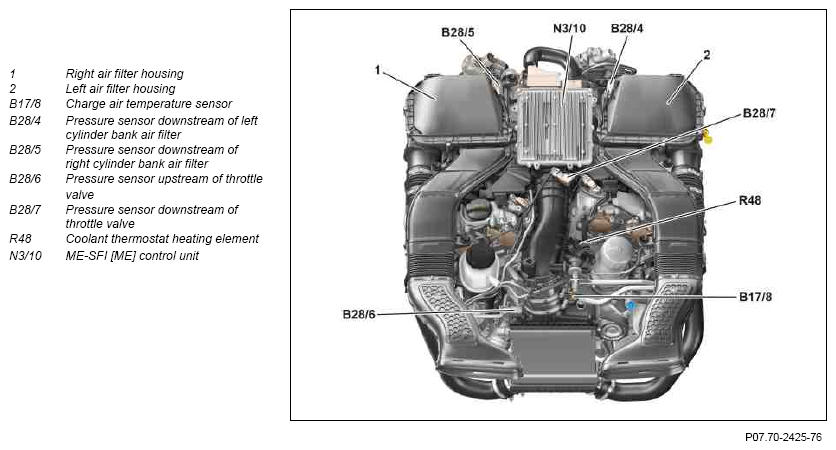

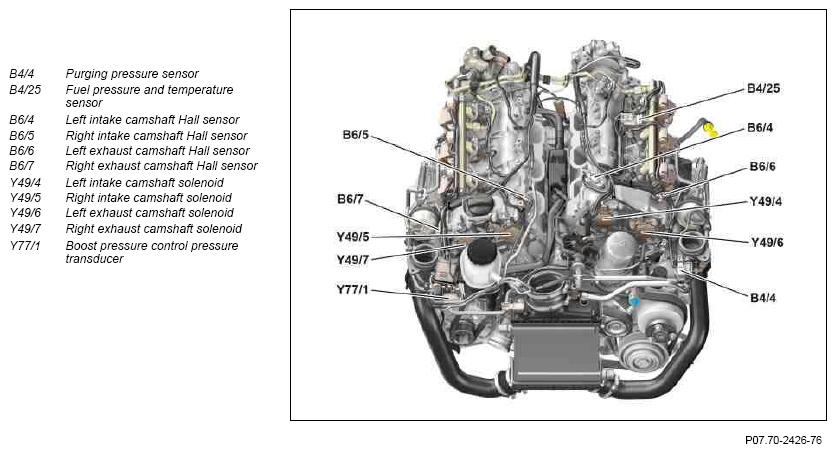

View of engine from the front top

Fig 2: View Of Engine Components (Front Top)

Courtesy of MERCEDES-BENZ USA

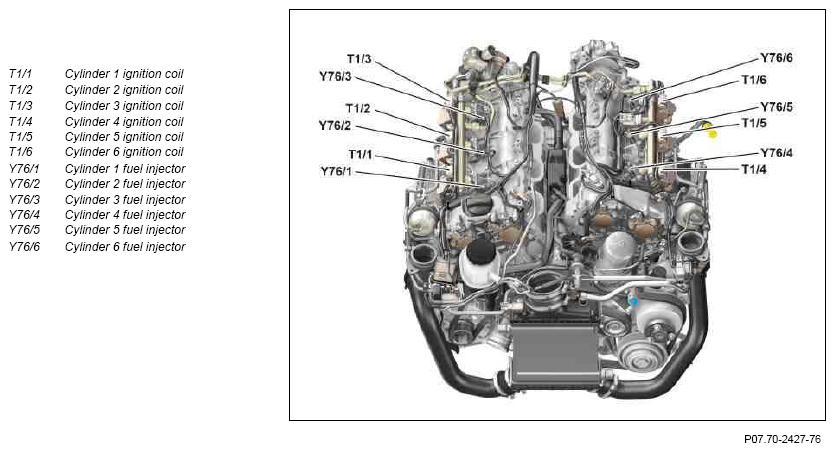

View of engine from the front top

Fig 3: View Of Engine Components (Front Top)

Courtesy of MERCEDES-BENZ USA

View of engine from the front top

Fig 4: View Of Engine Components (Front Top)

Courtesy of MERCEDES-BENZ USA

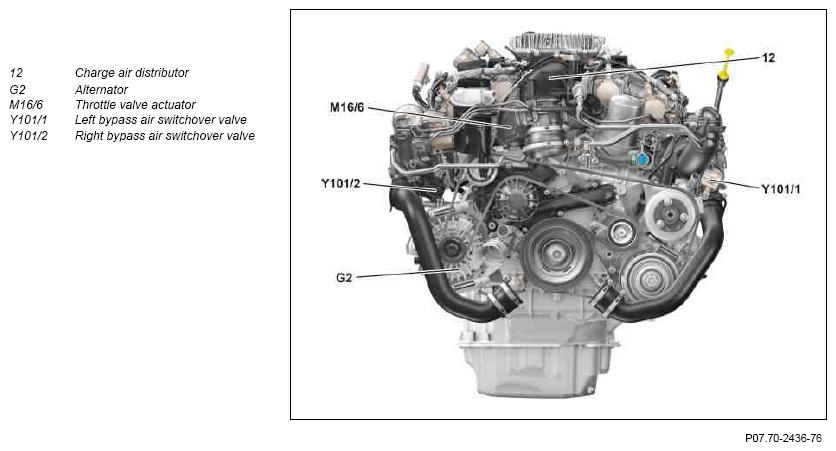

View of the engine from the front

Fig 5: View Of Engine Components (Front)

Courtesy of MERCEDES-BENZ USA

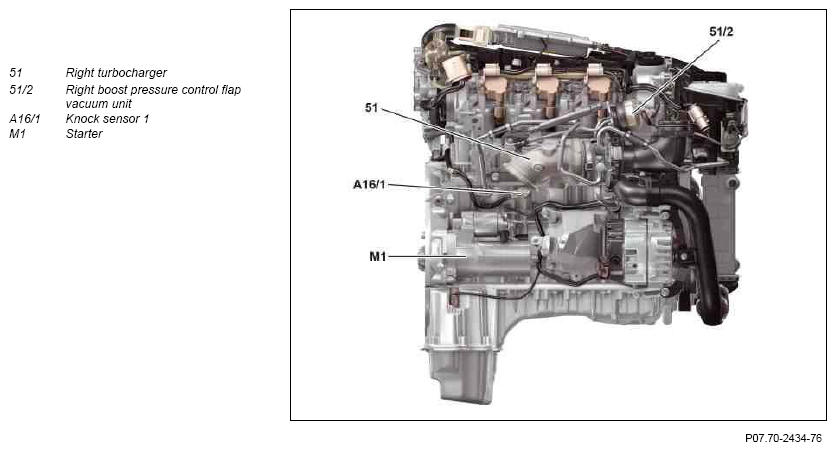

View of engine from right

Fig 6: View Of Engine Components (Right)

Courtesy of MERCEDES-BENZ USA

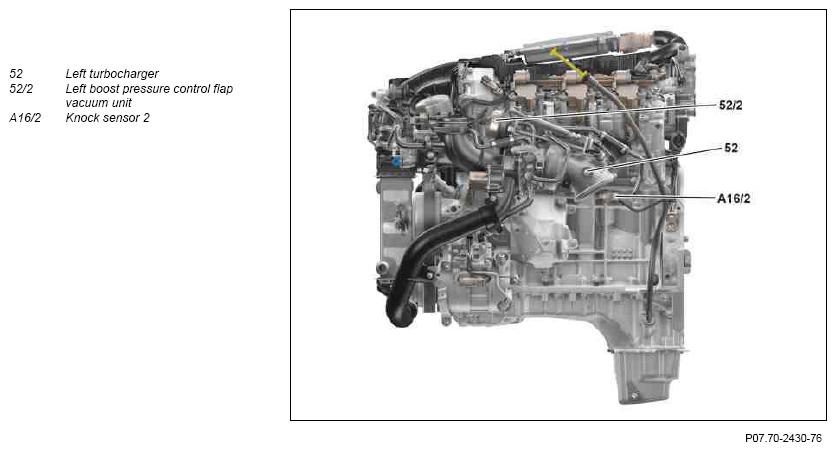

View of engine from left

Fig 7: View Of Engine Components (Left)

Courtesy of MERCEDES-BENZ USA

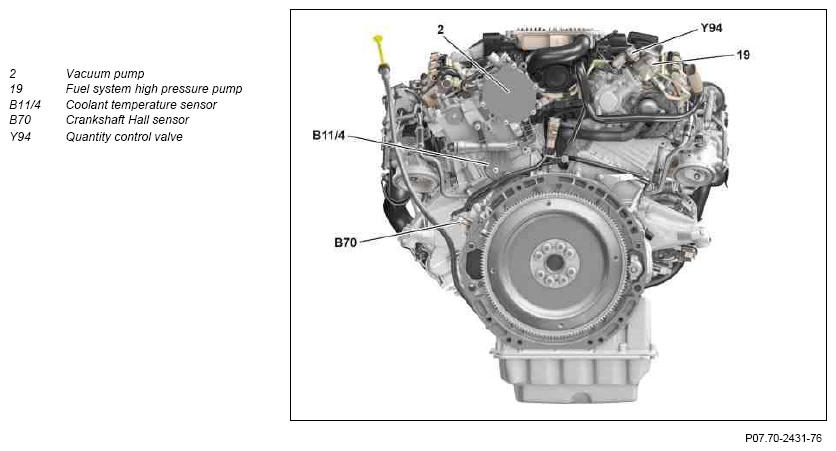

View of the engine from the rear

Fig 8: View Of Engine Components (Rear)

Courtesy of MERCEDES-BENZ USA

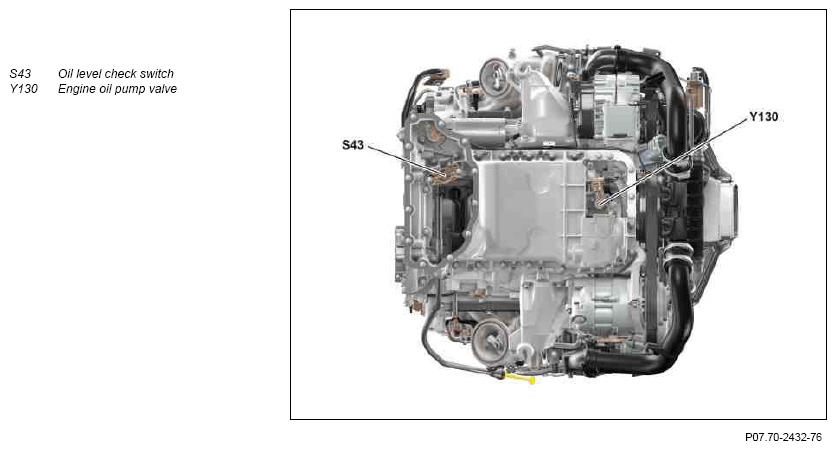

Engine view from below

Fig 9: View Of Engine Components

Courtesy of MERCEDES-BENZ USA

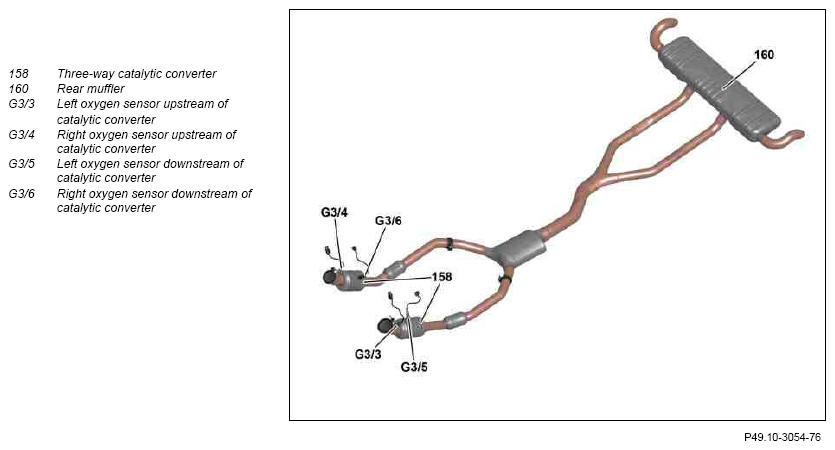

Display of exhaust system

Fig 10: View Of Exhaust System Components

Courtesy of MERCEDES-BENZ USA

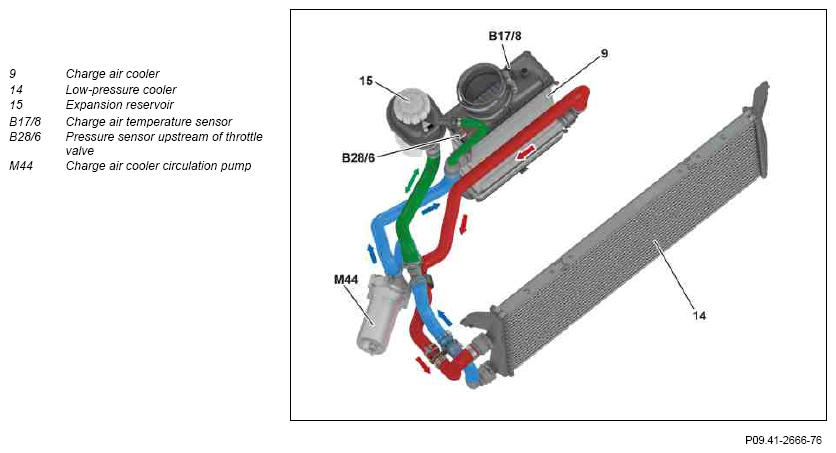

Shown: low-temperature circuit

Fig 11: Charge Air Cooler Circulation Pump Flow Diagram

Courtesy of MERCEDES-BENZ USA

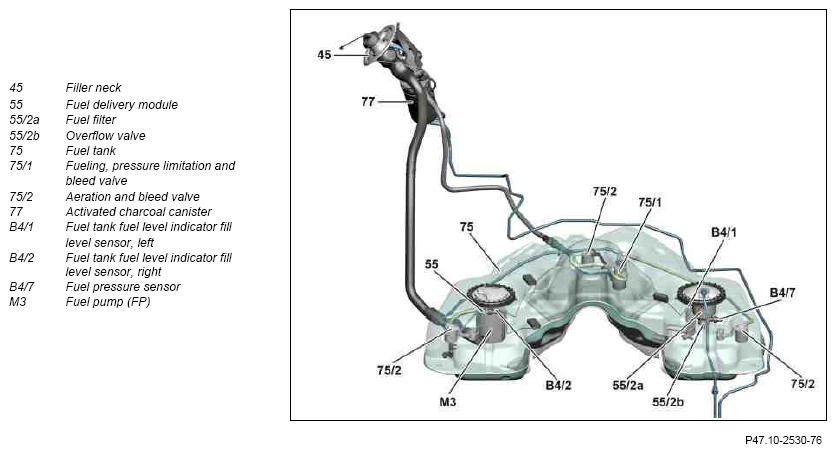

Phantom view of the fuel tank (except code 494 (USA version))

Fig 12: View Of Fuel Tank Components

Courtesy of MERCEDES-BENZ USA

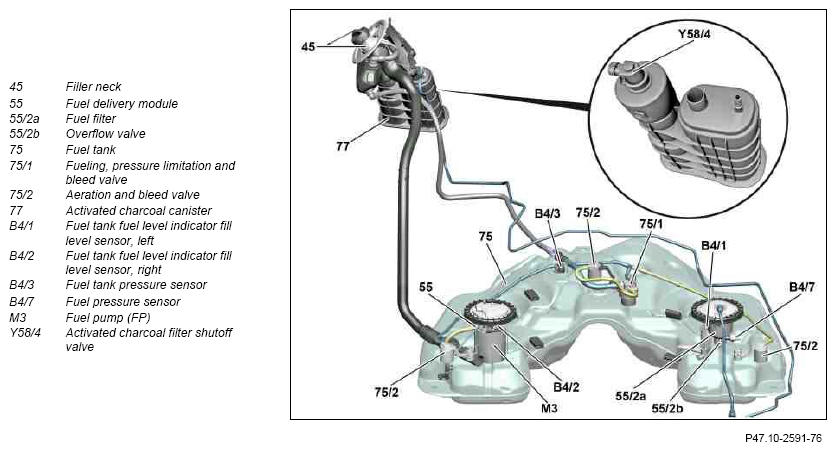

Phantom view of fuel tank (with CODE 494 (USA version))

Fig 13: View Of Fuel Tank Components

Courtesy of MERCEDES-BENZ USA

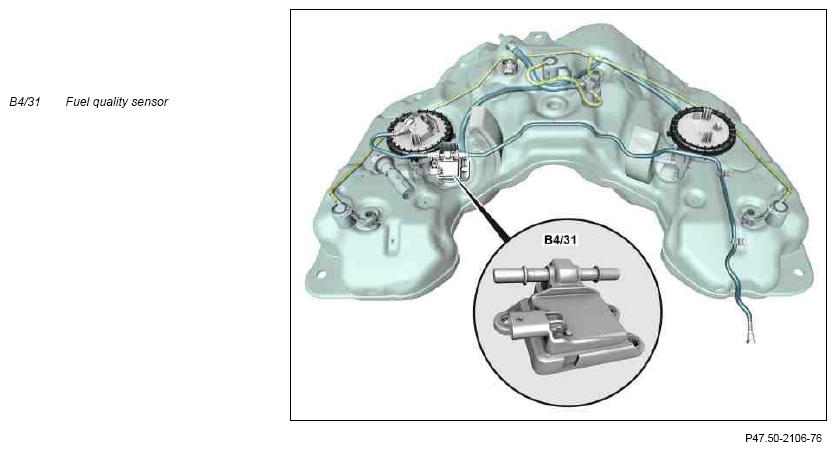

Phantom view of fuel tank (for code 494 (USA version) and for code 929 (Engine for ethanol fuel))

Fig 14: View Of Fuel Tank Components

Courtesy of MERCEDES-BENZ USA

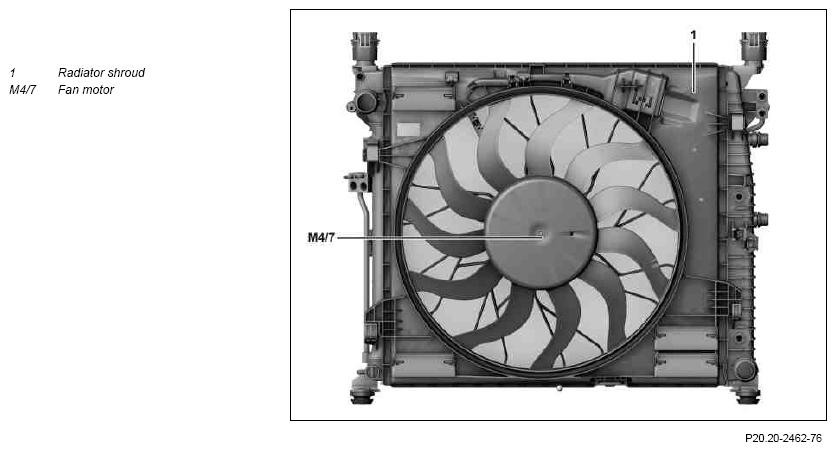

View of the radiator from the rear

Fig 15: View Of Radiator Components (Rear)

Courtesy of MERCEDES-BENZ USA

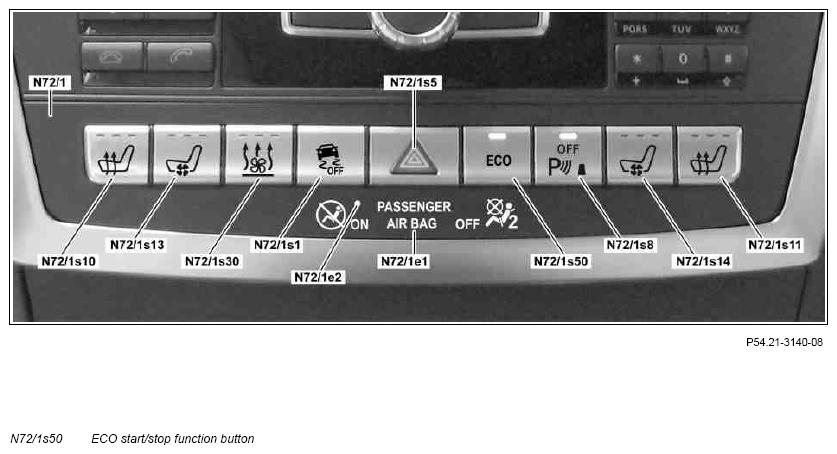

Fig 16: Identifying ECO Start/Stop Function Button - Shown On Upper Control Panel Control Unit (N72/1)

Courtesy of MERCEDES-BENZ USA

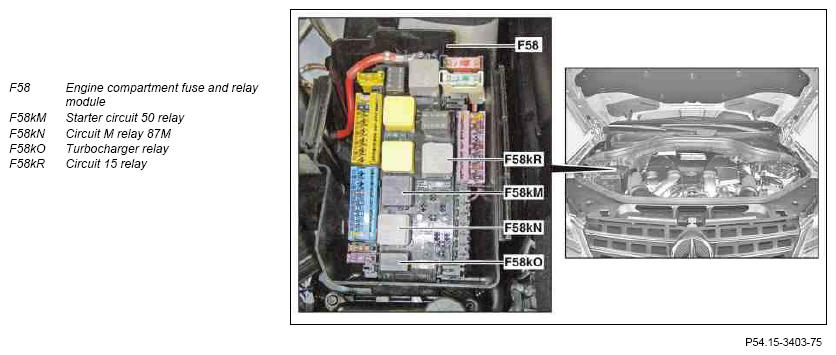

Illustration of engine compartment fuse and relay module

Fig 17: Identifying Engine Compartment Fuse And Relay Modules

Courtesy of MERCEDES-BENZ USA

Component description for instrument cluster	A1	GF54.30-P-6000GR
Supplemental restraint system control unit, component description	N2/10	GF91.60-P-4080GR
Component description for ME-SFI (ME) control unit	N3/10	GF07.61-P-6000MMU
SAM control unit, component description	N10	GF54.21-P-4157GR
Component description for automatic air conditioning control and operating unit	N22/7	GF83.40-P-3000GR
Component description for Electronic Stability Program control unit	N30/4	GF42.45-P-5119GR
AIRmatic control unit, component description	ENGINE 276.8 in MODEL 166 up to model year 2016 with CODE 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system (ADS))) N51/3	GF32.22-P-5109GR
Component description for video and radar sensor system control unit	ENGINE 276.8 in MODEL 166 up to model year 2016 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) N62/2	GF30.30-P-3304GR
Component description for left front door control unit	N69/1	GF72.29-P-6001GR
Upper control panel control unit, component description	N72/1	GF54.21-P-6040GR
Component description for the electronic ignition lock control unit	N73	GF80.57-P-6001GR
Component description for steering column tube module control unit	N80	GF54.21-P-6051GR
Component description for fuel pump control unit	N118	GF47.40-P-2001MMG
Component description for fully integrated transmission control unit	ENGINE 276.8 in MODEL 166 with TRANSMISSION 722.9 up to model year 2016	GF27.60-P-5165AHA
Table of contents for function description of gasoline injection and ignition system with direct injection	ENGINE 276.8 in MODEL 166 up to model year 2016	GF07.70-P-0998MMG
