Camshaft adjustment, function - GF07.10-P-1016MMR

ENGINE 157.9, 278.9 in MODEL 166 up to model year 2016

Function requirements for camshaft adjustment, general points

Camshaft adjustment, general points

With camshaft adjustment all four camshafts can be adjusted continuous for up to 40° CKA (CrankAngle). This means the valve overlap in the event of a gas exchange can be varied within wide limits.

This optimizes engine torque characteristics and improves the exhaust characteristics.

IMPORTANT Valve overlap

The intake valves open before the exhaust valves close.

For camshaft adjustment, the ME-SFI [ME] control unit (N3/10) reads in the following signals:

Function sequence for camshaft adjustment

The function sequence is described in the following steps:

Function sequence for release of the camshaft adjustment

Camshaft adjustment is enabled by the ME-SFI [ME] control unit dependent on engine speed and engine oil temperature.

The engine oil temperature is determined by the ME-SFI [ME] control unit using various operating data (e.g. coolant temperature, time, engine load) and a stored temperature model determined.

IMPORTANT The engine oil temperature is important, even when the oil is hot, to ensure that there is sufficient oil pressure (>1.5 bar) for adjusting the camshafts.

Release of adjustment of the exhaust camshafts takes place by means of a comparison to the intake camshafts, at first at a high rotational speed. In this way for exhaust, also at a low oil pressure level, reaching the locking position against the "retard" operating reaction torques of the camshaft are secured. There is a return spring located for support in each camshaft positioner.

If all four camshafts are adjusted, adjustment of the exhaust camshafts takes place after a delay (later). Oil supply problems are prevented and secure functioning of the locking mechanism achieved.

Release of the camshaft adjustment occurs load-dependent:

Function sequence for oil pressure

The engine oil pressure is regulated via the engine oil pump valve (Y130) in order to ensure an adequate oil supply and to lower the oil pressure if necessary (a saving on fuel).

Function sequence for adjustment

The left and right intake camshaft solenoids (Y49/4, Y49/5) and the left and right exhaust camshaft solenoids (Y49/6, Y49/7) are actuated by the ME-SFI [ME] control unit by means of a pulse width modulated signal.

The control plungers are adjusted via the characteristics map-dependent duty cycle. The oil filling quantities (hydraulic fluid) for the camshaft positioners are controlled according to their position. The vane plungers which are firmly connected to the camshafts are thus turned by the hydraulic fluid in the camshaft positioners.

Function sequence for adjustment range

Function sequence for start position

The camshafts are locked in a fixed position for starting by catch bolts (locked). This start position is unlocked hydraulically at the first actuation of the intake camshaft and exhaust camshaft solenoids.

The upper half of the illustration shows:

Filling of oil reservoir galleries (A), oil reservoir galleries (B) open.

The lower half the illustration shows:

Filling of oil reservoir galleries (B), oil reservoir galleries (A) open.

Shown is oil flows in the intake camshaft positioner

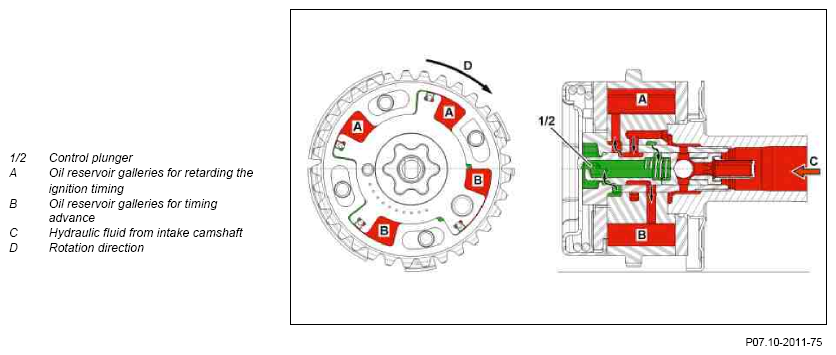

Fig 1: Camshaft Adjustment Function Diagram
G10076398Courtesy of MERCEDES-BENZ USA

Function sequence for valve overlap

At low engine speed and load, the ME-SFI [ME] control unit sets a large valve overlap in order to produce internal exhaust gas recirculation. Less fresh air is admitted, as exhaust gases with low oxygen content are still present in the cylinders. This lowers the combustion temperature and reduces the formation of nitrogen oxides (NOx).

The intake air mass is reduced by the amount of exhaust gases present. The ME-SFI [ME] control unit shortens the injection period accordingly.

The smallest valve overlap for gas exchange occurs if the exhaust camshaft are adjusted to the maximum BTDC (advanced) and the intake camshaft to the maximum after TDC (retarded).

The resulting increased fresh air content produces more engine torque and engine power.

Function sequence for camshaft positions monitoring

The camshafts positions are detected by the intake camshaft Hall sensors and the exhaust camshaft Hall sensors, and communicated to the ME-SFI [ME] control unit. Acquisition of the positions takes place through detection of the positions of pulse wheels which are located at the front on the camshafts.

Function sequence: diagnosis

During diagnosis of the camshaft adjustment, the ME-SFI [ME] control unit checks whether the camshafts are in start position at engine start and whether the requested adjustment has been reached after the engine has been running for a short time. Output stage errors in the camshaft solenoids (integrated with the ME-SFI [ME] control unit) and defective camshaft Hall sensors are also detected.

Shown on intake camshaft adjustment

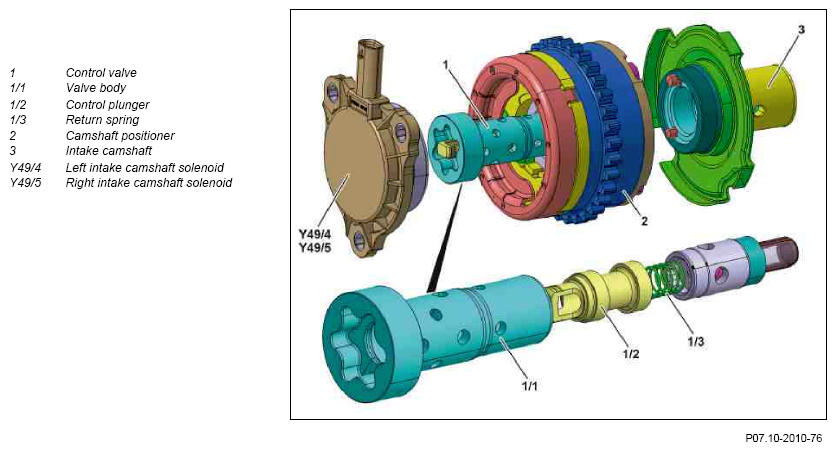

Fig 2: Identifying Intake Camshaft Components
G10076399Courtesy of MERCEDES-BENZ USA

Shown: intake camshaft positioner

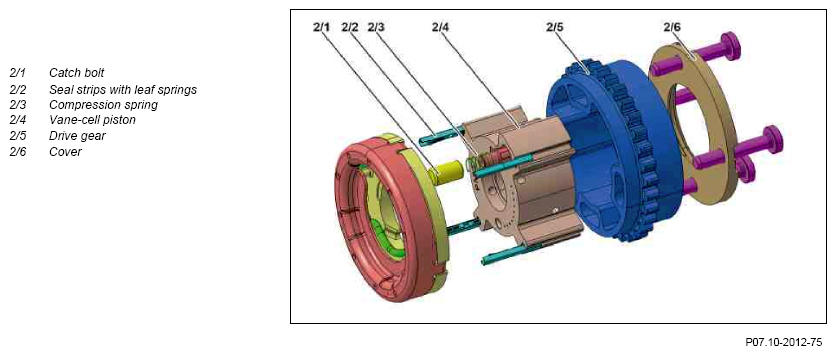

Fig 3: Identifying Intake Camshaft Positioner Components
G10076400Courtesy of MERCEDES-BENZ USA
  Electrical function schematic for camshaft adjustment   PE07.10-P-2716-97NAF
  Overview of system components for gasoline injection and ignition system with direct injection   GF07.70-P-9998MMG
