| A0 |
Color code key |
48L |

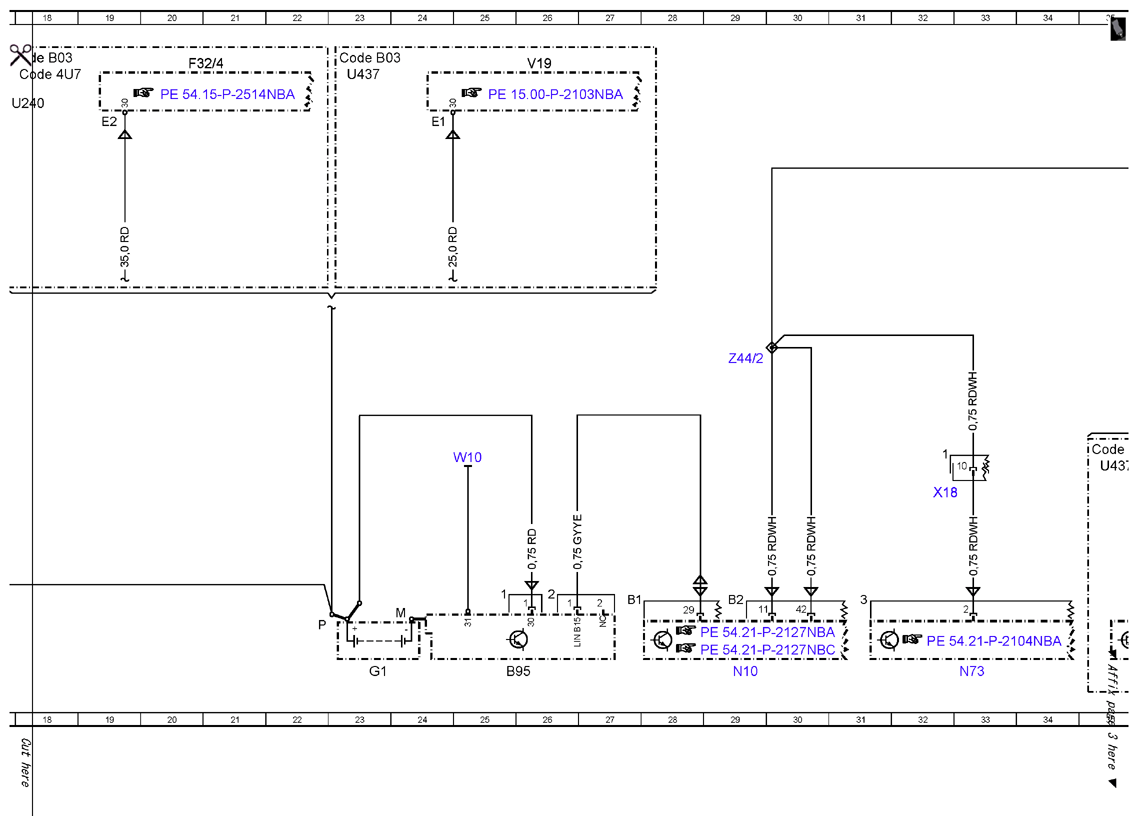

| B95 |
Battery sensor |
25L |
| Code 4U7 |
Start/stop voltage dip protection |
9B |
| Code 4U7 |
Start/stop voltage dip protection |
14A |
| Code 4U7 |
Start/stop voltage dip protection |
18A |
| Code 4U7 |
Start/stop voltage dip protection |
41H |
| Code B03 |
ECO start/stop function |
41G |
| Code B03 |
ECO start/stop function |
35G |
| Code B03 |
ECO start/stop function |
8B |
| Code B03 |
ECO start/stop function |
8B |
| Code B03 |
ECO start/stop function |
14A |
| Code B03 |
ECO start/stop function |
16A |
| Code B03 |
ECO start/stop function |
17A |
| Code B03 |
ECO start/stop function |
23A |
| F270 |
Buffer battery fuse |
41E |
| F32/3 |
Engine compartment prefuse box |
10A |
| F32/4 |
Interior prefuse box |
21A |
| F58 |
Engine compartment fuse and relay module |
11L |
| G1 |
On-board electrical system battery |
23L |

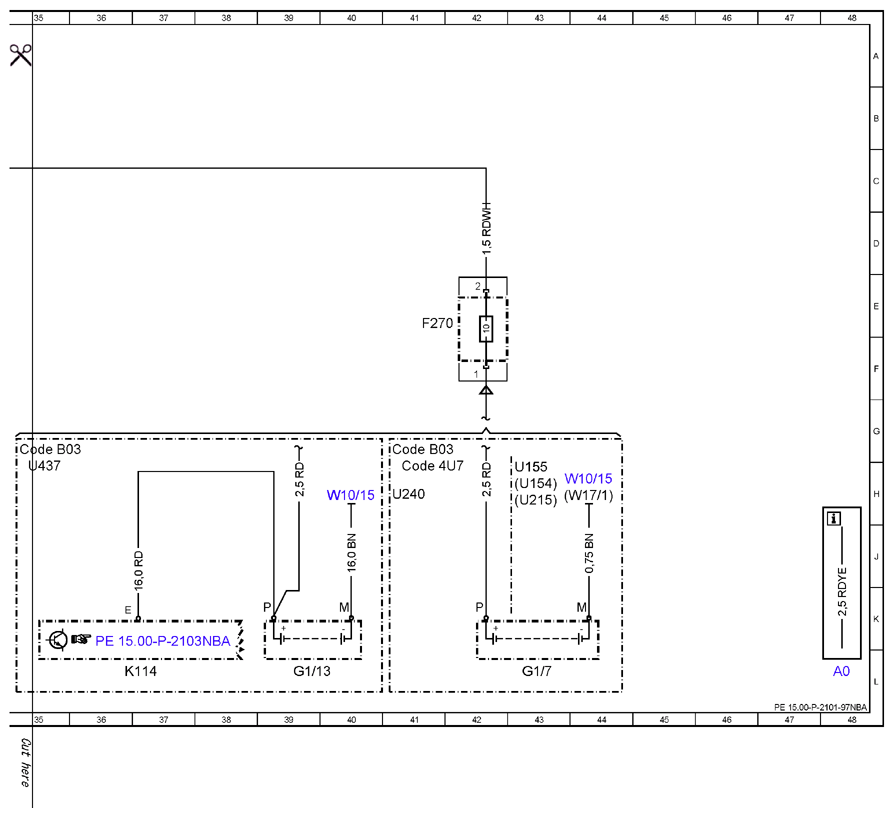

| G1/13 |
ECO start/stop function additional battery |
39L |
| G1/7 |
Additional battery |
43L |

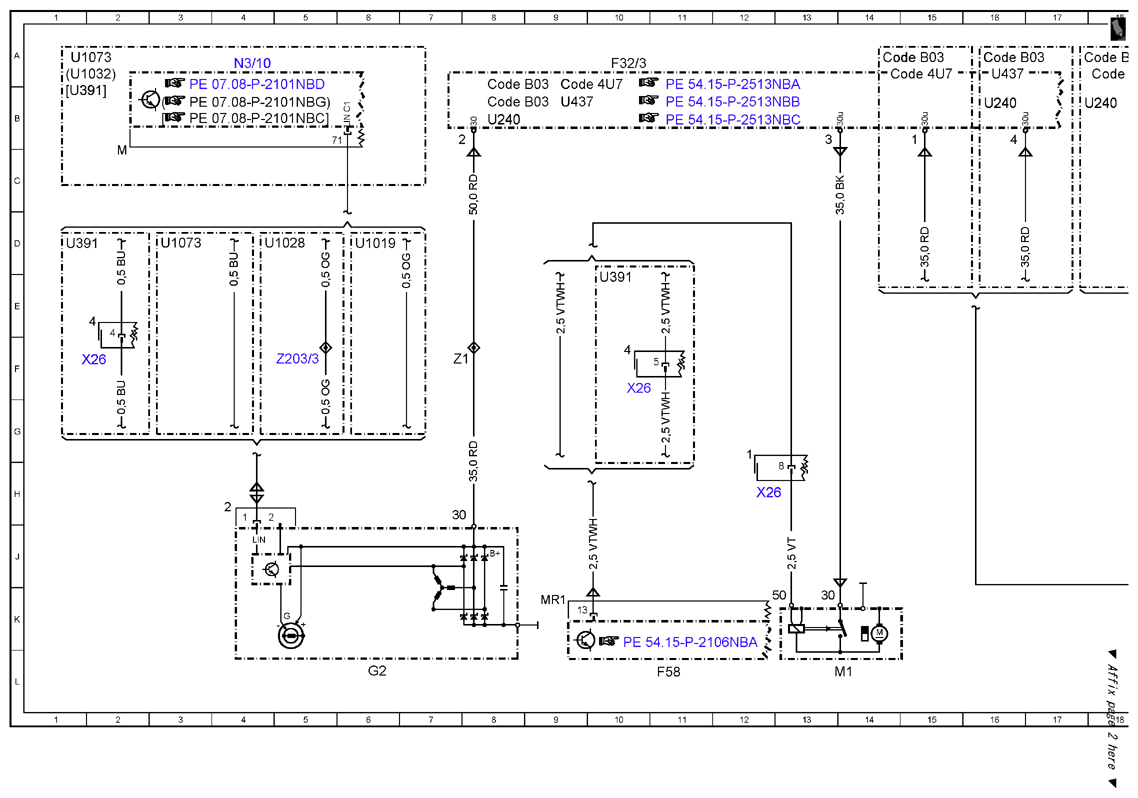

| G2 |
Alternator |
6L |
| K114 |
ECO start/stop function additional battery relay |
37L |
| M1 |
Starter |
14L |
| N10 |
SAM control unit |
29L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| N73 |
Electronic ignition switch control unit |
33L |
| U1019 |
Valid for gasoline engine 278 |
6D |
| U1028 |
Valid for engine 157 |
4D |
| U1032 |
Valid for engine 278 and 157 |
1A |
| U1073 |
Valid for gasoline engine 276.9 |
3D |
| U1073 |
Valid for gasoline engine 276.9 |
1A |
| U154 |
Valid for 166.0 |
43H |
| U155 |
Valid for 166.8 |
43H |
| U215 |
Valid for model series 292 |
43H |
| U240 |
Valid for all except ECO start/stop function |
8B |
| U240 |
Valid for all except ECO start/stop function |
16B |
| U240 |
Valid for all except ECO start/stop function |
17B |
| U240 |
Valid for all except ECO start/stop function |
41H |
| U391 |
Valid for gasoline engine 276.8 |
1D |
| U391 |
Valid for gasoline engine 276.8 |
1B |
| U391 |
Valid for gasoline engine 276.8 |
10E |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
9B |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
16A |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
23A |
| U437 |
Not valid for code 4U7 Start/stop voltage dip protection |
35H |
| V19 |
ECO start/stop function diode |
26A |
| W10 |
Front right on-board electrical system battery ground point |
25G |
| W10/15 |
Additional battery ground point |
44H |
| W10/15 |
Additional battery ground point |
40H |
| W17/1 |
Left rear seat ground point |
44H |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
32H |
| X26 |
Interior and engine wiring harness electrical connector |
2F |
| X26 |
Interior and engine wiring harness electrical connector |
12H |
| X26 |
Interior and engine wiring harness electrical connector |
10F |
| Z1 |
Alternator connector sleeve |
7F |
| Z203/3 |
Alternator LIN signal connector sleeve |
5F |
| Z44/2 |
Buffer battery connector sleeve |
29F |
