Color code key |
48L |
| B76/1 |
Condensation sensor for fuel filter with heating element |
3L |
| B95 |
Battery sensor |
34L |
| Code B03 |
ECO start/stop function |
40G |

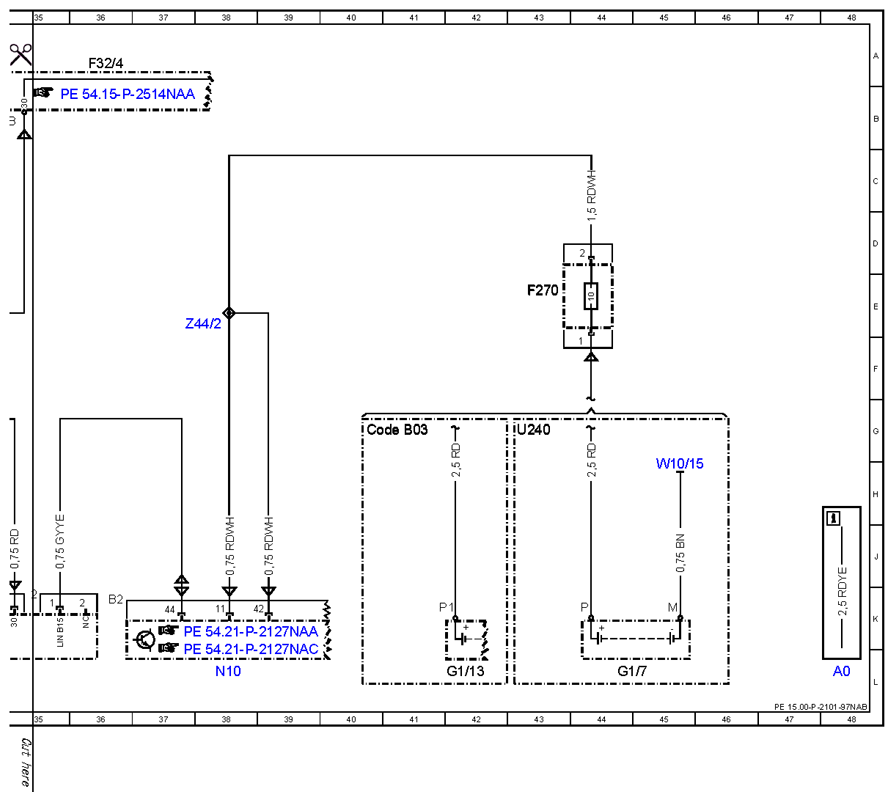

| F270 |
Buffer battery fuse |
43E |
| F32/3 |
Engine compartment prefuse box |
33A |
| F32/4 |
Interior prefuse box |
36A |
| F58 |
Engine compartment fuse and relay module |
16L |
| F58f215 |
Fuse 215 |
14L |
| F58f217 |
Fuse 217 |
16L |
| G1 |
On-board electrical system battery |
32L |
| G1/13 |
ECO start/stop function additional battery |
42L |
| G1/7 |
Additional battery |
44L |
| G2 |
Alternator |
26L |
| M1 |
Starter |
23L |
| N10 |
SAM control unit |
38L |

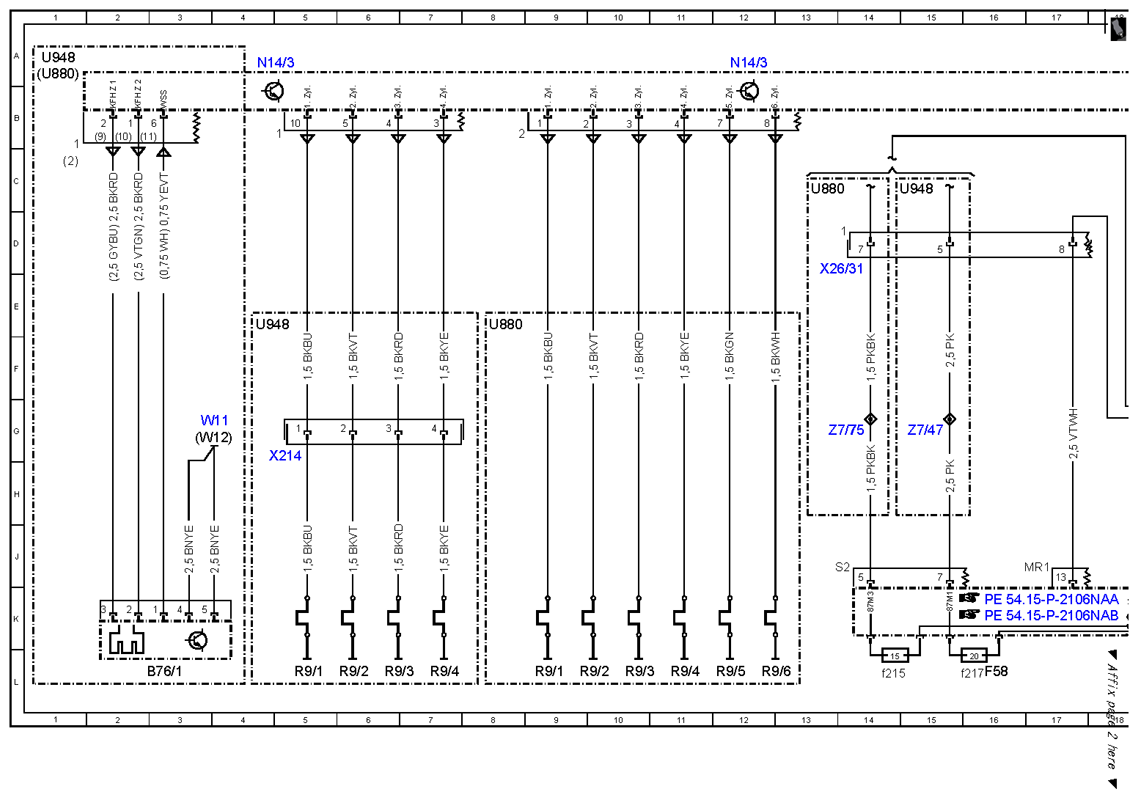

| N14/3 |
Glow output stage |
4A |
| N14/3 |
Glow output stage |
12A |
| N14/3 |
Glow output stage |
21A |

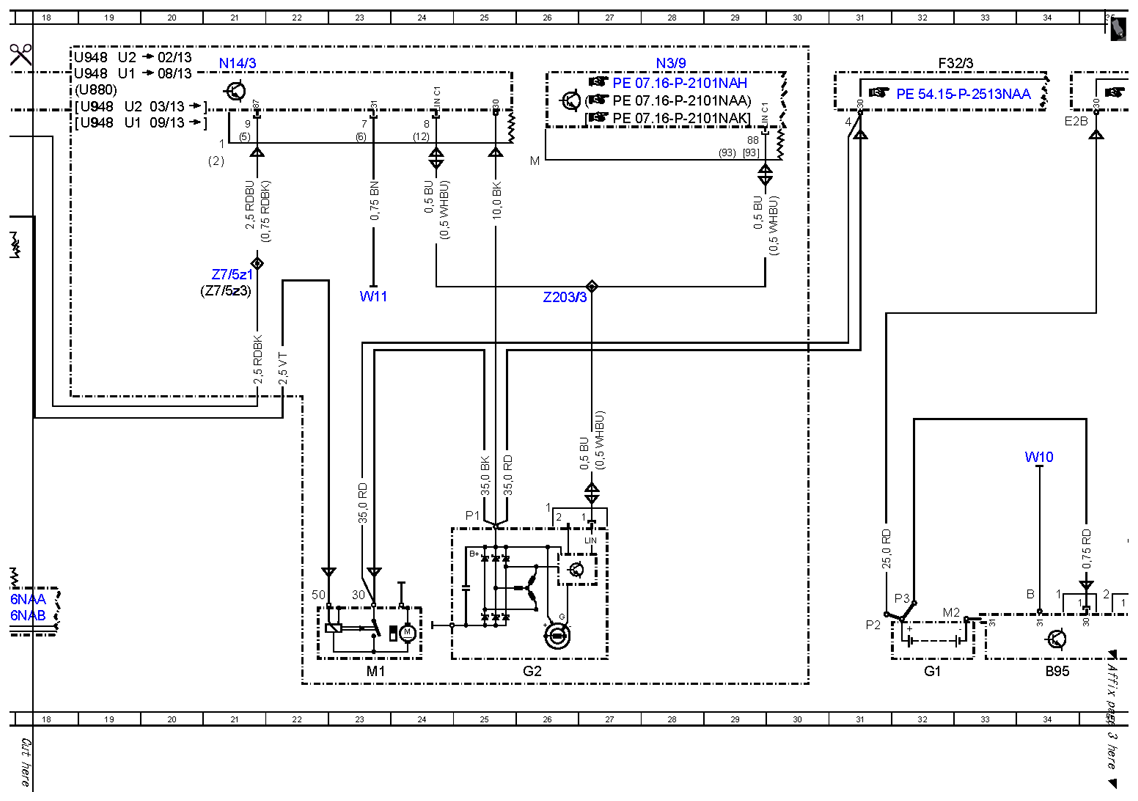

| N3/9 |
CDI control unit |
28A |
| R9/1 |
Cylinder 1 glow plug |
5L |
| R9/1 |
Cylinder 1 glow plug |
9L |
| R9/2 |
Cylinder 2 glow plug |
6L |
| R9/2 |
Cylinder 2 glow plug |
9L |
| R9/3 |
Cylinder 3 glow plug |
6L |
| R9/3 |
Cylinder 3 glow plug |
10L |
| R9/4 |
Cylinder 4 glow plug |
7L |
| R9/4 |
Cylinder 4 glow plug |
11L |
| R9/5 |
Cylinder 5 glow plug |
12L |
| R9/6 |
Cylinder 6 glow plug |
12L |
| U1 |
Valid for USA |
19B |
| U1 |
Valid for USA |
19A |
| U2 |
Valid for all except USA |
19B |
| U2 |
Valid for all except USA |
19A |
| U240 |
Valid for all except ECO start/stop function |
43G |
| U880 |
Valid for engine 642 |
8E |
| U880 |
Valid for engine 642 |
1A |
| U880 |
Valid for engine 642 |
13C |
| U880 |
Valid for engine 642 |
18B |
| U948 |
Valid for diesel engine 651 |
4E |
| U948 |
Valid for diesel engine 651 |
1A |
| U948 |
Valid for diesel engine 651 |
14C |
| U948 |
Valid for diesel engine 651 |
19B |
| U948 |
Valid for diesel engine 651 |
19B |
| U948 |
Valid for diesel engine 651 |
18A |
| U948 |
Valid for diesel engine 651 |
18A |
| W10 |
Front right on-board electrical system battery ground point |
34G |
| W10/15 |
Additional battery ground point |
45H |
| W11 |
Combustion engine ground point |
3G |
| W11 |
Combustion engine ground point |
23E |
| W12 |
Ground point (center console) |
3G |
| X214 |
Glow plug electrical connector |
5G |
| X26/31 |
Engine/engine compartment electrical connector |
14D |
| Z203/3 |
Alternator LIN signal connector sleeve |
26E |
| Z44/2 |
Buffer battery connector sleeve |
38E |
| Z7/47 |
Circuit 87D1 connector sleeve |
15G |
| Z7/5z1 |
Circuit 87 connector sleeve |
21E |
| Z7/5z3 |
Circuit 87 connector sleeve |
21E |
| Z7/75 |
Circuit 87 D3 connector sleeve |
14G |
