| A0 |
Color code key |
32L |

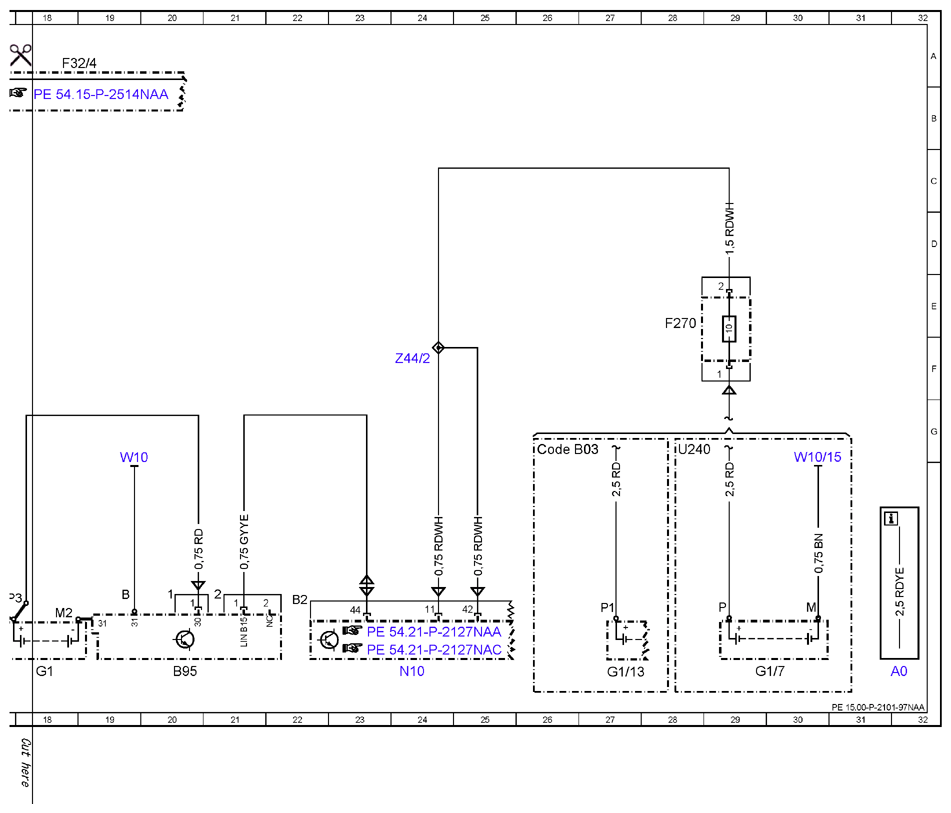

| B95 |
Battery sensor |
20L |
| Code B03 |
ECO start/stop function |
26G |
| F270 |
Buffer battery fuse |
28E |
| F32/3 |
Engine compartment prefuse box |
9A |
| F32/4 |
Interior prefuse box |
19A |
| F58 |
Engine compartment fuse and relay module |
11L |

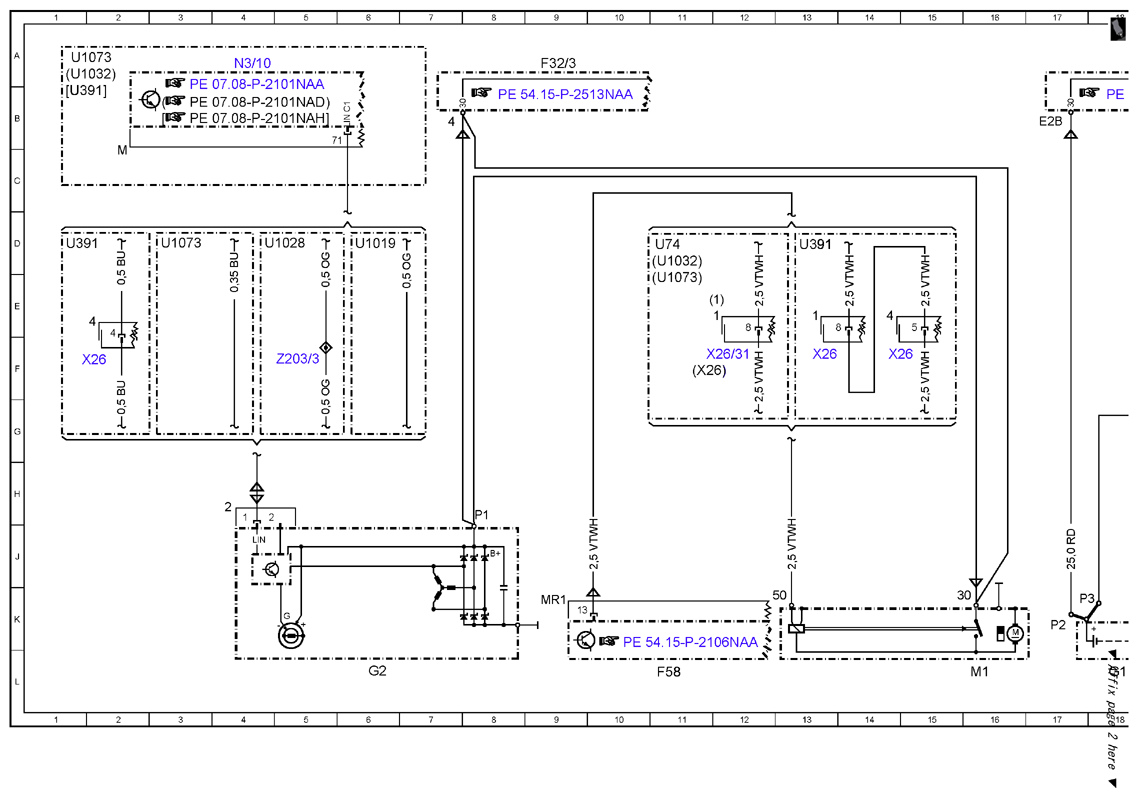

| G1 |
On-board electrical system battery |
18L |
| G1/13 |
ECO start/stop function additional battery |
27L |
| G1/7 |
Additional battery |
29L |
| G2 |
Alternator |
6L |
| M1 |
Starter |
16L |
| N10 |
SAM control unit |
24L |
| N3/10 |
ME-SFI [ME] control unit |
4A |
| U1019 |
Valid for gasoline engine 278 |
6D |
| U1028 |
Valid for engine 157 |
4D |
| U1032 |
Valid for engine 278 and 157 |
1A |
| U1032 |
Valid for engine 278 and 157 |
11D |
| U1073 |
Valid for gasoline engine 276.9 |
3D |
| U1073 |
Valid for gasoline engine 276.9 |
1A |
| U1073 |
Valid for gasoline engine 276.9 |
11E |
| U240 |
Valid for all except ECO start/stop function |
28G |
| U391 |
Valid for gasoline engine 276.8 |
1D |
| U391 |
Valid for gasoline engine 276.8 |
1B |
| U391 |
Valid for gasoline engine 276.8 |
13D |
| U74 |
Valid for diesel engines |
11D |
| W10 |
Front right on-board electrical system battery ground point |
19G |
| W10/15 |
Additional battery ground point |
30G |
| X26 |
Interior and engine wiring harness electrical connector |
2F |
| X26 |
Interior and engine wiring harness electrical connector |
11F |
| X26 |
Interior and engine wiring harness electrical connector |
13F |
| X26 |
Interior and engine wiring harness electrical connector |
15F |
| X26/31 |
Engine/engine compartment electrical connector |
12F |
| Z203/3 |
Alternator LIN signal connector sleeve |
5F |
| Z44/2 |
Buffer battery connector sleeve |
24F |
