Remove/install oil supply connection fitting of turbocharger - AR09.40-P-6023OGR
ENGINE 642 in MODEL 166
MODIFICATION NOTES
| 20.12.11 | Value altered: screw/bolt, oil supply connection fitting to cylinder crankcase | BA09.40-P-1008-01K |
| 29.2.12 | Value altered: screw/bolt, oil supply connection fitting to cylinder crankcase | BA09.40-P-1008-01K |
| Remove/install | |||
| 1 | Remove turbocharger | AR09.40-P-6020OGR | |

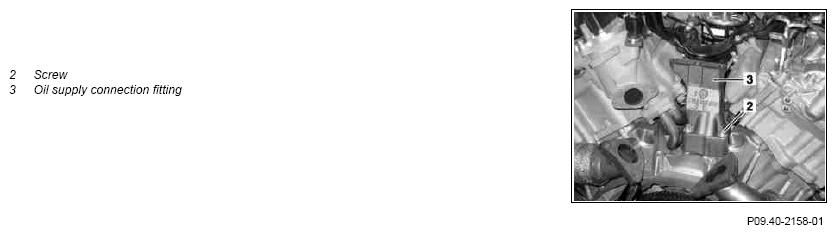

| 2 | Remove screw/bolts (2) from oil supply connection fitting (3) on cylinder crankcase | *BA09.40-P-1008-01K | |
| 3 | Remove oil supply connection fitting (3) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check/correct engine oil level | AR18.00-P-3035-01SXI | |
This prevents measurement errors. |
|||
ENGINE 642.826 with CODE 474 (Particulate trap) |
*BF18.00-P-1001-01S | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Check for leaks with engine running |
TURBOCHARGER
| Number | Designation | ENGINE 642 | |
|---|---|---|---|
| BA09.40-P-1008-01K | Screw/bolt, oil supply connection fitting to cylinder crankcase | Nm | 20 |
ENGINE LUBRICATION SYSTEM
| Number | Designation | ENGINE 642.826/830/832/834/835/836/838/850/85 2/853/854/856/858/861/862/867/868 with CODE 474 (Particulate trap) | ||
|---|---|---|---|---|
| BF18.00-P-1001-01S | Engine oil | Filling capacity (oil and filter change) | Liter | 8, 0 |
| Specification | Low SPAsh multigrade service engine oils (specification 228.51). | |||
| Specification | Low SPAsh multigrade service engine oils (specification 229.31). | |||
| Specification | Low SPAsh multigrade service engine oils (specification 229.51). | |||
| Specification | Low SPAsh multigrade service engine oils (specification 229.52). | |||
