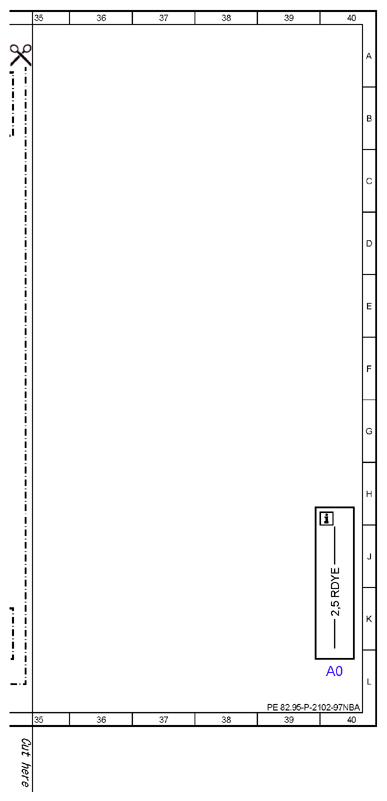

| A0 |
Color code key |
40L |
| A2 |
Radio |
30L |
| A40/3 |
COMAND control unit |
30L |
| CAN D |
Diagnostic CAN |
8K |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
27J |
| Code 522 |
Audio 20 radio |
27J |
| Code 531 |
COMAND APS |
27J |
| Code 810 |
Sound system |
16F |
| Code 811 |
Extended sound system |
22F |
| Code E64 |
|
1A |
| F33 |
Battery compartment prefuse box |
4L |
| F33f50 |
Fuse 50 |
3K |
| G1/20 |
E-Call Russia (GLONASS) backup battery |
34L |

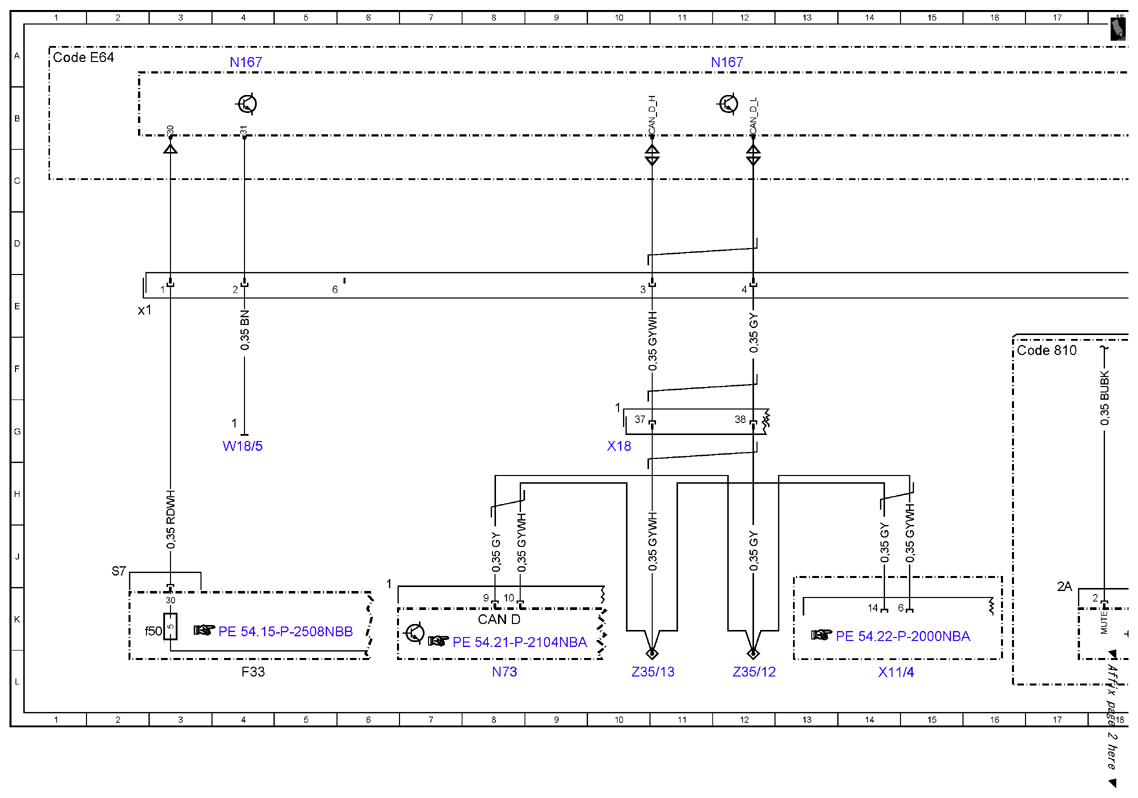

| N167 |
E-Call Russia (GLONASS) control unit |
4A |
| N167 |
E-Call Russia (GLONASS) control unit |
28A |
| N167 |
E-Call Russia (GLONASS) control unit |
34A |
| N167 |
E-Call Russia (GLONASS) control unit |
12A |
| N167 |
E-Call Russia (GLONASS) control unit |
20A |
| N167x1 |
E-Call Russia (GLONASS) control unit electrical connector 1 |
2E |
| N167x2 |
E-Call Russia (GLONASS) control unit electrical connector 2 |
33G |

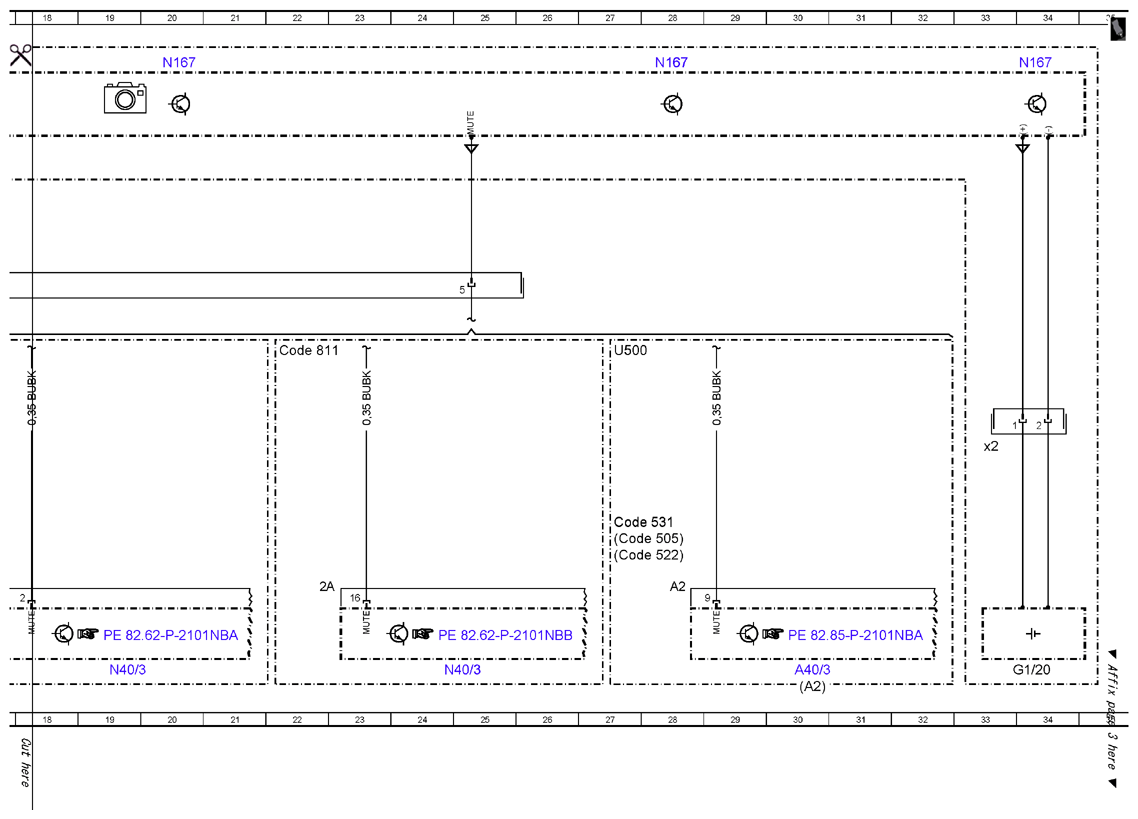

| N40/3 |
Sound system amplifier control unit |
19L |
| N40/3 |
Sound system amplifier control unit |
25L |
| N73 |
Electronic ignition switch control unit |
8L |
| U500 |
Not valid for sound system |
27F |
| W18/5 |
Roof ground point |
4G |
| X11/4 |
Diagnostic connector |
14L |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
10G |
| Z35/12 |
Diagnostic CAN low connector sleeve |
12L |
| Z35/13 |
Diagnostic CAN high connector sleeve |
10L |
