| A0 |
Color code key |
32L |
| A2 |
Radio |
22L |

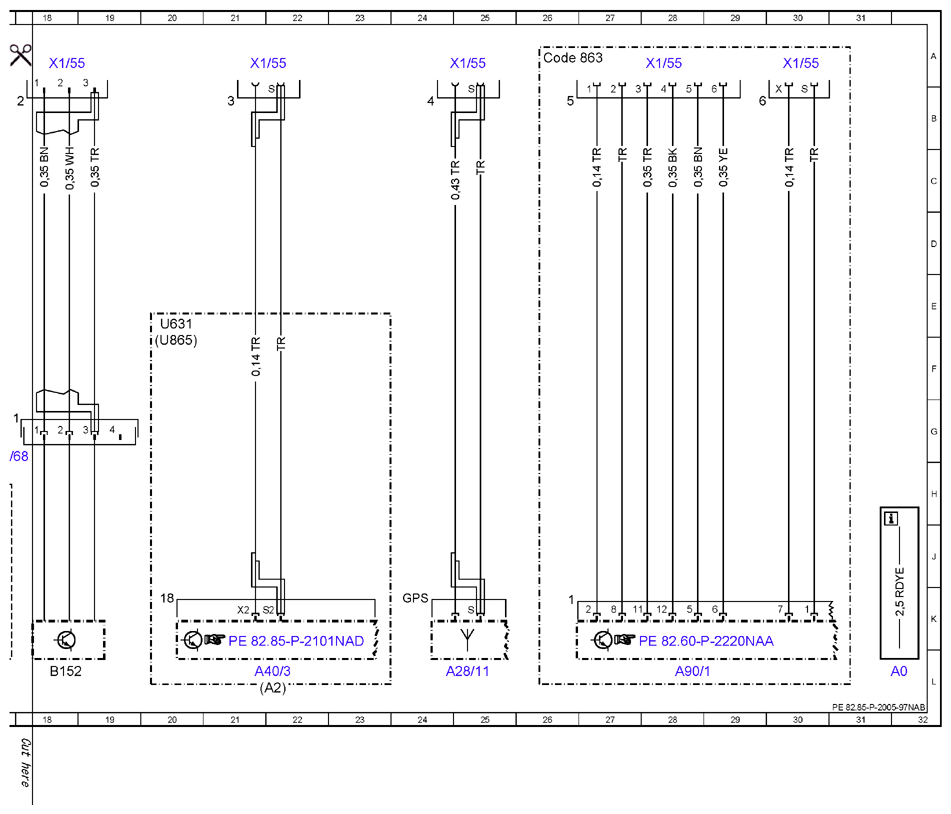

| A28/11 |
Multifunction antenna |
25L |
| A40/3 |
COMAND control unit |
21L |
| A90/1 |
TV tuner (analog/digital) |
28L |
| B152 |
Navigation remote control infrared receiver |
18L |
| Code 301 |
Ashtray in place of stowage compartment with flap and power outlet |
15H |
| Code 863 |
Digital/analog TV tuner |
26A |

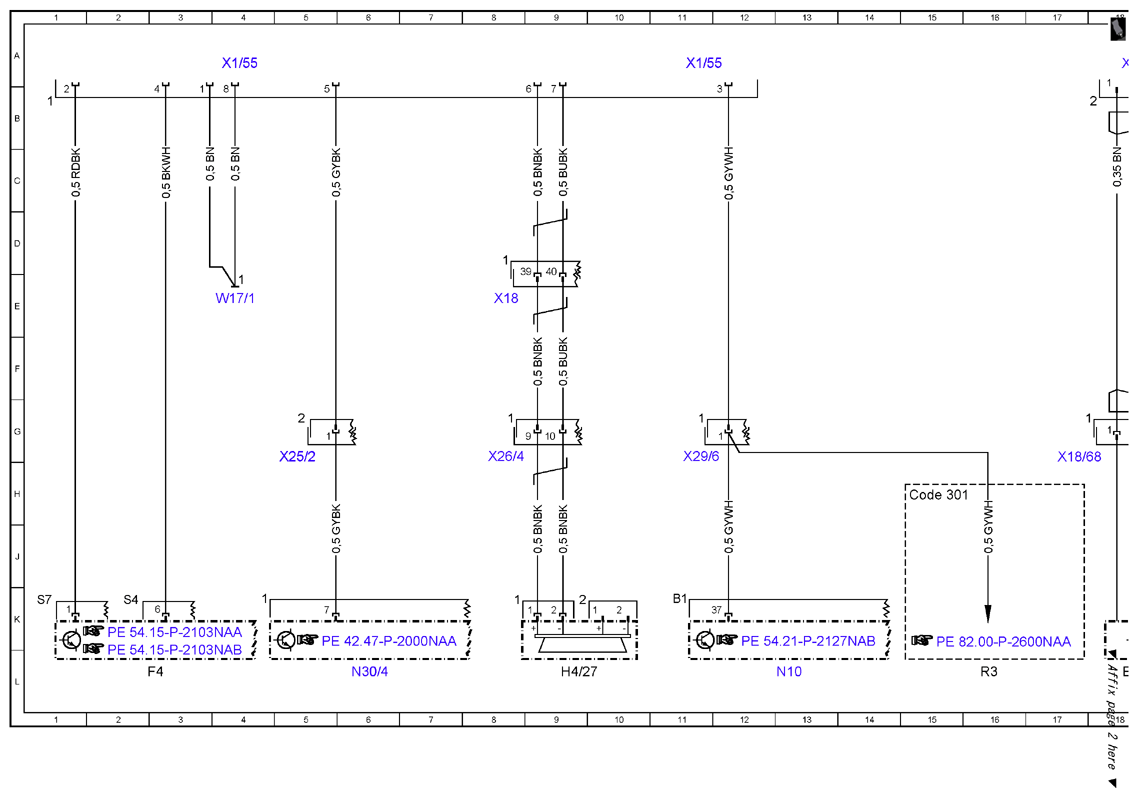

| F4 |
Rear fuse box |
3L |
| H4/27 |
Center instrument panel speaker |
9L |
| N10 |
SAM control unit |
13L |
| N30/4 |
Electronic Stability Program control unit |
6L |
| R3 |
Front cigarette lighter with ashtray illumination |
16L |
| U631 |
Valid for COMAND |
20E |
| U865 |
Valid for Audio 20 |
20F |
| W17/1 |
Left rear seat ground point |
4E |
| X1/55 |
External navigation electrical connector |
4A |
| X1/55 |
External navigation electrical connector |
11A |
| X1/55 |
External navigation electrical connector |
21A |
| X1/55 |
External navigation electrical connector |
18A |
| X1/55 |
External navigation electrical connector |
25A |
| X1/55 |
External navigation electrical connector |
28A |
| X1/55 |
External navigation electrical connector |
30A |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
8E |
| X18/68 |
External navigation infrared receiver electrical connector |
17G |
| X25/2 |
Engine compartment/vehicle interior electrical connector |
5G |
| X26/4 |
Cockpit adapter wiring harness electrical connector |
8G |
| X29/6 |
Center console electrical connector |
11G |
