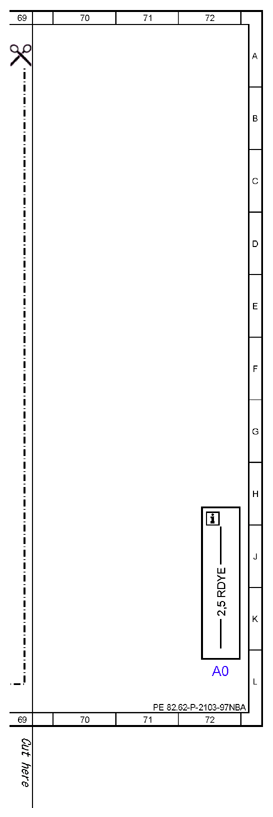

| A0 |
Color code key |
72L |
| A2 |
Radio |
16L |
| A2 |
Radio |
23L |
| A2 |
Radio |
64L |

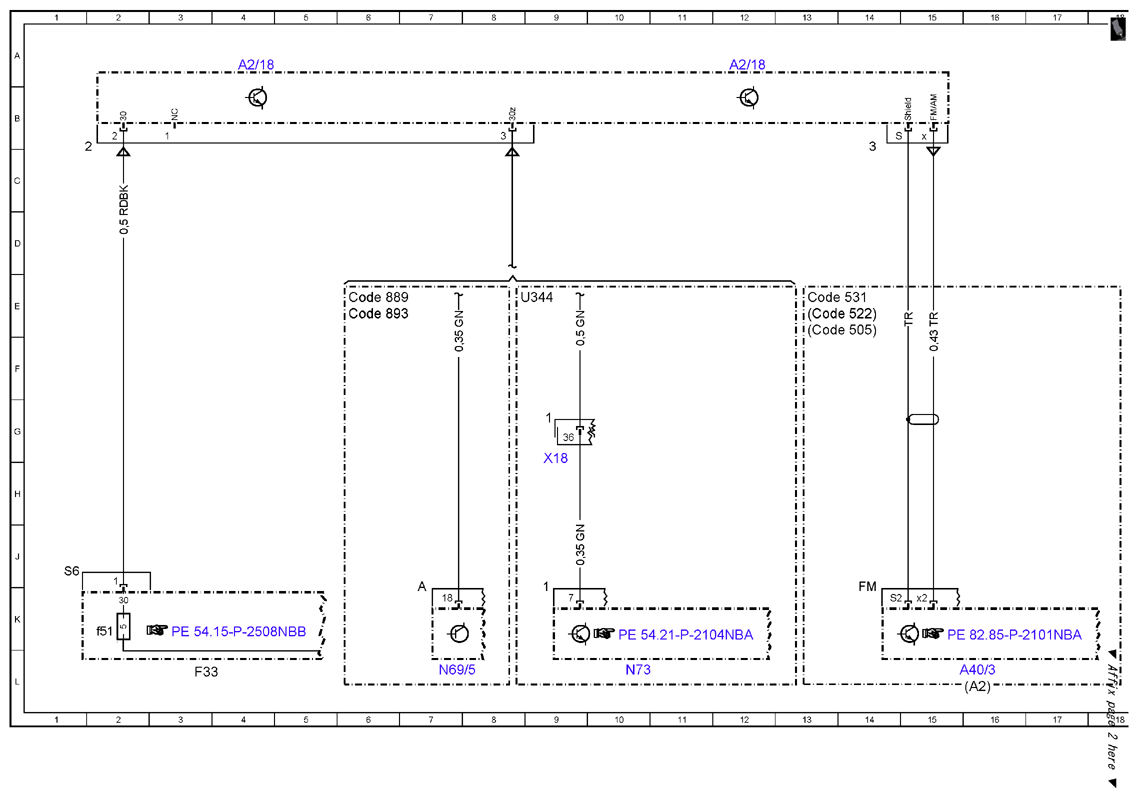

| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
4A |
| A2/18 |
FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier |
12A |

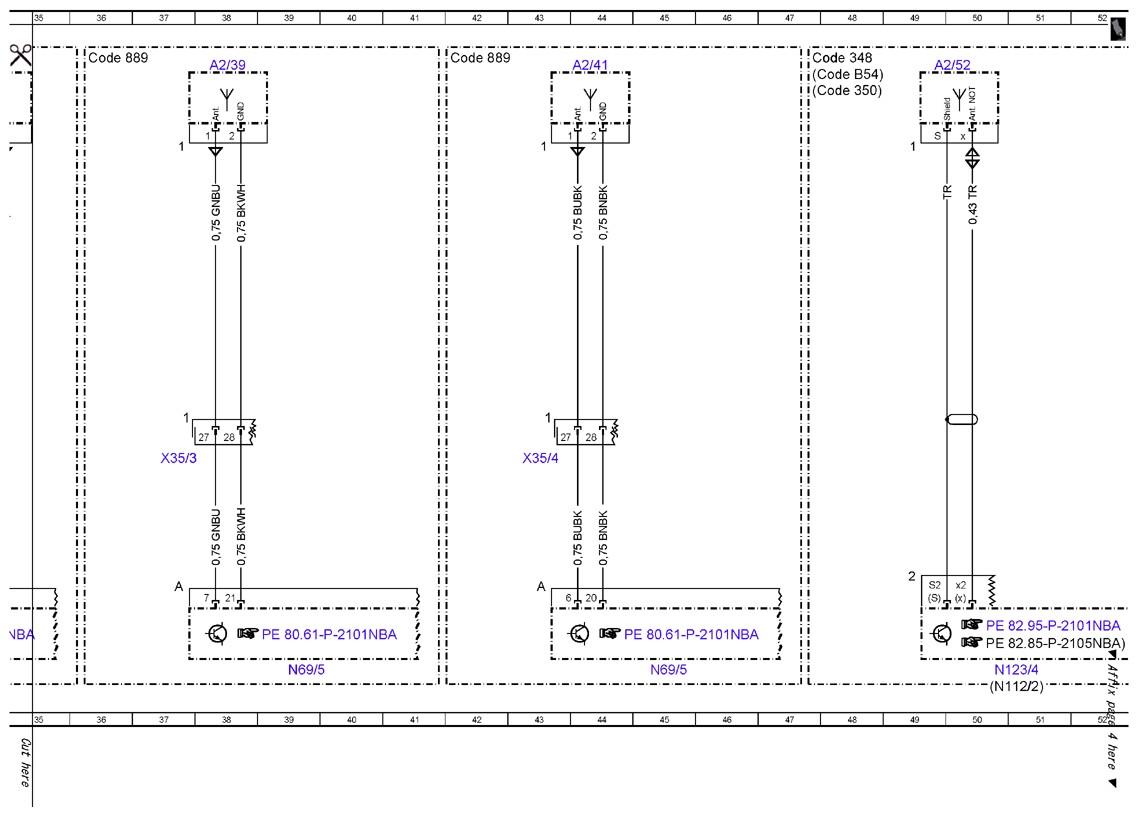

| A2/39 |
Left rear door KEYLESS GO antenna |
38A |
| A2/41 |
Right rear door KEYLESS GO antenna |
44A |

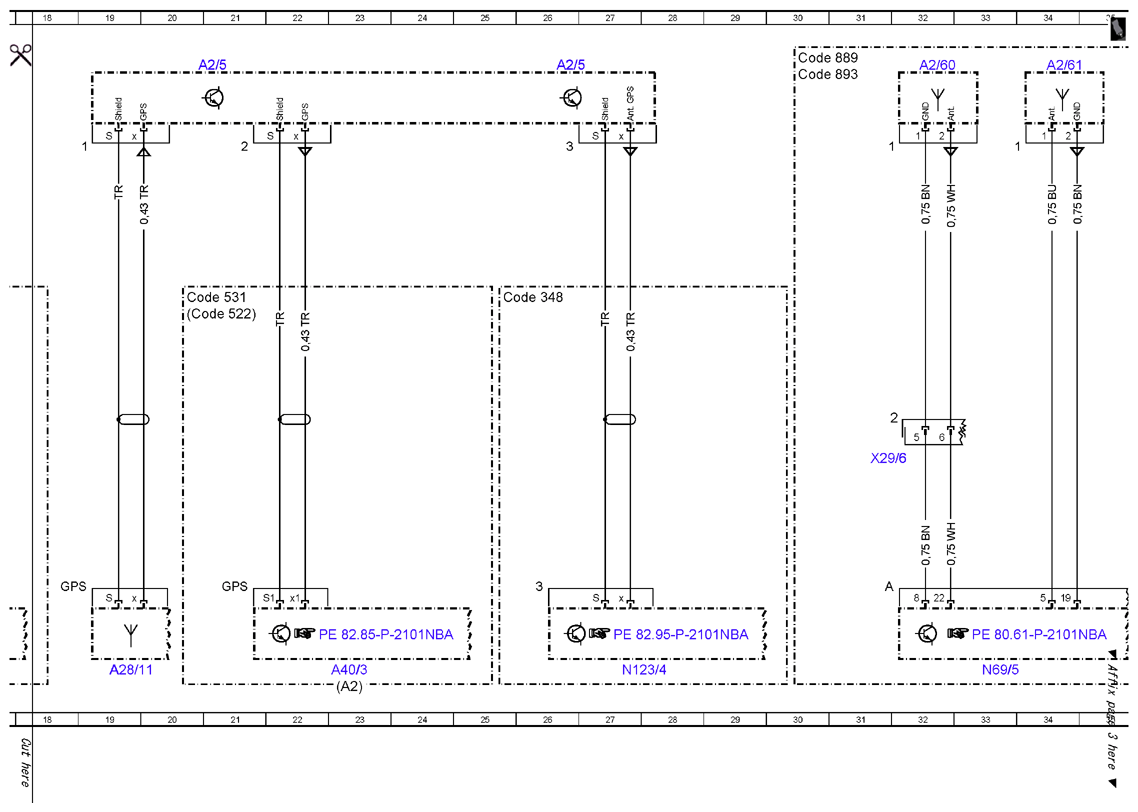

| A2/5 |
Global positioning system antenna splitter |
21A |
| A2/5 |
Global positioning system antenna splitter |
26A |
| A2/52 |
Emergency call system antenna |
49A |
| A2/60 |
Center console KEYLESS-GO antenna |
32A |
| A2/61 |
Vehicle interior KEYLESS GO antenna |
34A |
| A28/11 |
Multifunction antenna |
19L |
| A28/11 |
Multifunction antenna |
68L |

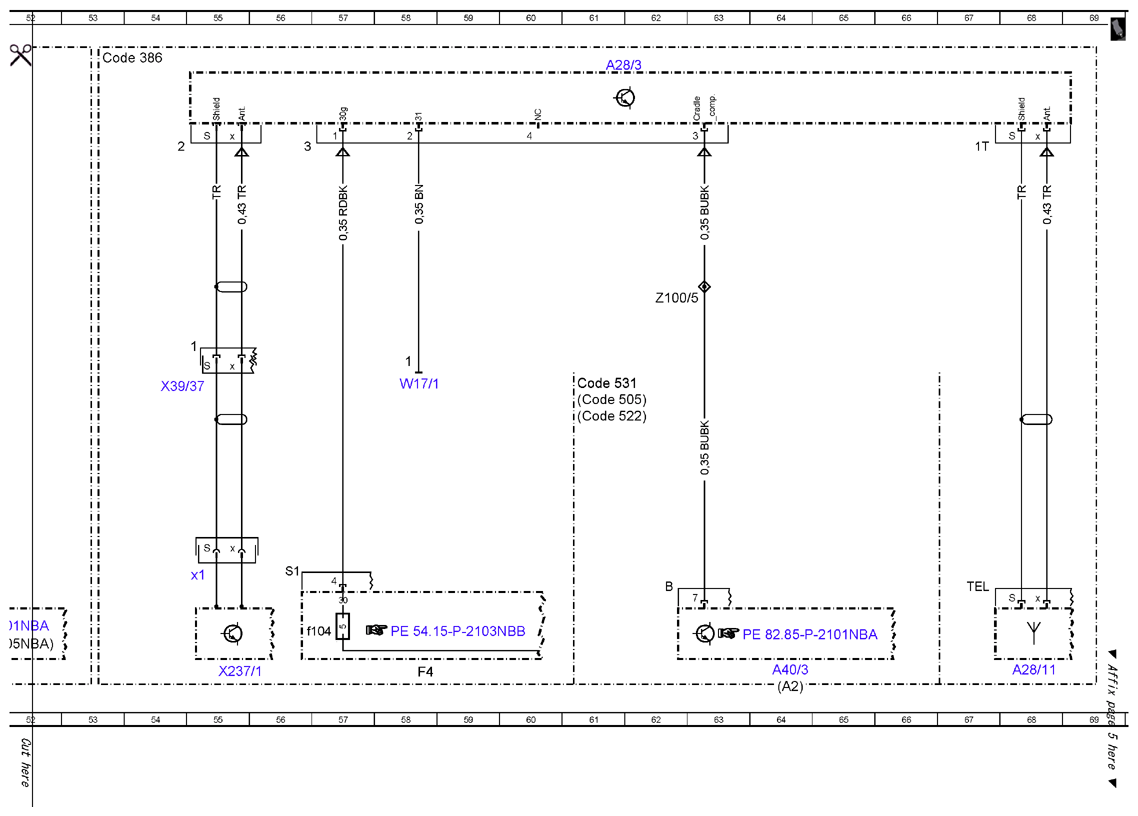

| A28/3 |
Cellular telephone system antenna amplifier/compensator |
61A |
| A40/3 |
COMAND control unit |
16L |
| A40/3 |
COMAND control unit |
23L |
| A40/3 |
COMAND control unit |
64L |
| Code 348 |
Emergency call/assistance system |
47A |
| Code 348 |
Emergency call/assistance system |
25E |
| Code 350 |
E-call emergency call system Europe Generation 2 |
47B |
| Code 386 |
Comfort telephony |
53A |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
13E |
| Code 505 |
Radio 20 NTG5, non-navigation-capable |
61G |
| Code 522 |
Audio 20 radio |
13E |
| Code 522 |
Audio 20 radio |
20E |
| Code 522 |
Audio 20 radio |
61G |
| Code 531 |
COMAND APS |
13E |
| Code 531 |
COMAND APS |
20E |
| Code 531 |
COMAND APS |
61F |
| Code 889 |
KEYLESS-GO |
6E |
| Code 889 |
KEYLESS-GO |
30A |
| Code 889 |
KEYLESS-GO |
36A |
| Code 889 |
KEYLESS-GO |
42A |
| Code 893 |
KEYLESS-GO start function |
6E |
| Code 893 |
KEYLESS-GO start function |
30A |
| Code B54 |
Live Traffic Information |
47A |
| F33 |
Battery compartment prefuse box |
3L |
| F33f51 |
Fuse 51 |
2K |
| F4 |
Rear fuse box |
58L |
| F4f104 |
Fuse 104 |
57K |
| N112/2 |
Telematics services communication module |
50L |
| N123/4 |
Emergency call system control unit |
27L |
| N123/4 |
Emergency call system control unit |
50L |
| N69/5 |
KEYLESS-GO control unit |
7L |
| N69/5 |
KEYLESS-GO control unit |
33L |
| N69/5 |
KEYLESS-GO control unit |
39L |
| N69/5 |
KEYLESS-GO control unit |
45L |
| N73 |
Electronic ignition switch control unit |
10L |
| U344 |
Valid for all except KEYLESS GO |
8E |
| W17/1 |
Left rear seat ground point |
58F |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
9H |
| X237/1 |
Mobile phone contact plate |
55L |
| X237/1x1 |
Mobile phone contact plate electrical connection |
55J |
| X29/6 |
Center console electrical connector |
31H |
| X35/3 |
Left rear door electrical connector |
37H |
| X35/4 |
Right rear door electrical connector |
43H |
| X39/37 |
Mobile phone electrical connector |
54F |
| Z100/5 |
Wake-up signal connector sleeve 2 |
62E |
